altlvds_rx

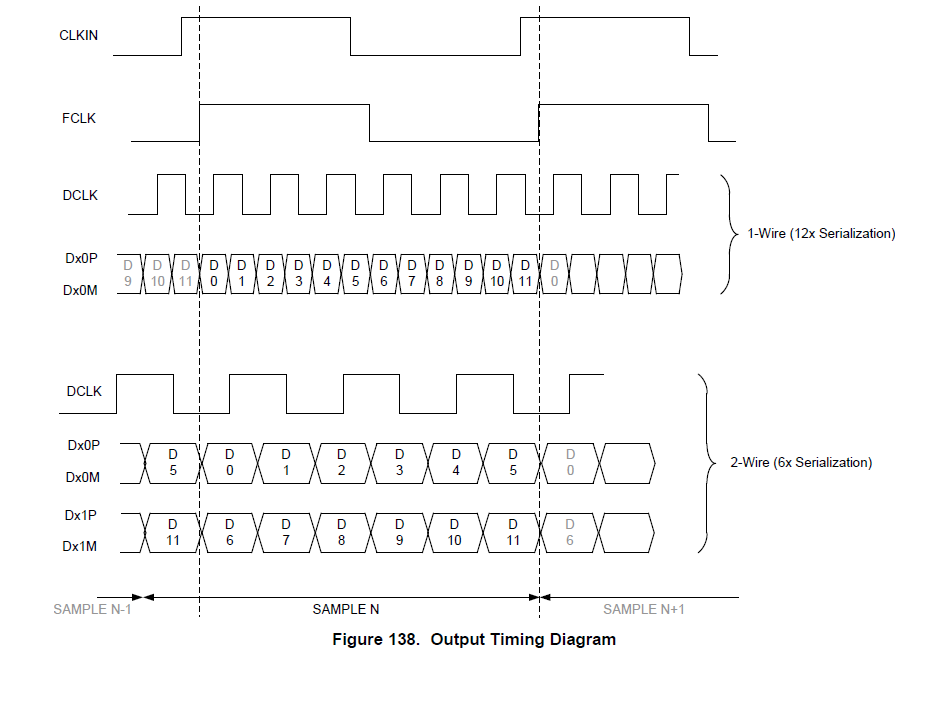

How to make sure data is aligned with fclk when using altlvds_rx ip?

Ash_R_Intel
3 years ago
Hi,

Please refer the ALTLVDS user guide section 1.3.2: https://www.intel.com/content/www/us/en/docs/programmable/683062/17-1/lvds-serdes-transmitter-receiver-ip-36681.html

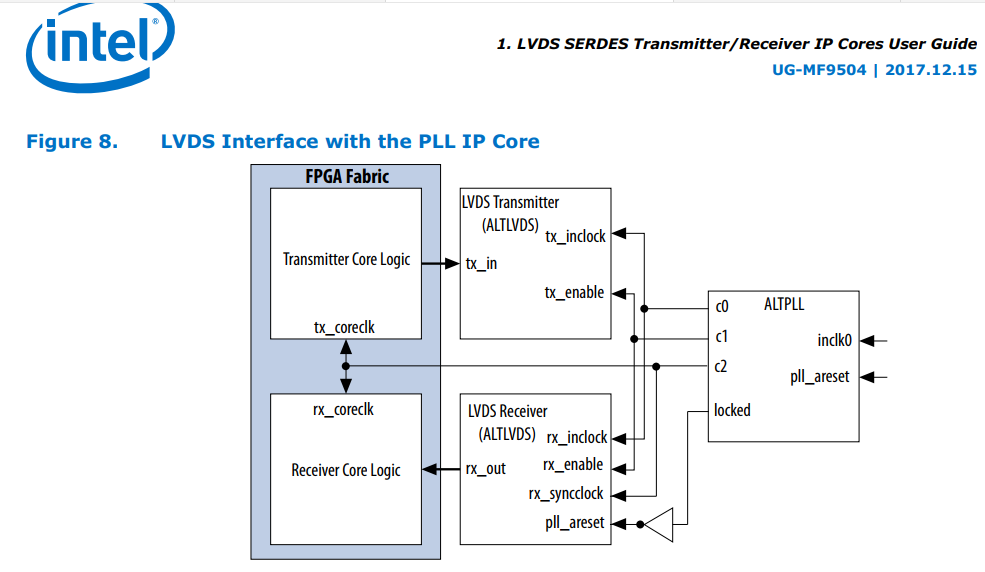

In external PLL mode rx_coreclock can be used in the fabric logic to further process the data. In this mode, rx_coreclock is same as the rx_syncclock which is an input to the ALTLVDS_RX.

rx_syncclock is used to receive the parallel data.

Regards

5 Replies

Ash_R_Intel
Regular Contributor
3 years ago
Hi,
Can you please tell which device IP are you using?

Regards
- XQSHEN
  Occasional Contributor
  3 years ago
  EP4CE22U14A7N
Ash_R_Intel
Regular Contributor
3 years ago
Hi,
The ALTLVDS IP has rx_coreclock signal. You can connect the fabric clock to it.

Regards
XQSHEN
Occasional Contributor
3 years ago
where is this signal, rx_coreclock ?
Ash_R_Intel
Regular Contributor
3 years ago
Hi,

Please refer the ALTLVDS user guide section 1.3.2: https://www.intel.com/content/www/us/en/docs/programmable/683062/17-1/lvds-serdes-transmitter-receiver-ip-36681.html

In external PLL mode rx_coreclock can be used in the fabric logic to further process the data. In this mode, rx_coreclock is same as the rx_syncclock which is an input to the ALTLVDS_RX.

rx_syncclock is used to receive the parallel data.

Regards
