Altera PLL is not working

Hi, I'm trying to implement the Altera PLL from the IP catalog and no matter what I do- this simple cure is not working! (outclk_0 is constantly red signal in ModelSim). I'm working with Quart...
AnandRaj_S_Intel's avatar
AnandRaj_S_Intel
Icon for Regular Contributor rankRegular Contributor
6 years ago

Hi Idan,

Are you using just PLL IP stand-alone or initiating PLL IP on top-level HDL for simulation? Check the connectivity of the ports or pins.

Try after deleting the work folder from the simulation directory.

Attached some images.

Regards

Anand

  • IOzan's avatar
    IOzan
    Icon for Occasional Contributor rankOccasional Contributor
    6 years ago

    And the complete code that is not working (PLL output is all red (U)).

    What can I do to make it work?

    Can you try to run the code in your Quartus and ModelSim versions?

    Thanks,

    Idan

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi Idan,

    Your design looks good, You have to recheck the simulation steps. Please read msim_setup.tcl(Simple_counter_PLLC\Filter_PLL_C_sim\mentor) file which will help in simulation step if you have top level file.

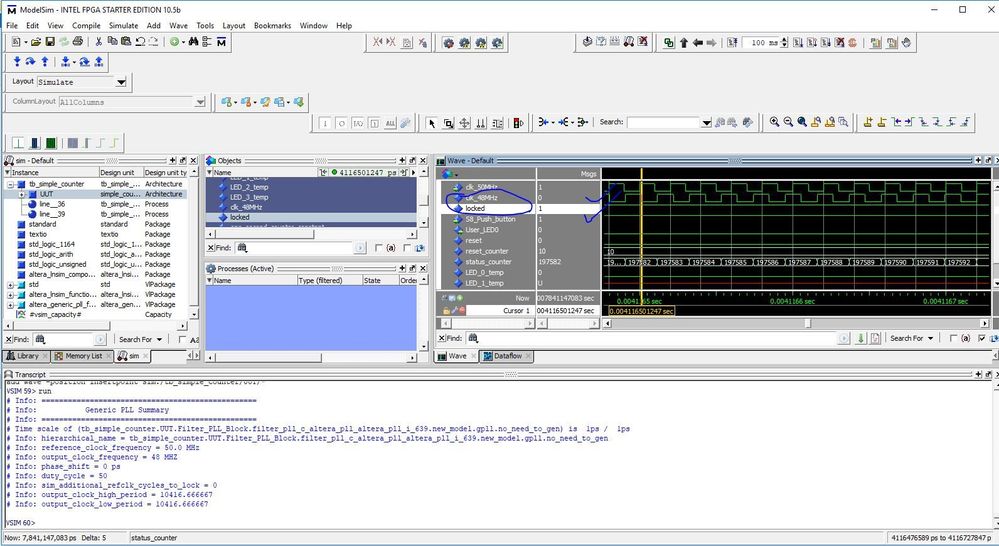

    I have attached the modelsim transcript and image. save below code as mentor.do and run

    set QSYS_SIMDIR C:/<Directory>/Simple_counter_PLLC/Filter_PLL_C_sim
source $QSYS_SIMDIR/mentor/msim_setup.tcl

dev_com
set TOP_LEVEL_NAME tb_Simple_counter
elab

    Regards

    Anand
