where can find the user guide of "Avalon-MM Clock Crossing Bridge IP" in Quartus 19.2 ?

Hello,

I check customer PCIE AVMM DMA design , and find an "Avalon-MM Clock Crossing Bridge" module inside. BUt from PLatform Designer, I don't find the IP 's user guide ?

Where can I find ?

Thanks

4 Replies

  • RichardT_altera's avatar
    RichardT_altera
    Icon for Super Contributor rankSuper Contributor
    6 years ago

    Bridges are used to control the topology of a Qsys system. The Avalon-MM Clock Crossing Bridge transfers Avalon-MM commands and responses between different clock domains. You can also use the Avalon-MM Clock Crossing Bridge to bridge between AXI masters and slaves of different clock domains. You can refer to the link below for more information.

    Reference: https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/ug/ug-qps-platform-designer.pdf#page=212

    p.s. Don’t forget to Reply, and Select the Best Answer. :)

  • JET60200's avatar
    JET60200
    Icon for Contributor rankContributor
    6 years ago

    Hi @ShyanYewT_Intel​ ,

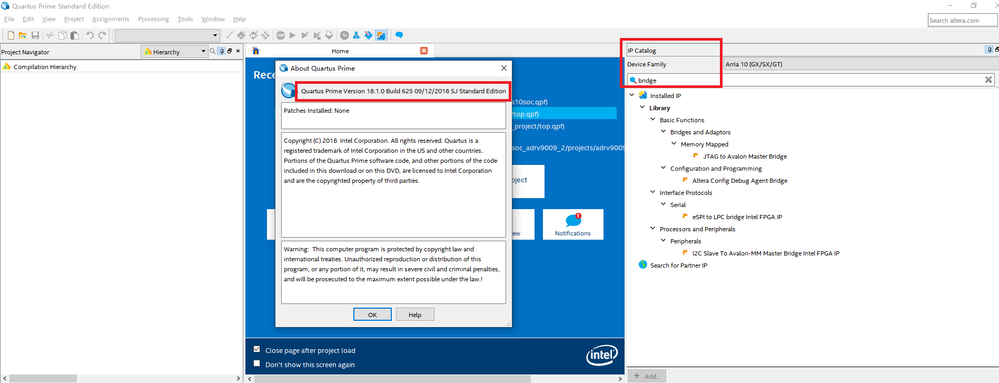

    Inside Quartus Standard Edition 18.1, I wanto create a proect example , and instantiate an "Avalon-MM Clock Crossing Bridge IP" in IP Catalog,

    But I don't find where can I ADD IP of "avmm clock cross bridge"? Can you give some advice ?

    • RichardT_altera's avatar
      RichardT_altera
      Icon for Super Contributor rankSuper Contributor
      6 years ago

      You can only find it in the IP catalog of platform designer. Go to Tools > Platform Designer.
