New Contributor
Super ContributorHi @minjoolee
Have you Generate the Simulator Setup Script in the document section 2.5.3.2.1. ?
Intel Quartus Prime Pro Edition User Guide: Third-party Simulation
Tools > Generate Simulator Setup Script for IP
The script should be in vcs_setup.sh or vcsmx_setup.sh files generated in your project directory.
Please go through Section 2 Intel FPGA Simulation Basics first to understand the simulation flow before go to section 4.
Best Regards,
Richard Tan
p/s: If any answer from the community or Intel support are helpful, please feel free to give Kudos.
New ContributorHI , this is my answer
Have you Generate the Simulator Setup Script in the document section 2.5.3.2.1. ?
--> YES

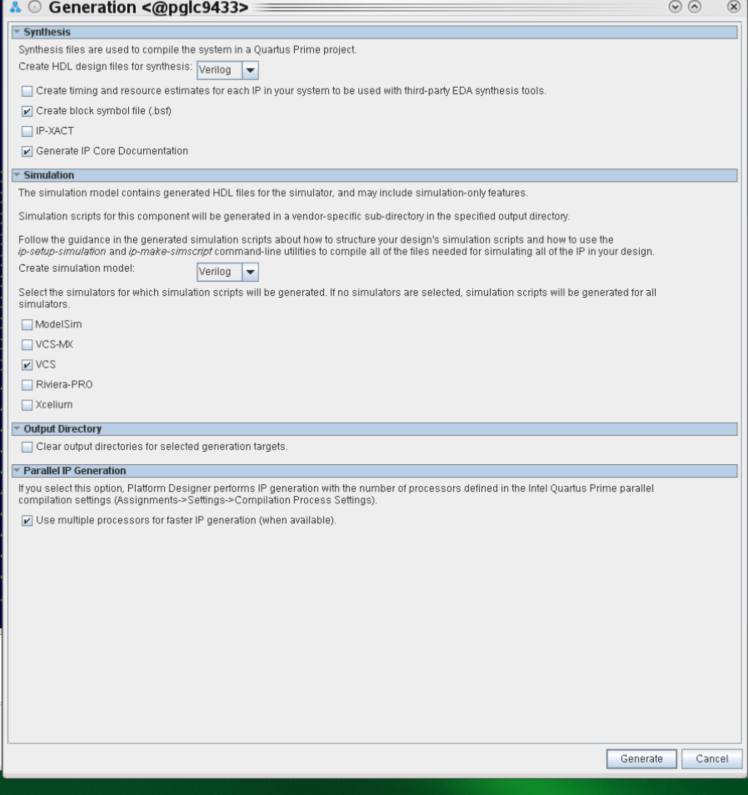

SEE second screen shots
1) scripts result are not same as
Intel Quartus Prime Pro Edition User Guide: Third-party Simulation
2) Without ignore comments in script,
cmd> source vcs_setup.sh
should be working. but not.
3) Can I get simple example such as only 1 PLL design for VCS RTL simulation .
to see waveform ( generated FSDB )
Thanks
Super ContributorThe screenshot resolution is bad to look at but the second screenshot seems to generate HDL for the specific IP. Does not look like it generate the Simulator Setup Script.

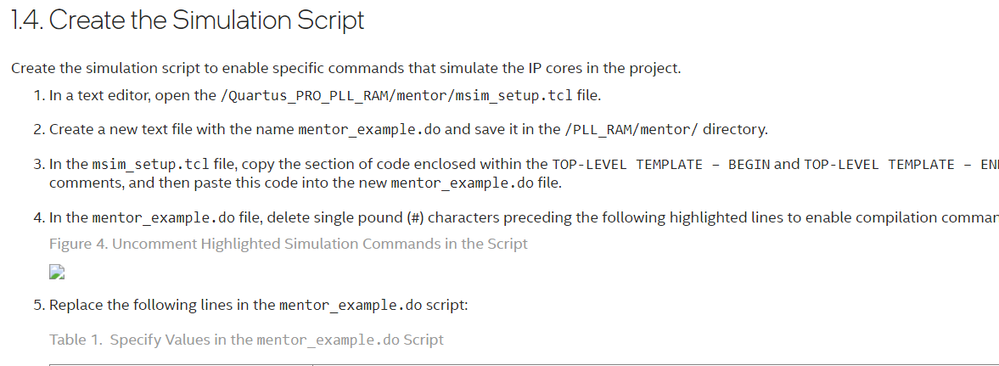

Anyhow, you may checkout the User Guide below on how to run the simulation using the Questa Intel FPGA Edition. The scripting concept is the same for VCS.
https://www.intel.com/content/www/us/en/docs/programmable/691278/21-3/quick-start.html
New Contributor\
->Generated simulation Model.
2) Actually, In mentor it is easy
A) After generation IP from quartus pro, turn off it
B) just want to run the simple script. ( eaxmple.run)
vlogen /!~~~path /generated_IP_name.v
-------------------------------------------
----MISSING PART (wanted part ) ----------------
-------------------------------------------
vcs top_name -kdb
simv
c) >> example.run
How to do it ?
d) ur example is for using Quartus,
even image link is broken
Thanks
Super ContributorI think you are using the incorrect command.
Try using sh vcsmx_setup.sh instead.
source vcsmx_setup.sh is for sourcing the Synopsys VCS MX Simulator Setup Scripts.
Go through the Questa Quick Start then you will understand the simulation flow.
New ContributorHI,
I thinks that we are not same page.

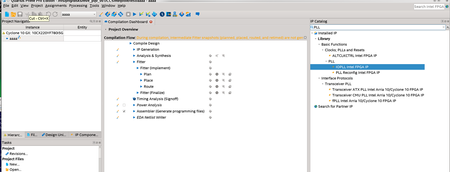

Can you see attachment from Quartus pro
Just generated one PLL which name is test.
In there, there are script for vcs_mx.

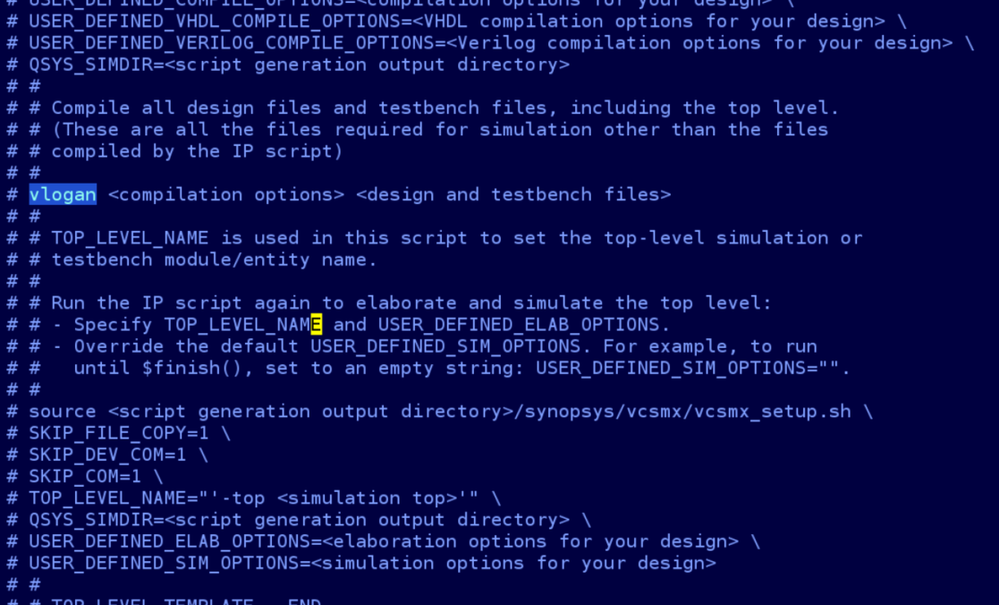

1) Script said
source ~~~~~~/vcsmx_setup.sh
--> NOT WORKING ( My problem to run simulation)
2) The template is not said as
Intel Quartus Prime Pro Edition User Guide: Third-party Simulation
Even same Quartus prime pro version as doc,
Why generated script file contents is not same?
Would check it again?
Thanks
