Tray dimension || MPN# 10M16SCU324C8G || KOSTAT-KS 870369

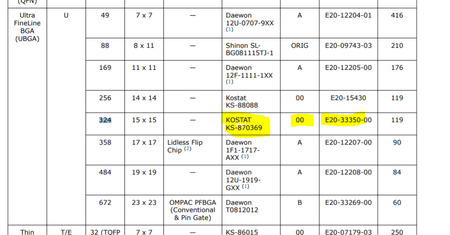

Hi, Kindly advise the tray drawing of REV 00 mentioned here Please also provide tray dimension

Icon for Regular Contributor rank

Regular Contributor

4 years ago

Hello,

I think I have answered to your similar question on this link: https://community.intel.com/t5/Programmable-Devices/Need-tray-dimension-MPN-10M16SCU324C8G-has-tape-and-Reel/m-p/1290634/emcs_t/S2h8ZW1haWx8dG9waWNfc3Vic2NyaXB0aW9ufEtRMEtLTTRCSUkwSlNJfDEyOTA2MzR8U1VCU0NSSVBUSU9OU3xoSw#M80304

Thanks

Weizhe
New Contributor
4 years ago
Hello,

Yes, you are right.
But could you please advise tray dimension for below ?
- AminT_Intel
  Regular Contributor
  4 years ago
  Hello,

  Package dimension can be found from this link: https://www.intel.com/content/www/us/en/programmable/support/literature/lit-index/lit-pkg.html

  Thank you.
