SoC u-boot stuck in loop trying to load bad FPGA soc

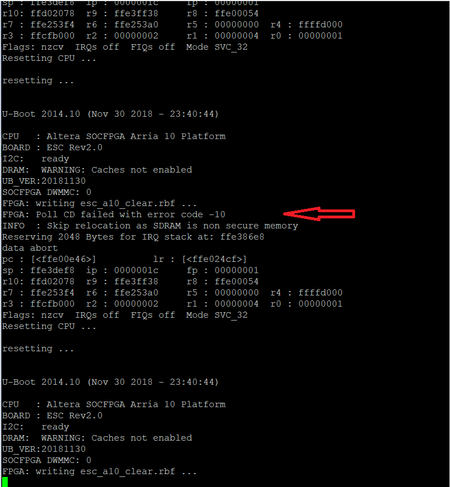

Hi, I have an Arria-10 SoC design with eMMC, running u-boot / Linux. I have an incorrect FPGA soc (clear-mode) saved in flash. u-boot is stuck in a loop attempting to load the FPGA image into fa...
Configuration
  • PeteHarbour's avatar
    PeteHarbour
    1 year ago

    When booting SoC platform from eMMC flash device (boot-ROM --> u-boot --> linux) and incorrect FPGA image mistakenly written to eMMC the only repair option appears to be a complete flash image (sdimage) re-write. For eMMC flash device the only supported option is to change HW boot-select (BSEL) pins to cause boot-ROM to ignore flash 2nd-stage boot loader (u-boot). Then one can use Intel flash_programmer Python-script to re-write original sdimage to eMMC flash as a recovery option.
    Short answer: don't mistakenly write wrong FPGA image onto MMC flash of Soc platform or you're *DEADBEEF*

tehjingy_Altera's avatar
tehjingy_Altera
Icon for Regular Contributor rankRegular Contributor
1 year ago

Hi


You could try the python script (make_sdimage_p3.py) in the how-to below:

https://www.rocketboards.org/foswiki/Documentation/BuildingBootloaderCycloneVAndArria10#Arria_10_SoC_45_Boot_from_SD_Card


Use the command below to get the script:

wget https://releases.rocketboards.org/2021.04/gsrd/tools/make_sdimage_p3.py


You would create the folder in which you would like to be placed in the sd card. The folder will be the different partition in the sd card.


Regards

Jingyang, Teh
