Remote System Upgrade for MAX 10 FPGA

「AN 741: Remote System Upgrade for MAX 10 FPGA Devices over UART

with the Nios II Processor」の「Figure 1. Reference Design Block Diagram」では、NiosⅡを使用してDual Configuration IP Core を制御しておりますが、、NiosⅡとDual Configuration IP CoreのCLK周波数はちがってもよろしいですか。

使用しているFPGAは、10M16SCE144C8Gです。

​NiosⅡのCLK = 50MHz Dual Configuration IP CoreのCLK = 40MHz

2 Replies

  • ShafiqY_Intel's avatar
    ShafiqY_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    5 years ago

    Hi YSuzu21,

    We use the same clock for NIOS II and Dual Configuration IP.

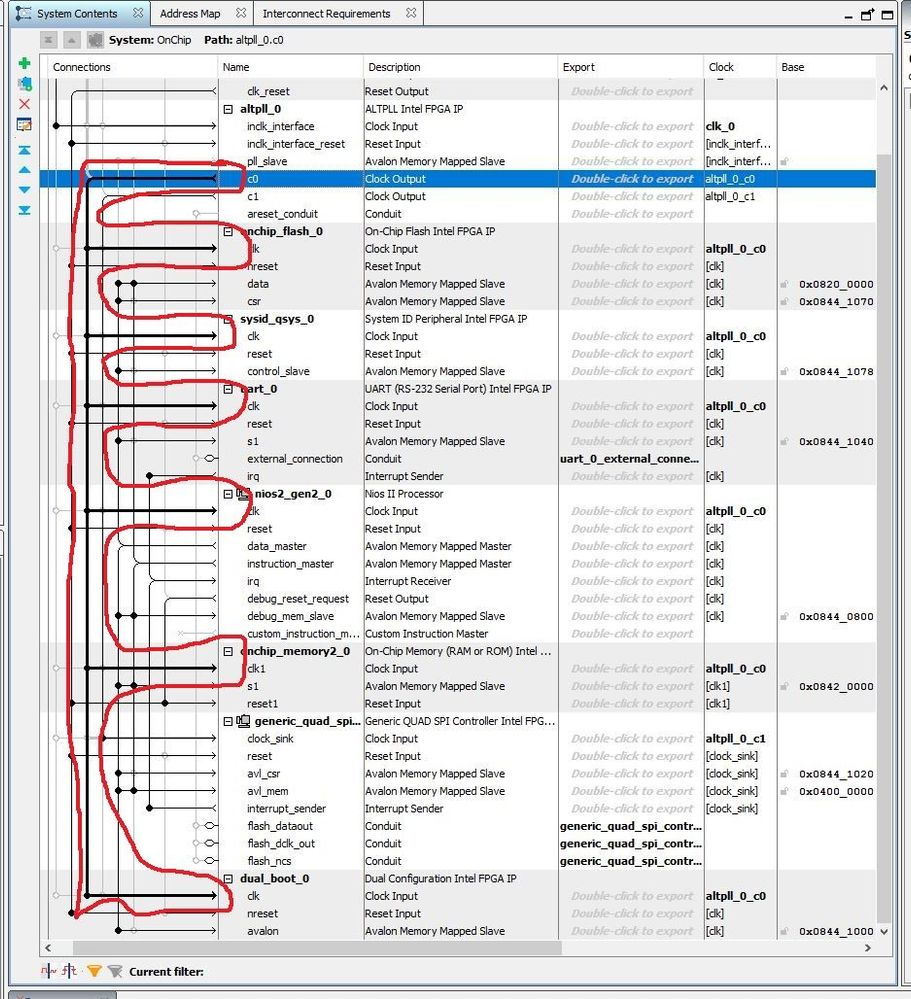

    we use similar PLL output to these NIOS II IP and Dual Configuration IP:

    Cheers

    • YSuzu21's avatar
      YSuzu21
      Icon for New Contributor rankNew Contributor
      5 years ago

      Thank you for your reply.
