Yeah sure.
The VHDL code:
ntity PLL_TEST is
Port (LVDS_Clk_p, LVDS_Clk_n : in std_logic_vector(0 downto 0);
clk : in std_logic;
step, updown : in std_logic; -- step must be applied for atleast two cycles.
cntsel : in std_logic_vector(2 downto 0) -- "000" all counters, "001" M counter?, "010" c0 ... "110" c4
--data : out std_logic_vector(15 downto 0)
);
end PLL_TEST;
architecture rtl of PLL_TEST is
component IOBUF_Differential_1
port(
datain : in std_logic_Vector(0 downto 0);
datain_b : in std_logic_vector(0 downto 0);
dataout : out std_logic_vector(0 downto 0)
);
end component IOBUF_Differential_1;
component PLL
port(
areset : in std_logic;
inclk0 : in std_logic;
phasecounterselect : in std_logic_vector(2 downto 0);
phasestep : in std_logic;
phaseupdown : in std_logic;
scanclk : in std_logic;
c0 : out std_logic;
locked : out std_logic;
phasedone : out std_logic
);
end component PLL;
signal pll_clk : std_logic;
signal pll_lock : std_logic;
signal rst : std_logic := '0';
signal pll_phasedone : std_logic;
signal LVDS_Clk : std_logic_vector(0 downto 0);
begin
LVDS_CLK_inst : IOBUF_Differential_1 PORT MAP(
datain => LVDS_Clk_P,
datain_b => LVDS_Clk_N,
dataout => LVDS_Clk
);
PLL_CLK_inst : PLL PORT MAP (
areset => rst,
inclk0 => lvds_clk(0),
phasecounterselect => cntsel,
phasestep => step,
phaseupdown => updown,
scanclk => clk,
c0 => pll_clk,
locked => pll_lock,
phasedone => pll_phasedone
);
end rtl;

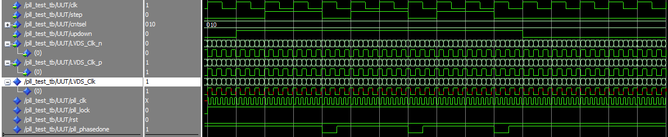

And just in case the TB code as well:
architecture TB of PLL_TEST_TB is
signal clk_50 : std_logic := '1';
signal lvds_clk_p, lvds_clk_n : std_logic_vector(0 downto 0) := "1";
signal step, updown : std_logic := '0';
signal cntsel : std_logic_vector (2 downto 0) := "010";
-- Procedure for clock generation
procedure clk_gen(signal clk : out std_logic; constant FREQ : real; constant DELAY : real) is
constant PERIOD : time := 1 sec / FREQ; -- Full period
constant HIGH_TIME : time := PERIOD / 2; -- High time
constant LOW_TIME : time := PERIOD - HIGH_TIME; -- Low time; always >= HIGH_TIME
constant DELAYE : time := DELAY * 1 ns;
begin
-- Check the arguments
assert (HIGH_TIME /= 0 fs) report "clk_plain: High time is zero; time resolution to large for frequency" severity FAILURE;
-- Generate a clock cycle
wait for DELAYE;
loop
clk <= '1';
wait for HIGH_TIME;
clk <= '0';
wait for LOW_TIME;
end loop;
end procedure;
begin
-- Clock generation with concurrent procedure call
clk_gen(clk_50, 50.0e6, 0.0e0);
clk_gen(lvds_clk_p(0), 150.0e6, 0.0e0);
clk_gen(lvds_clk_n(0), 150.0e6, 0.0e0);
--Instantiante UUT
UUT: entity work.PLL_TEST
port map(
lvds_clk_p => lvds_clk_p,
lvds_clk_n => lvds_clk_n,
clk => clk_50,
step => step,
updown => updown,
cntsel => cntsel
);
Testing : process is
begin
wait for 30 ns;
wait until rising_edge(clk_50);
updown <= '1';
wait until rising_edge(clk_50);
step <= '1';
wait until rising_edge(clk_50);
wait until rising_edge(clk_50);
step <= '0';
wait until rising_edge(clk_50);
step <= '1';
wait until rising_edge(clk_50);
wait until rising_edge(clk_50);
step <= '0';
wait until rising_edge(clk_50);
step <= '1';
wait until rising_edge(clk_50);
wait until rising_edge(clk_50);
step <= '0';
wait until rising_edge(clk_50);
updown <= '0';
wait for 100 ns;
assert false report "Test Complete" severity failure;
end process Testing;
end architecture TB;
