MAX10 UART RSU EXAMPLE NOT WORKING

Hello ,

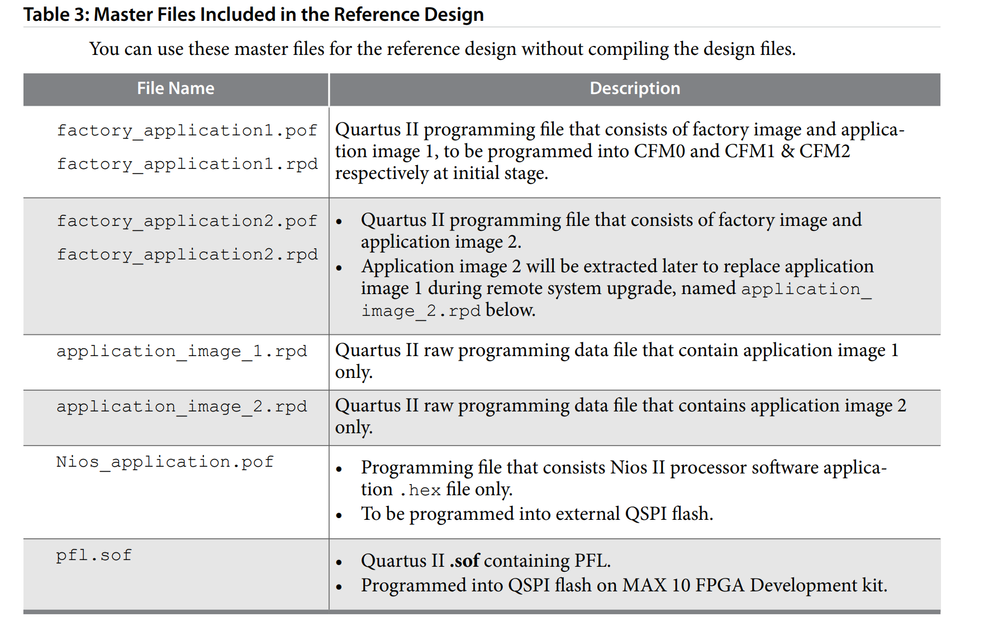

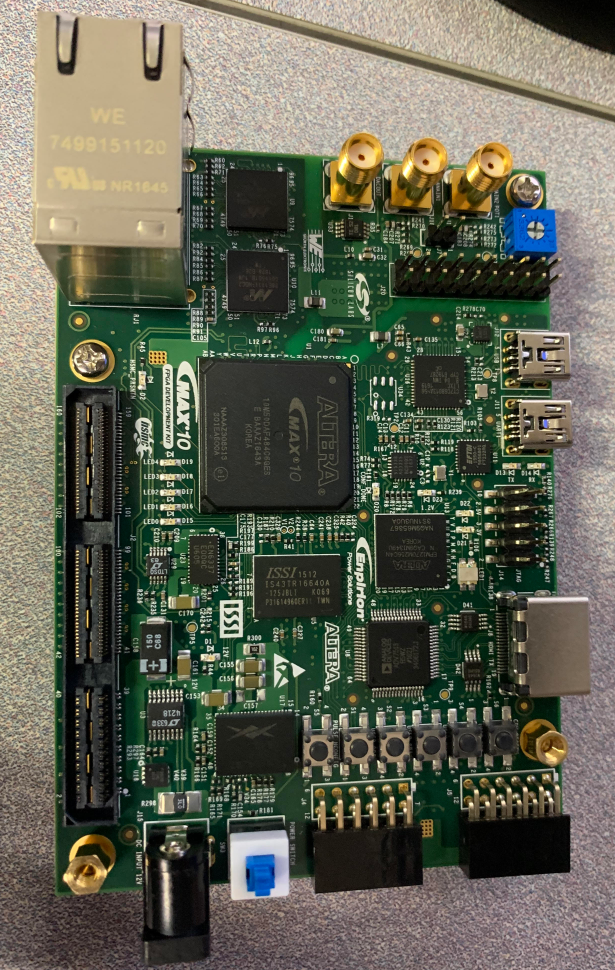

I have MAX10 development kit. I am trying to play with MAX10 RSU with UART NIOS example files according to AN741 document.

I am able to program all files correctly but when i connect UART to terminal i don't see any compunction there.

Any idea what i am missing ???

Thanks

25 Replies

  • EP1's avatar
    EP1
    Icon for New Contributor rankNew Contributor
    3 years ago

    Hi,

    I am having the same problem.

    Any new information about how to solve it?

    Thanks

  • SAB4887's avatar
    SAB4887
    Icon for New Contributor rankNew Contributor
    3 years ago

    Hello,

    Yes. I am following AN741.

    And I am directly programming MAX10 with files provided by Intel.

    Do i need to setup anything specifically if i use those output files ?

  • Ash_R_Altera's avatar
    Ash_R_Altera
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,

    Please check your connection to the board UART port. Are you able to use the Remote Terminal.exe?


    Regards


  • SAB4887's avatar
    SAB4887
    Icon for New Contributor rankNew Contributor
    3 years ago

    Hello,

    I checked UART connection it working fine.

    Yes, i am able to use Remote Terminal.exe but i am not seeing any data on it?

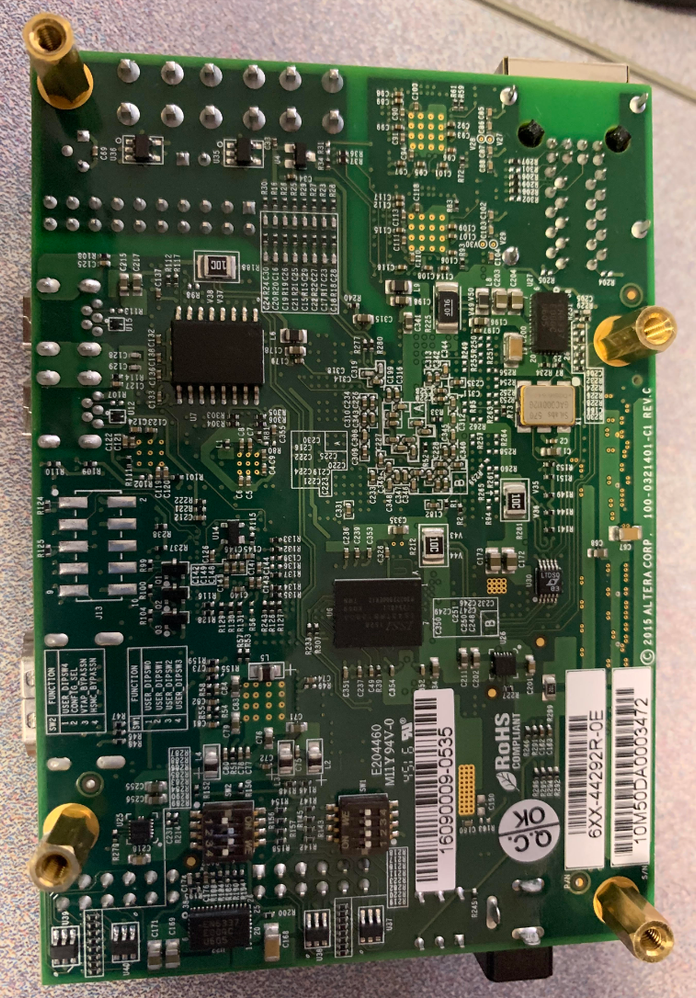

    I tried on two development board both behaves same..

  • Ash_R_Altera's avatar
    Ash_R_Altera
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,

    Can you please tell the steps that you followed in detail?


    Regards


    • SAB4887's avatar
      SAB4887
      Icon for New Contributor rankNew Contributor
      3 years ago

      Following steps i am following to test "UART Remote upgrade"

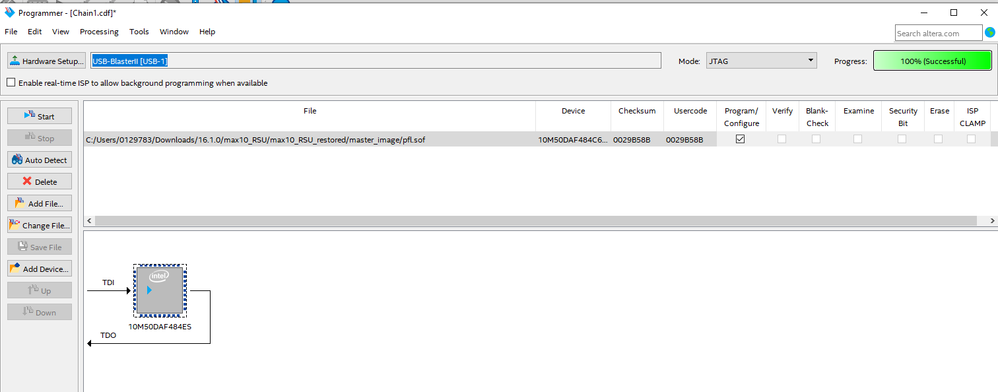

      Step 1 : Programmed board with "pfl.sof" file

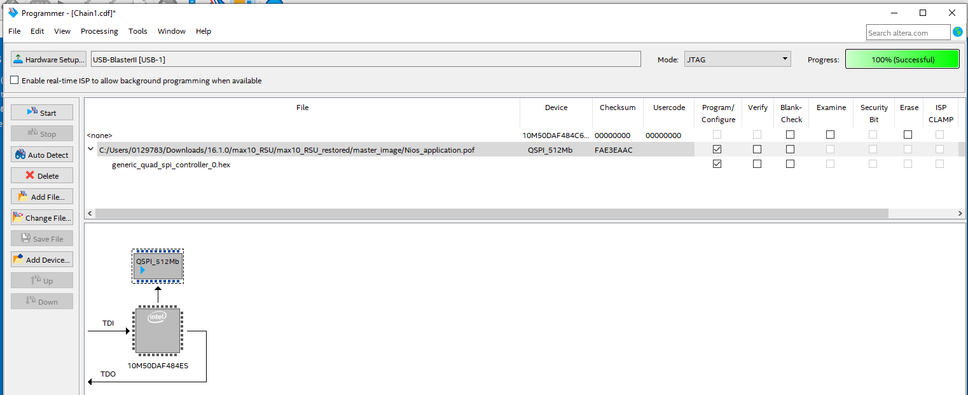

      Step2 : Programmed QSPI with ".Hex" file

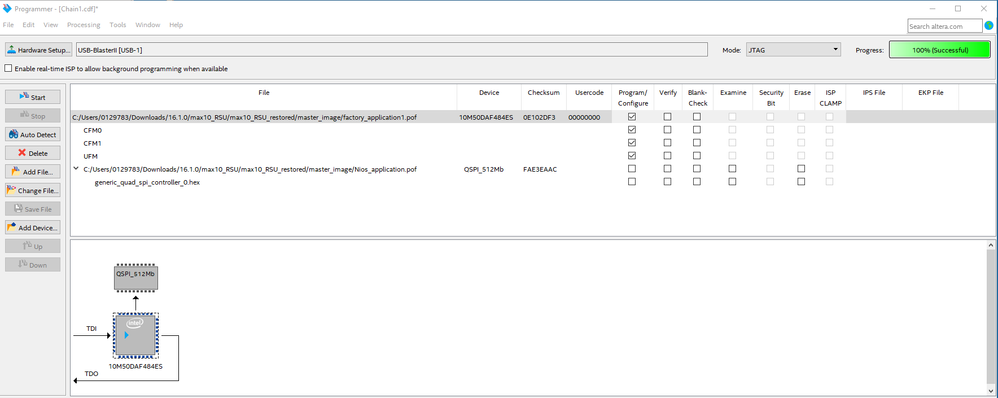

      Step 3 : Programmed FPGA with "factory_application1.pof"

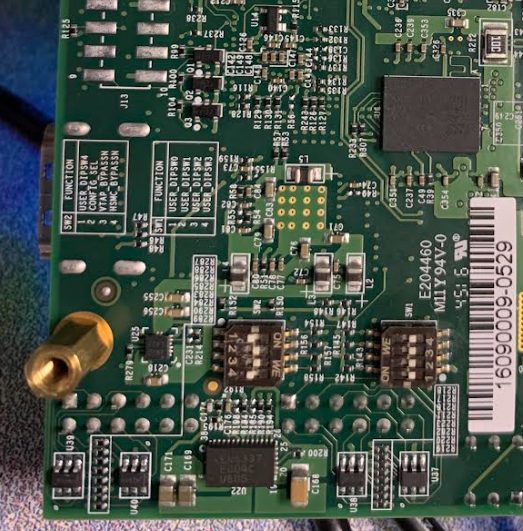

      Step 4 : the CONFIG_SEL pin on the board is set to 0

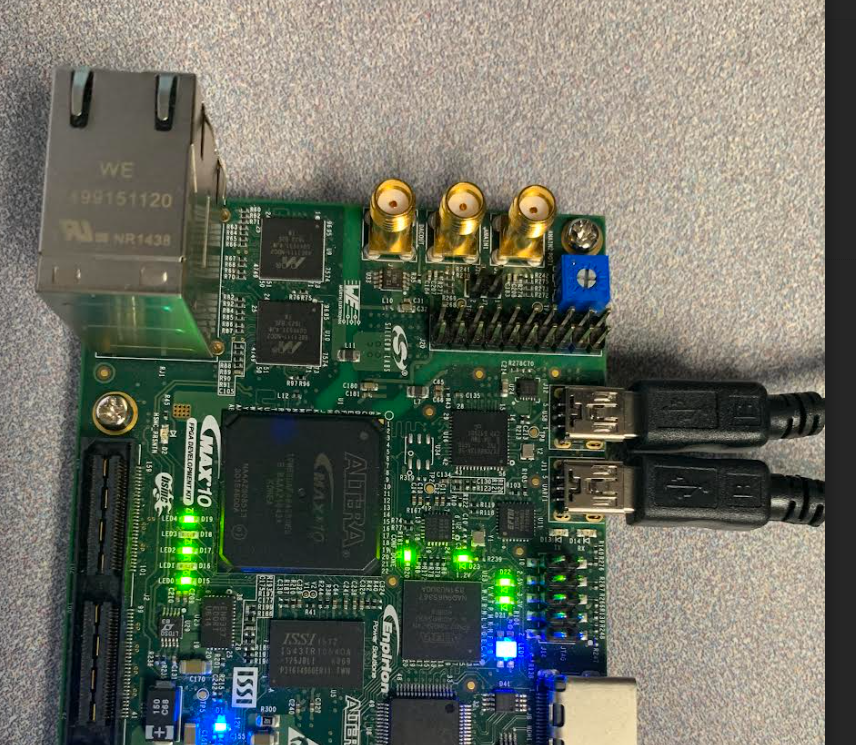

      Step 5 : UART communication : FPAGA connected through J11 UART connector

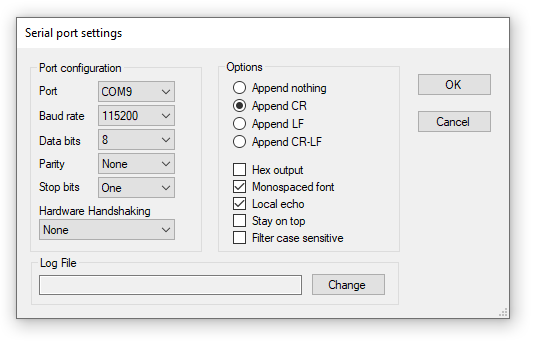

      Step 6 : Open "Remote terminal.exe" file & configured UART communication.

      Step 7: Press the nCONFIG button on the development kit or key-in 1 in the Send text box,then hit
      Enter.

      But after step7 I don't see any data on Terminal window.. ????

      Am I missing anything ????

      Thanks

  • Ash_R_Altera's avatar
    Ash_R_Altera
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,

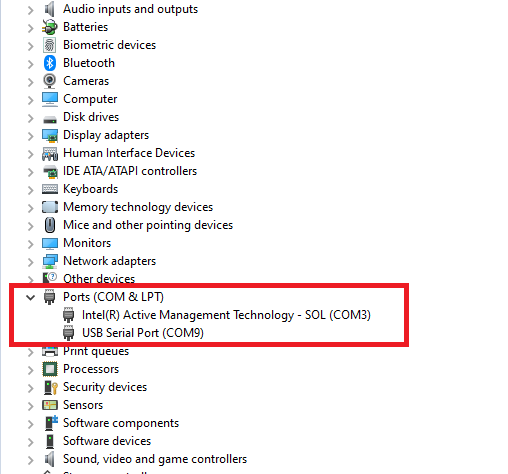

    Please check if the USB port is getting identified on your machine through Device Manager, when you plug in the connector to on-board UART and connect to your PC. If not, please install the driver.


    Regards


  • SAB4887's avatar
    SAB4887
    Icon for New Contributor rankNew Contributor
    3 years ago

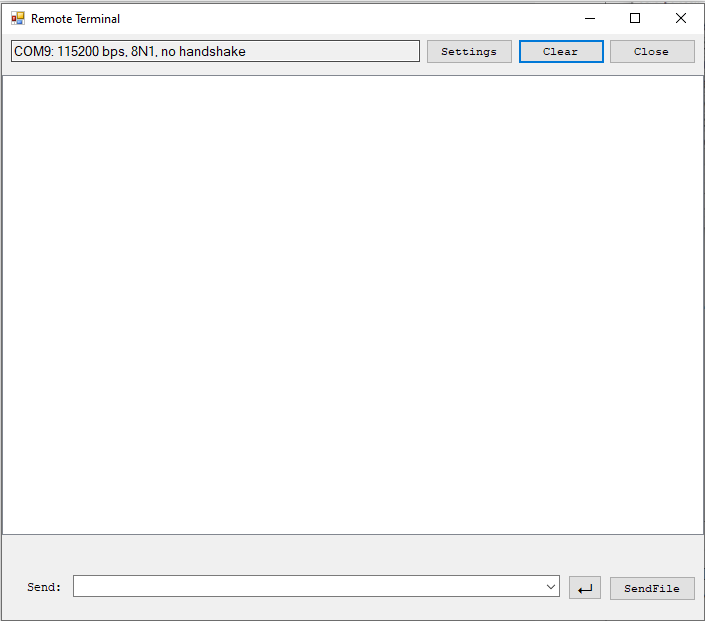

    Yes, it is being identified as COM Port 9 when i connect to USB to J11 connector.
