Max10 Conf_done pull-up resistor value

Hello,

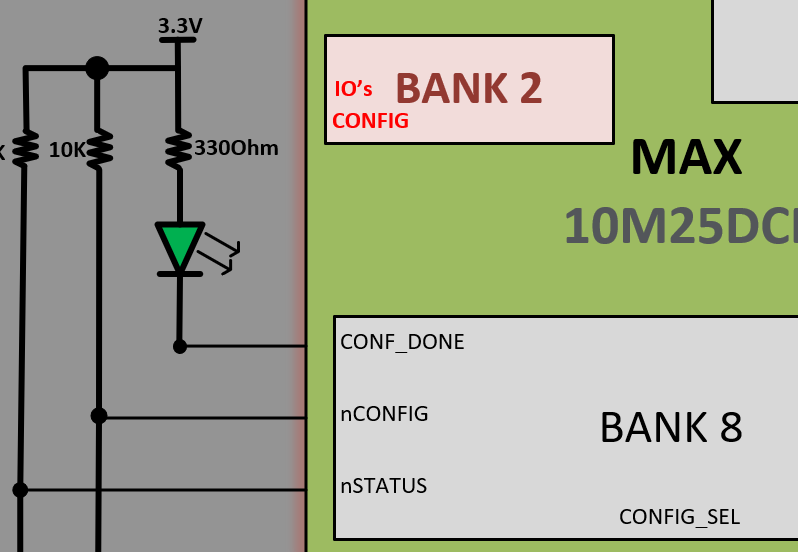

I have a requirement to connect LED to CONF_DONE pin to indicate the status of configuration. Is it fine to connect a LED directly to conf_Done pin with current limiting resistor around 300 ohm, or do we need to adhere to the 10Kohm resistors as mentioned in the datasheet?

Thanks,

Configuration

2 Replies

  • NurAiman_M_Intel's avatar
    NurAiman_M_Intel
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    Hi,


    You may try to use the lower value however we recommend to follow the datasheet as it has been tested by Intel.



    Regards,

    Aiman
