MAX V Device ID failures

we brokered some devices with the current material situation.

We purchased 400 pieces of 5M570ZT100C4N with date codes 1325 and 1337.

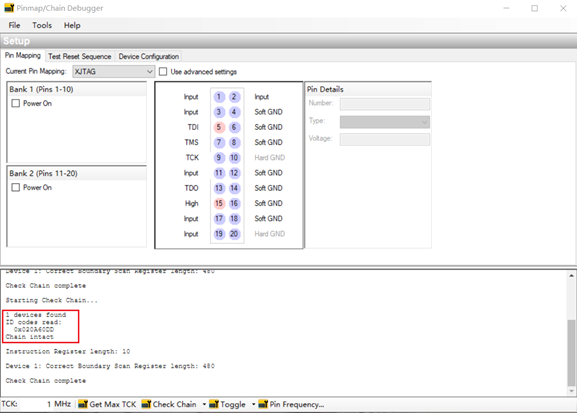

we had the parts tested prior to sending to our CM. the test house provided the following data:

all passed with the correct device ID

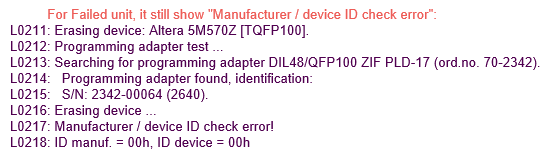

the parts are at our CM and they have a 66% failure at programing, failing the device ID check.

we are not sure why we have this issue since the parts were tested prior to programming.

4 Replies

  • YuanLi_S_Intel's avatar
    YuanLi_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    It looks like you are using custom programmer to do programming. With 6/400 unit having issue only, it sounds to me that some of the part might have problem.


    But anyway, what programming file you are programming? Also, is it possible to test with quartus programmer to do programming?


  • AL-D's avatar
    AL-D
    Icon for New Contributor rankNew Contributor
    4 years ago

    thank you for the suggestions. I will ask my CM if they have the quartus sw.

    For programming they are currently using:

    Manufacturer

    Model

    S/W

    S/W Rev

    Adapter

    ELNEC

    BeeHive204

    Pg4uw

    V3.38D

    DIL48/QFP100 ZIF PLD-17

    Data IO

    PSV5000

    TaskLink

    V9.01

    Q2861

    they are using an .eprj project file Elnec for programming.

  • YuanLi_S_Intel's avatar
    YuanLi_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Seems like .eprj is your own programming file. Could it be the file converting issue? Apologize that we are not able to support as we are only able to debug our own programming file issue such as SOF, POF, JIC and etc.
