Log file of USB Blaster

Hello Team,

I want to program an MAX 10 FPGA : 10M04SCU169A7G

I can use command line to execute programming process.(D:\altera\15.0\quartus\bin64\quartus_pgm -i -c USB-Blaster -m JTAG -o P;)

Is there any log file I can check for programming result?

Programming Device : USB Blaster program MAX 10 IC

Platform: Windows 7 , quartus_pgm 15.0

Thank you for any advice you can provide.

5 Replies

  • vj123's avatar
    vj123
    Icon for New Contributor rankNew Contributor
    7 years ago

    Hi,

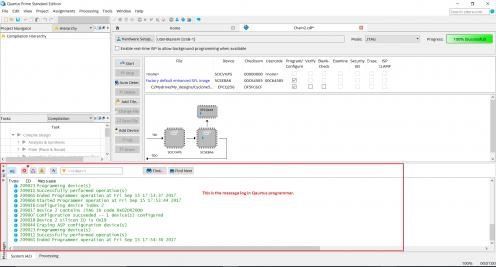

    There is a message window/log in the Quartus tool that should be showing the programming process. Refer to the screens shot.

    After full compilation .sof programming will generate under out_files directory.

    Let me know if this has helped resolve the issue you are facing or if you need any further assistance.

    Best Regards

    Vikas Jathar

    (This message was posted on behalf of Intel Corporation)

  • Clay's avatar
    Clay
    Icon for New Contributor rankNew Contributor
    7 years ago

    Thank you for the information.

    I wonder is there any readable text file to make the process traceable?

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    7 years ago

    Hi Clay,

    We can verify the programming by

    • Generate the Assembler report using <designtop>.asm.rpt
    • Program file using quartus_pgm -m JTAG -o P;<designtop>.sof --verify we will get the checksum in command line.
    • Now we compare the checksum in command line and Assembler report.

    Hope it helps.

    Best Regards,

    Anand Raj Shankar

    (This message was posted on behalf of Intel Corporation)
