Interfacing Bluetooth with de10 nano

How to interface HC-05 Bluetooth module with de10 nano?

1 Reply

  • ak6dn's avatar
    ak6dn
    Icon for Regular Contributor rankRegular Contributor

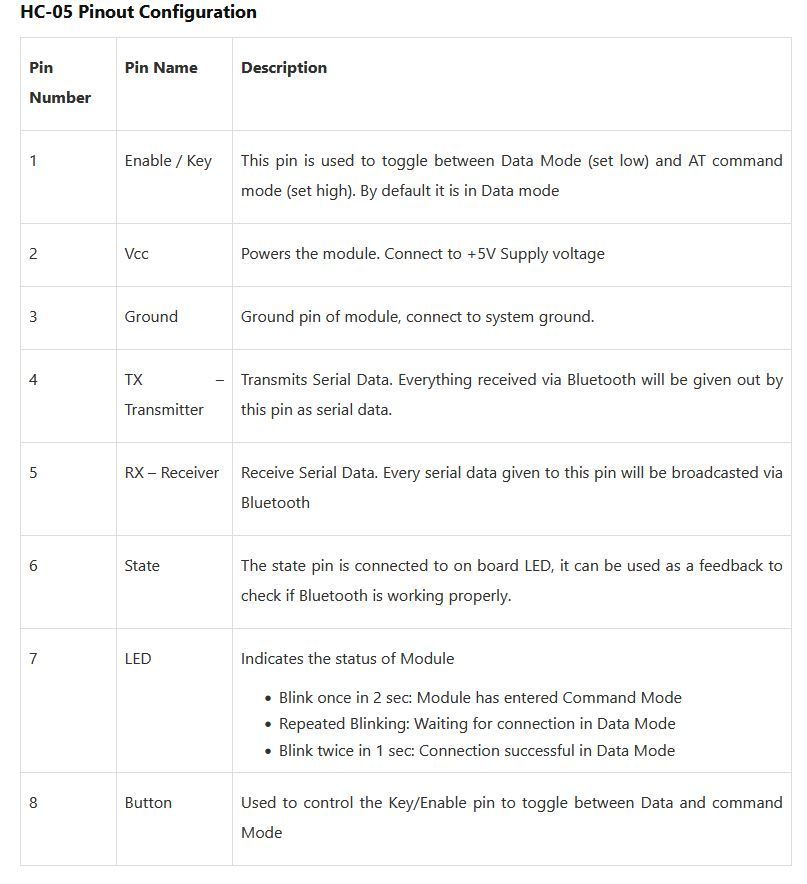

    Those modules have a simple 8 pin connector.

    Two power lines, four status/enable lines, and a UART RX/TX pair.

    So four GPIO pins and two (RX/TX) lines for a standard 9600/38400 baud asynchronous UART module.

    So you will have to implement some logic on the FPGA side (UART, GPIO ports) and tie it into the processor side of the DE10-NANO.
