New ContributorHi,
Just started to program CPLD for the first time. I saw from schematics USER_LED0 is tied to P4 and USER_LED1 is tired to R1. So, in the pin assignment, I assign output to PIN_P4, and output is driven to GND. After programming, the LEDs are still on. anything missing? thanks
Super ContributorHi,
Thank you for contacting Intel community.

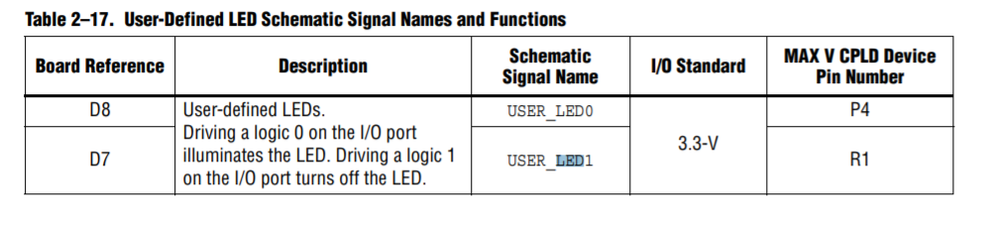

Do you mean you refer to MAX V CPLD Dev board reference manual? Below table shows the description for the LED. Driving a logic 1
on the I/O port turns off the LED.
Regards,
Aiman
New Contributorthanks, working now.
