New ContributorHigh voltage IO location
Dear,
According to Arria 10 product table， we know that FPGA "10AX048H2F34E1HG" has one bank which can support IO voltage higher than 1V8.
How could I know that which bank that is HV bank ?
Thank you.
Brs,
Leon
Thank you.

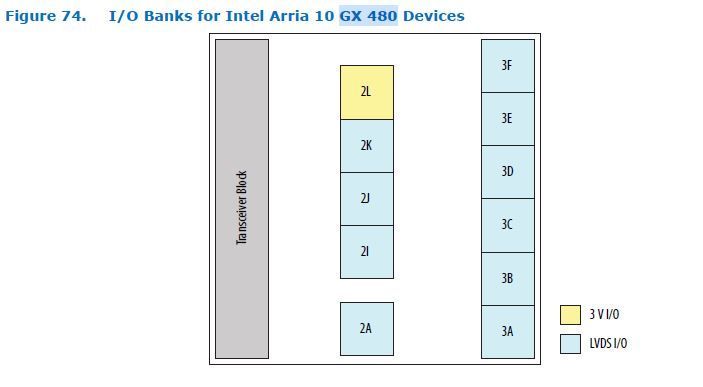

I have found the answer, not in "a10_datasheet", it is in “Intel® Arria® 10 Core Fabric and General Purpose IO Handbook” spec，in page106，
Bank 2L is high voltage IO bank。
5 Replies
AminT_IntelRegular Contributor
Hello,
May I know where did you get this information?
Thanks.
Fresh_LeonHello，
I download Arria 10ax048 Pin-Outs file from your website.
There is a column names “Non-Dedicated Tx/Rx Channel”， the IO which marked “DIFFIO*L_*p/n” is high voltage IO?
Brs,
Leon
- AminT_Intel
Hello,
Non-dedicated Tx/Rx means non-dedicated transceiver/receiver from the Pin-Out file. Please refer to the Device Datasheet for I/O specs: https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/hb/arria-10/a10_datasheet.pdf
Thanks.
- Fresh_Leon
Thank you.
I have found the answer, not in "a10_datasheet", it is in “Intel® Arria® 10 Core Fabric and General Purpose IO Handbook” spec，in page106，
Bank 2L is high voltage IO bank。
- AminT_Intel
We do not receive any response from you to the previous question/reply/answer that I have provided. This thread will be transitioned to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.
