Help with modelsim

Hi guys!

I'm having trouble simulating in modelsim. My code is below;

library ieee;

use ieee.std_logic_1164.all;

use ieee.numeric_std.all;

-- Begin entity declaration for "uppgift_vhdl_2b"--

entity test_vga is

--Begin port declaration--

port

(

-- Reset and clock 50 MHZ--

RESET_N, CLOCK_50 : in std_logic;

--Commmand-switches--

KEY : in std_logic_vector (2 downto 0);

--Colours (Blue/Red/Green) 8bit each--

VGA_R,VGA_G,VGA_B : out std_logic_vector (7 downto 0);

--No color,outside writing area--

VGA_BLANK_N,VGA_SYNC_N : out std_logic;

--Sync signals Horizontal/vertical, VGA clock--

VGA_HS,VGA_VS,VGA_CLK : out std_logic

);

--End entity--

end entity test_vga;

--Begin architecture--

architecture vga of test_vga is

type hv_type is --Horizental/Vertical type

record

H: INTEGER range 0 to 799;

V: INTEGER range 0 to 524;

end record;

signal counter_int : hv_type;

signal CLK_25MHZ : std_logic;

begin

VGA_CLK<=CLK_25MHZ;

process_clock_25mhz : process(CLOCK_50)

begin

if rising_edge(CLOCK_50) then

CLK_25MHZ<= not CLK_25MHZ;

end if;--end rising_edge (clock_50)--

end process;--end process_clock_25mhz--

--Sync process--

process_sync_screen : process(CLK_25MHZ)

begin

if rising_edge(CLK_25MHZ) then

if RESET_N ='0' then

counter_int.h <= 0;

counter_int.v <=0;

--Every output gets a starting value--

VGA_HS <= '1';

VGA_VS <= '1';

VGA_BLANK_N <= '1';

VGA_SYNC_N <= '0';

VGA_R <=(others =>'0');

VGA_G <=(others =>'0');

VGA_B <=(others =>'0');

else

-- Clock out RGB Pixel Row Data Horizontal Sync--

-- ------------------------------------__________--------

-- 0 639 659 755 799

if counter_int.h >= 799 then

counter_int.h <= 0;

else

counter_int.h <= counter_int.h + 1;

end if;

-- Horizontal Sync Generation ('0')--

-- ------------------------------------__________-------

-- 0 659 755

if (counter_int.h <= 755) and (counter_int.h>= 659) then

VGA_HS <= '0';

else

VGA_HS <= '1';

end if;

-- 480 Horizontal Sync (pixel rows) Vertical Sync--

-- ---------------------------------------_______----------

-- 0 480 493-494 524

if (counter_int.v >= 524) and (counter_int.h >= 707) then

counter_int.v <= 0;

elsif counter_int.h = 707 then

counter_int.v <= counter_int.v + 1;

end if;

-- Vertical Sync Generation ('0') --

-- ---------------------------------------_______----------

-- 0 493-494

if (counter_int.v <= 494) and (counter_int.v >= 493) then

VGA_VS <= '0';

else

VGA_VS <= '1';

end if;

--Declares when blank will be low/active--

if counter_int.h<=639 then

VGA_BLANK_N<='1';

else

VGA_BLANK_N<='0';

end if;

--Declares when sync will be low/active--

if counter_int.v<=479 then

VGA_SYNC_N<='1';

else

VGA_SYNC_N<='0';

end if;

IF (counter_int.h < 640 AND KEY = "110") THEN

VGA_R <="11111111";

else

VGA_R <= "00000000";

end if;

IF (counter_int.h < 640 AND KEY = "101") THEN

VGA_B <="11111111";

else

VGA_B <= "00000000";

end if;

IF (counter_int.h < 640 AND KEY = "011") THEN

VGA_G <="11111111";

else

VGA_G <= "00000000";

end if;

end if;--if reset_n='0'

end if;--if rising_edge

end process process_sync_screen;

--End architecture--

end architecture vga;

-----------------------------------------------------------------------------------------------------------------------------------------------------

What should i write in the testbench to make this work properly? Almost all of my signals are "undefinied".

My stimuli is:

KEY <= "111";

wait for 50 ns;

KEY <= "110";

wait for 50 ns;

KEY <= "111";

wait for 50 ns;

KEY <= "101";

wait for 50 ns;

KEY <= "111";

wait for 50 ns;

KEY <= "011";

wait for 50 ns;

wait for 50 ns;

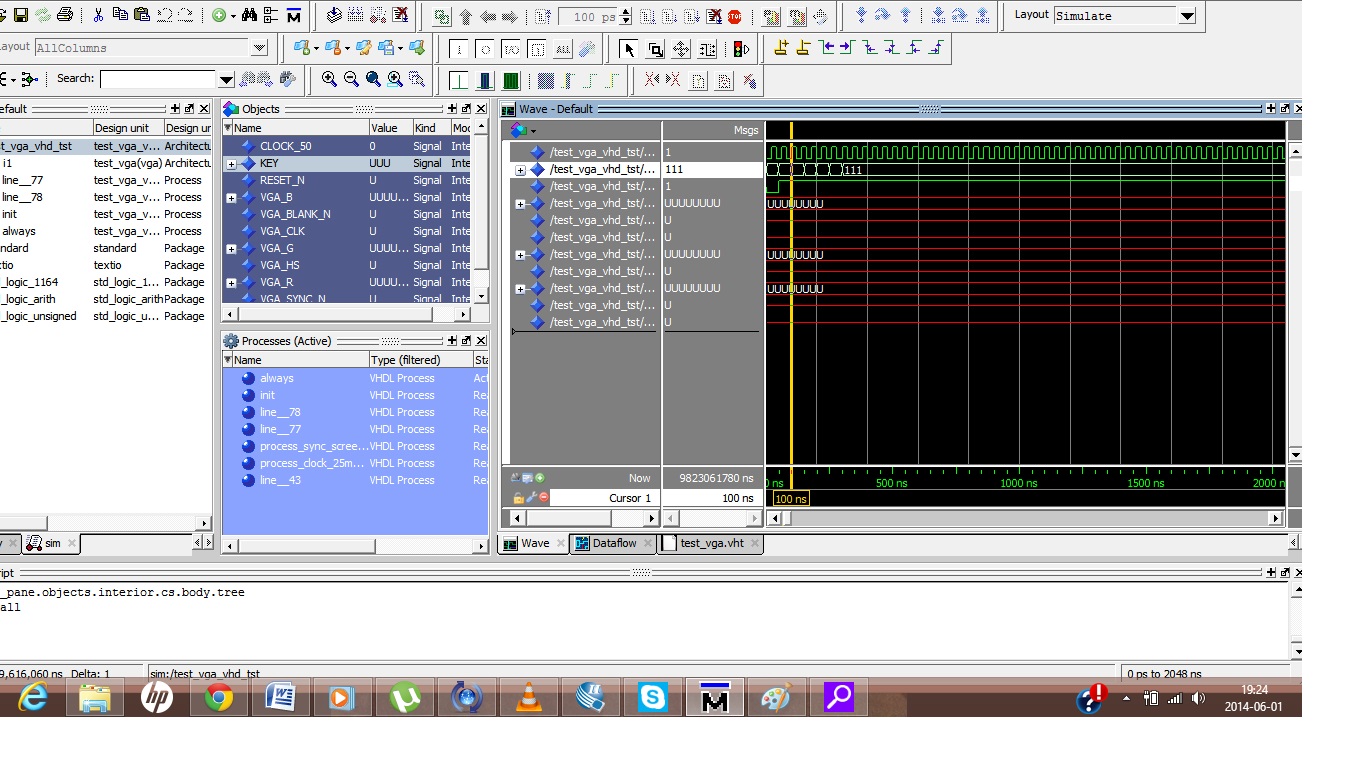

https://www.alteraforum.com/forum/attachment.php?attachmentid=8947

I would really be grateful if somebody helped with this.

7 Replies

  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    11 years ago

    Could you make the list with names a bit wider so we can see which signals are which?

  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    11 years ago

    Am I correct in saying that VGA_CLK is never assigned a value?

    Check your errors and warnings. There you may find something that may help you find the problem.
  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    11 years ago

    --- Quote Start ---

    Am I correct in saying that VGA_CLK is never assigned a value?

    Check your errors and warnings. There you may find something that may help you find the problem.

    --- Quote End ---

    Should I assign the value on the testbench? I can post the whole testbench and than maybe you can see were I went wrong.

    ----------------------------------------------------------------------------------------------------------------------------------------------

    LIBRARY ieee;

    USE ieee.std_logic_1164.all;

    ENTITY test_vga_vhd_tst IS

    END test_vga_vhd_tst;

    ARCHITECTURE test_vga_arch OF test_vga_vhd_tst IS

    -- constants

    -- signals

    SIGNAL CLOCK_50 : STD_LOGIC := '0';

    SIGNAL KEY : STD_LOGIC_VECTOR(2 DOWNTO 0);

    SIGNAL RESET_N : STD_LOGIC;

    SIGNAL VGA_B : STD_LOGIC_VECTOR(7 DOWNTO 0);

    SIGNAL VGA_BLANK_N : STD_LOGIC;

    SIGNAL VGA_CLK : STD_LOGIC;

    SIGNAL VGA_G : STD_LOGIC_VECTOR(7 DOWNTO 0);

    SIGNAL VGA_HS : STD_LOGIC;

    SIGNAL VGA_R : STD_LOGIC_VECTOR(7 DOWNTO 0);

    SIGNAL VGA_SYNC_N : STD_LOGIC;

    SIGNAL VGA_VS : STD_LOGIC;

    COMPONENT test_vga

    PORT (

    CLOCK_50 : IN STD_LOGIC;

    KEY : IN STD_LOGIC_VECTOR(2 DOWNTO 0);

    RESET_N : IN STD_LOGIC;

    VGA_B : OUT STD_LOGIC_VECTOR(7 DOWNTO 0);

    VGA_BLANK_N : OUT STD_LOGIC;

    VGA_CLK : OUT STD_LOGIC;

    VGA_G : OUT STD_LOGIC_VECTOR(7 DOWNTO 0);

    VGA_HS : OUT STD_LOGIC;

    VGA_R : OUT STD_LOGIC_VECTOR(7 DOWNTO 0);

    VGA_SYNC_N : OUT STD_LOGIC;

    VGA_VS : OUT STD_LOGIC

    );

    END COMPONENT;

    BEGIN

    i1 : test_vga

    PORT MAP (

    -- list connections between master ports and signals

    CLOCK_50 => CLOCK_50,

    KEY => KEY,

    RESET_N => RESET_N,

    VGA_B => VGA_B,

    VGA_BLANK_N => VGA_BLANK_N,

    VGA_CLK => VGA_CLK,

    VGA_G => VGA_G,

    VGA_HS => VGA_HS,

    VGA_R => VGA_R,

    VGA_SYNC_N => VGA_SYNC_N,

    VGA_VS => VGA_VS

    );

    CLOCK_50 <= not CLOCK_50 after 20 ns;

    RESET_N <= '0', '1' after 50 ns;

    init : PROCESS

    -- variable declarations

    BEGIN

    -- code that executes only once

    KEY <= "111";

    wait for 50 ns;

    KEY <= "110";

    wait for 50 ns;

    KEY <= "111";

    wait for 50 ns;

    KEY <= "101";

    wait for 50 ns;

    KEY <= "111";

    wait for 50 ns;

    KEY <= "011";

    wait for 50 ns;

    WAIT;

    END PROCESS init;

    always : PROCESS

    -- optional sensitivity list

    -- ( )

    -- variable declarations

    BEGIN

    -- code executes for every event on sensitivity list

    WAIT;

    END PROCESS always;

    END test_vga_arch;
  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    11 years ago

    The code works when I compile and then test it on the DE-2 board and I can change the colors on my computer screen.

  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    11 years ago

    A testbench is a piece of code that you can see as a testing environment. You take some signal generators, and current/voltage meters and probe every signal you like (!no variables). In order to do this you have to put some signals on the inputs of the level you want to test. For this you use a testbench.

    Try to look deeper in your design. How far do your signals carry? E.g. The 25 clock. Add this clock to the waveform and see if it works. If needs be you can do this for every signal by adding them in this way: "add wave top-level/lower_levels/signal_name".

    Your simulation may have a problem in an incomplete sensitivity list, but I haven't checked this.
  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    11 years ago

    I'm still having trouble with my simulation. I'll try to talk with my instructor at the university.
