Hello, I'm using a Max V cpld on quartus, I tested my code on quartus with modelsim, it's working...and now I'm working on dev kit Max V but I didn't have any result... my question is how i can put my test bench on dev kit ( cpld) thank you

Hi,

Testbench module is defined without ports & used for functionality check/simulation of the design(using simulation tools) which is defined with input & output ports so compile the design, perform pin assignments & generate programming files for the design using full compilation & eventually load into the kit.

please refer the below link for reference.

https://www.youtube.com/watch?v=j5RGAW72o6A

Regards,

Vicky

Thank you

I already did all this things but I don't have any result on my scoope

Hi,

Could you please elaborate more about your observation with below points?

1. pin assignment for clock, IOs etc
2. successful compilation/programming file generation
3. Device detection & successful program in Intel programmer
4. observation of status LEDs.

Regards,

Vicky

Hi,

Have you resolved the issue?

May I know any update or Should I consider that case to be closed?

Regards,

Vicky

"Hi,

Could you please elaborate more about your observation with below points?

1. pin assignment for clock, IOs etc
2. successful compilation/programming file generation
3. Device detection & successful program in Intel programmer
4. observation of status LEDs.

Regards,

Vicky" ------------- it`s difficult to support without your inputs & observation so if possible provide at least all screenshots.

Regards,

Vicky

Thank you!

here it's my program :

LIBRARY ieee;

USE ieee.std_logic_1164.all;

USE ieee.std_logic_unsigned.all;

ENTITY pwm1 IS

GENERIC(

sys_clk : INTEGER := 100_000_000; --system clock frequency in Hz

pwm_freq : INTEGER := 600_000; --PWM switching frequency in Hz

bits_resolution : INTEGER := 8; --bits of resolution setting the duty cycle

phases : INTEGER := 4); --number of output pwms and phases

PORT(

clk : IN STD_LOGIC; --system clock

reset_n : IN STD_LOGIC; --asynchronous reset

ena : IN STD_LOGIC; --latches in new duty cycle

duty : IN STD_LOGIC_VECTOR(bits_resolution-1 DOWNTO 0); --duty cycle

pwm_out : OUT STD_LOGIC_VECTOR(phases-1 DOWNTO 0)); --pwm outputs

--pwm_n_out : OUT STD_LOGIC_VECTOR(phases-1 DOWNTO 0)); --pwm inverse outputs

END pwm1;

ARCHITECTURE logic OF pwm1 IS

CONSTANT period : INTEGER := sys_clk/pwm_freq; --number of clocks in one pwm period

TYPE counters IS ARRAY (0 TO phases-1) OF INTEGER RANGE 0 TO period - 1; --data type for array of period counters

SIGNAL count : counters := (OTHERS => 0); --array of period counters

SIGNAL half_duty_new : INTEGER RANGE 0 TO period/2 := 0; --number of clocks in 1/2 duty cycle

TYPE half_duties IS ARRAY (0 TO phases-1) OF INTEGER RANGE 0 TO period/2; --data type for array of half duty values

SIGNAL half_duty : half_duties := (OTHERS => 0); --array of half duty values (for each phase)

BEGIN

PROCESS(clk, reset_n)

BEGIN

IF(reset_n = '0') THEN --asynchronous reset

count <= (OTHERS => 0); --clear counter

pwm_out <= (OTHERS => '0'); --clear pwm outputs

-- pwm_n_out <= (OTHERS => '0'); --clear pwm inverse outputs

ELSIF(clk'EVENT AND clk = '1') THEN --rising system clock edge

IF(ena = '1') THEN --latch in new duty cycle

half_duty_new <= conv_integer(duty)*period/(2**bits_resolution)/2; --determine clocks in 1/2 duty cycle

END IF;

FOR i IN 0 to phases-1 LOOP --create a counter for each phase

IF(count(0) = period - 1 - i*period/phases) THEN --end of period reached

count(i) <= 0; --reset counter

half_duty(i) <= half_duty_new; --set most recent duty cycle value

ELSE --end of period not reached

count(i) <= count(i) + 1; --increment counter

END IF;

END LOOP;

FOR i IN 0 to phases-1 LOOP --control outputs for each phase

IF(count(i) = half_duty(i)) THEN --phase's falling edge reached

pwm_out(i) <= '0'; --deassert the pwm output

--pwm_n_out(i) <= '0' after 100 ns; --assert the pwm inverse output

ELSIF(count(i) = period-half_duty(i)) THEN --phase's rising edge reached

pwm_out(i) <= '1';

--pwm_n_out(i) <= '1' after 100 ns; --assert the pwm output

--deassert the pwm inverse output

END IF;

END LOOP;

END IF;

END PROCESS;

END logic;

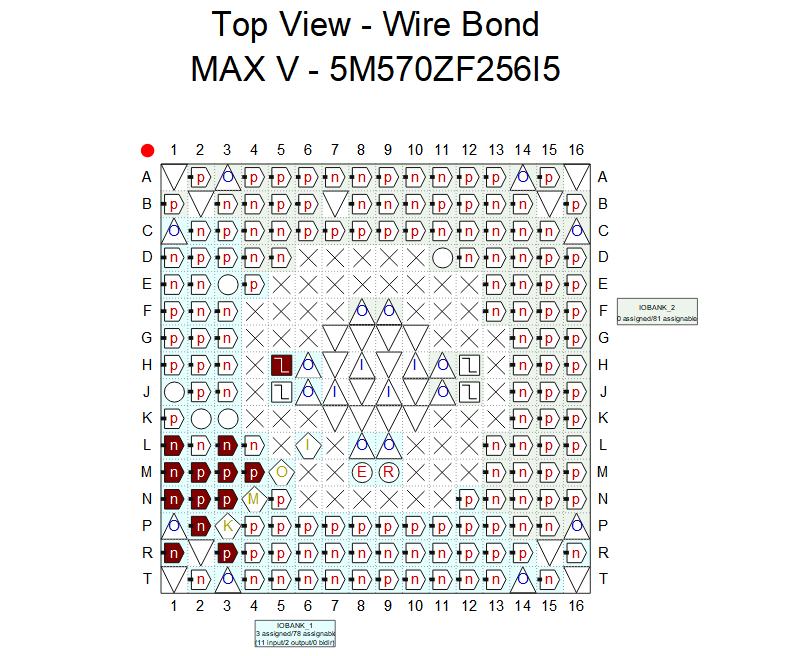

here it's my pin assignment

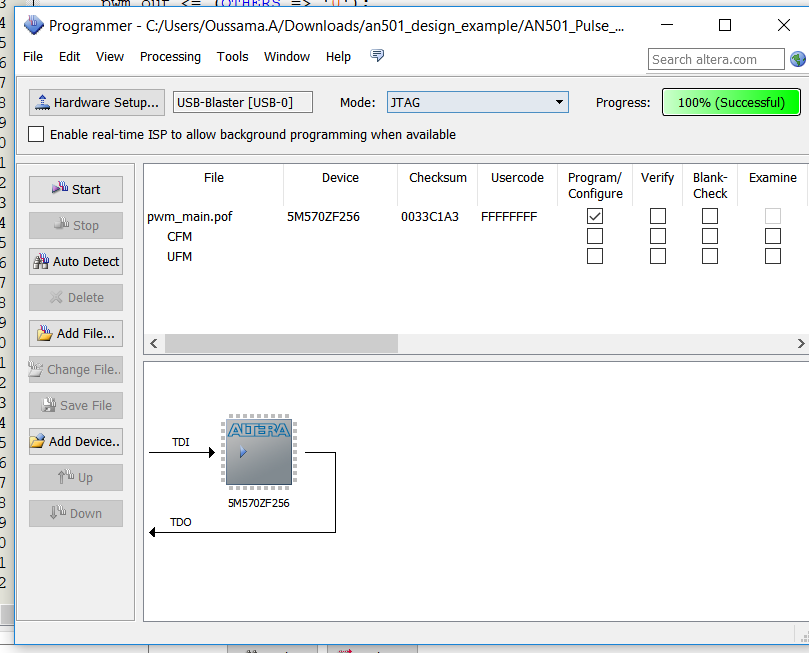

I'm generating the compilation/programming file very well and the device is programmed via usb blaster
