HDL Workflow Advisor

Hi all ,

My name is İrfan. I am new to Simulink and Altera blocks.

I want to write the systems I use first.

1) Altera cyclone IV E (EP4CE6E22C8N)

2) Matlab R2015a and R2017b

3) Quartus II Web Edition 14.0.0.200 (64-bit)

I am using JTAG communication between fpga and matlab. At the beginning I applied the following respectively.

1) I defined the tool path using the "hdlsetuptoolpath" function. I checked the command line with " !quartus " and no problem.

2) Then, open the "HDL Workflow Advisor" window and select the synthesis tool, as "Altera Quartus II".

3) I chose the target workflow as " FPGA- in-the-Loop ". I wanted to create it myself with the "Create custom board" tab, since there is no fpga in the target platform list.

4) In the "Basic Information" tab, I selected the fpga and clicked "Next" to switch to the "interfaces" tab.

5) Here, I chose "ALTERA JTAG" by clicking "FIL interface". In the "FPGA Input Clock" section, I selected the frequency 50 MHz, 23.pin for "Clock" and 25.pin for "Reset" and clicked "NEXT".

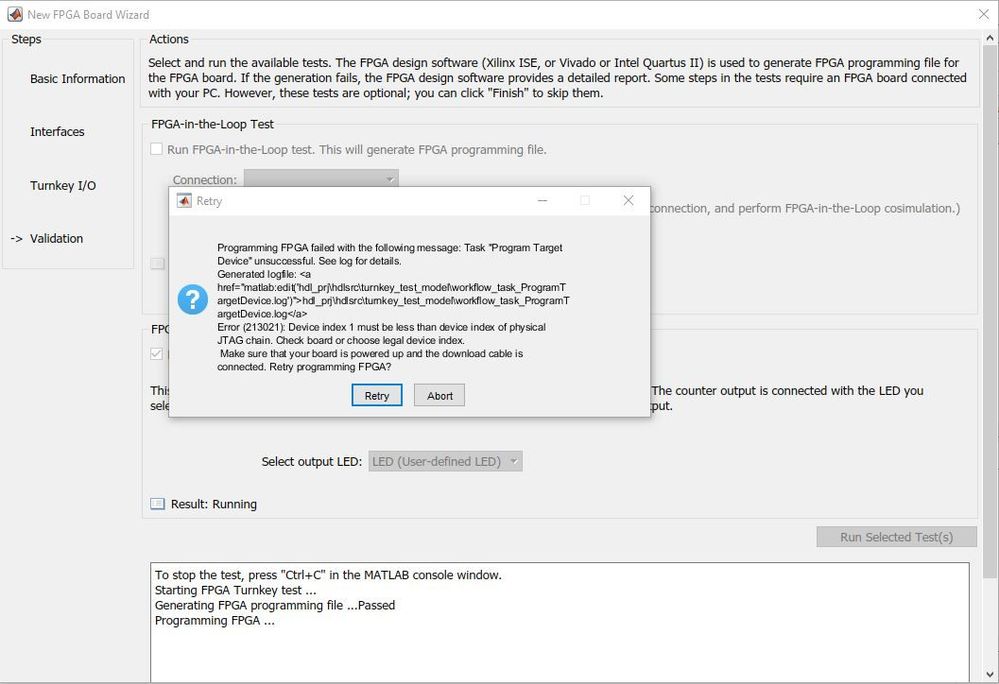

6) I selected the communication format "JTAG" and finished the test phase successfully by clicking "Run Selected Test (s)".

After all these stages, when I started to generate hdl code, I get the error that the Quartus program does not support and cannot synthesize the selected fpga.

Thanks in advance for your help.

Mehmet İrfan Gedik

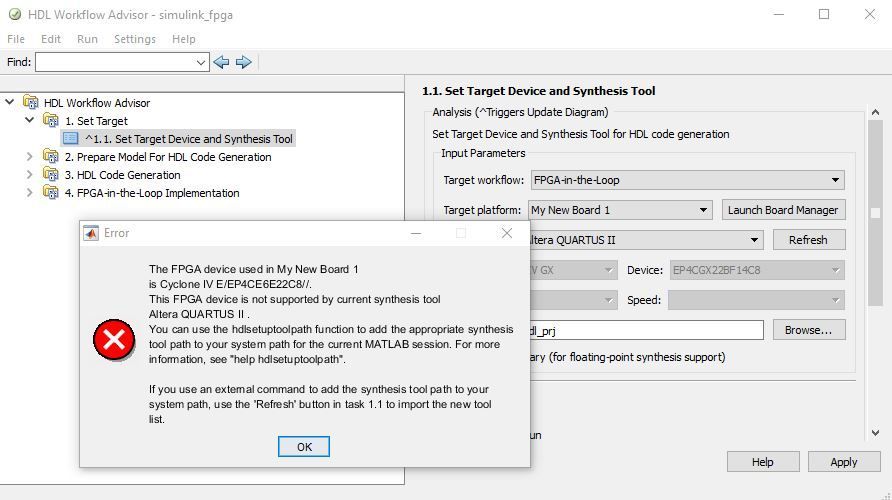

Error (image)

Not : but I can choose this fpga in the quartus program, so the program supports it
