F-Tile PMA Direct PHY - USB3 - Enable per PMA lanes TX and RX ready signal issue

Hello,

We are using DPHY IP configured for USB GEN1&GEN2 - Quartus 23.4

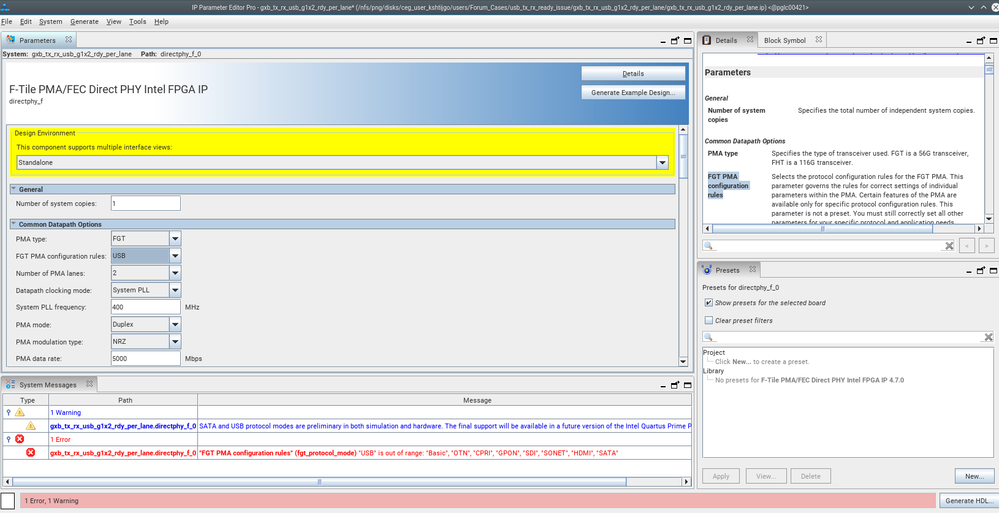

DPHY Configuration : USB , 2 lanes , Enable per PMA lanes TX and RX ready

When training link at GEN1 for 2 lanes it seems that rx_ready of second lane stay de-asserted.

looking at DPHY IP on the following files we found the issue:

*_directphy_f_*.sv

// wire [num_sys_cop-1:0] int_rx_ready; // Generated IP

wire [ready_width-1:0] int_rx_ready; // Should Be

directphy_f_sip_*.sv

//.dphy_reset_status_tx_ready_i (tx_ready), // Generated IP

//.dphy_reset_status_rx_ready_i (rx_ready), // Generated IP

.dphy_reset_status_tx_ready_i (&tx_ready), // Should Be

.dphy_reset_status_rx_ready_i (&rx_ready), // Should Be

Attached DPHY IP with READY signal issue.

Just to mention that although I fixed it the RTL it is functionally not working well.

rx_ready signal of second lane fail unexpectedly and afterward rx_ready of first lane fail also.

Thanks,

Shaul
