Error: fpga compiler command failed with exit code 1 (use -v to see invocation)

Hello HubertG

Operating System : Ubuntu

OS version : 20.04.4 LTS

Quartus (Lite/Standard/Pro) : Standard

Quartus Version : Intel Tiber Developer Cloud for onaAPI - standar

Possible if you could provide your design file for us to better debug on the issue ?

Example "loop_coalesce":

//==============================================================
// Copyright Intel Corporation
//
// SPDX-License-Identifier: MIT
// =============================================================
#include <sycl/sycl.hpp>
#include <sycl/ext/intel/fpga_extensions.hpp>
#include <iomanip>
#include <iostream>

#include "exception_handler.hpp"

using namespace sycl;

// Matrix dimensions
constexpr size_t kNumRows = 4;
constexpr size_t kNumCols = 4;
constexpr size_t kNumElements = kNumRows * kNumCols;

// Forward declare the kernel name in the global scope.
// This FPGA best practice reduces name mangling in the optimization reports.
template <int N> class KernelCompute;

// The kernel implements a matrix multiplication.
// This is not meant to be a high performance implementation on FPGA!
// It's just a simple kernel with nested loops to illustrate loop coalescing.
template <int coalesce_factor>
void MatrixMultiply(const std::vector<float> &matrix_a,
const std::vector<float> &matrix_b,
std::vector<float> &res) {
#if FPGA_SIMULATOR
auto selector = sycl::ext::intel::fpga_simulator_selector_v;
#elif FPGA_HARDWARE
auto selector = sycl::ext::intel::fpga_selector_v;
#else // #if FPGA_EMULATOR
auto selector = sycl::ext::intel::fpga_emulator_selector_v;
#endif

try {
auto prop_list = property_list{property::queue::enable_profiling()};

queue q(selector, fpga_tools::exception_handler, prop_list);

auto device = q.get_device();

std::cout << "Running on device: "
<< device.get_info<sycl::info::device::name>().c_str()
<< std::endl;

buffer buffer_in_a(matrix_a);
buffer buffer_in_b(matrix_b);
buffer buffer_out(res);

event e = q.submit([&](handler &h) {
accessor accessor_matrix_a(buffer_in_a, h, read_only);
accessor accessor_matrix_b(buffer_in_b, h, read_only);
accessor accessor_res(buffer_out, h, write_only, no_init);

// The kernel_args_restrict promises the compiler that this kernel's
// accessor arguments won't alias (i.e. non-overlapping memory regions).
h.single_task<class KernelCompute<coalesce_factor>>(
[=]() [[intel::kernel_args_restrict]] {
size_t idx = 0;
float a[kNumRows][kNumCols];
float b[kNumRows][kNumCols];
float tmp[kNumRows][kNumCols];

// The loop_coalesce instructs the compiler to attempt to "merge"
// coalesce_factor loop levels of this nested loop together.
// For example, a coalesce_factor of 2 turns this into a single loop.
[[intel::loop_coalesce(coalesce_factor)]]
for (size_t i = 0; i < kNumRows; ++i) {
for (size_t j = 0; j < kNumCols; ++j) {
a[i][j] = accessor_matrix_a[idx];
b[i][j] = accessor_matrix_b[idx];
tmp[i][j] = 0.0;
idx++;
}
}

// Applying loop_coalesce to the outermost loop of a deeply nested
// loop results coalescing from the outside in.
// For example, a coalesce_factor of 2 coalesces the "i" and "j" loops,
// making a doubly nested loop.
[[intel::loop_coalesce(coalesce_factor)]]
for (size_t i = 0; i < kNumRows; ++i) {
for (size_t j = 0; j < kNumCols; ++j) {
float sum = 0.0f;
for (size_t k = 0; k < kNumCols; ++k) {
sum += a[i][k] * b[k][j];
}
tmp[i][j] = sum;
}
}

idx = 0;
[[intel::loop_coalesce(coalesce_factor)]]
for (size_t i = 0; i < kNumRows; ++i) {
for (size_t j = 0; j < kNumCols; ++j) {
accessor_res[idx] = tmp[i][j];
idx++;
}
}

});
});

} catch (exception const &exc) {
std::cerr << "Caught synchronous SYCL exception:\n" << exc.what() << '\n';
if (exc.code().value() == CL_DEVICE_NOT_FOUND) {
std::cerr << "If you are targeting an FPGA, please ensure that your "
"system has a correctly configured FPGA board.\n";
std::cerr << "Run sys_check in the oneAPI root directory to verify.\n";
std::cerr << "If you are targeting the FPGA emulator, compile with "
"-DFPGA_EMULATOR.\n";
}
std::terminate();
}
}

int main() {
std::vector<float> matrix_a(kNumElements);
std::vector<float> matrix_b(kNumElements);
std::vector<float> matrix_output_no_col(kNumElements);
std::vector<float> matrix_output(kNumElements);

// Specify the matrices to be multiplied
for (size_t i = 0; i < kNumRows; i++) {
size_t pos = i * kNumCols;
// Initialize A as identity matrix
matrix_a[i + pos] = 1.0;
for (size_t j = 0; j < kNumCols; j++) {
matrix_b[pos + j] = i * j + 1;
}
}

// Two versions of the simple matrix multiply kernel will be enqueued:
// - with coalesce_factor=1 (i.e. no loop coalescing)
// - with coalesce_factor=2 (coalesce two nested levels)
MatrixMultiply<1>(matrix_a, matrix_b, matrix_output_no_col);
MatrixMultiply<2>(matrix_a, matrix_b, matrix_output);

// Correctness check
bool passed = true;
for (size_t i = 0; i < kNumRows; i++) {
size_t pos = i * kNumCols;
for (size_t j = 0; j < kNumCols; j++) {
float val_noCol = matrix_output_no_col[pos + j];
float val = matrix_output[pos + j];
if (val_noCol != i * j + 1 || val != i * j + 1) {
std::cout << "FAILED: The results are incorrect\n";
passed = false;
}
}
}

if (passed) {
std::cout << "PASSED: The results are correct\n";
return 0;
} else {
std::cout << "FAILED\n";
return -1;
}
}

---------------------------------------------------------------------------------------------------------------------------

Step by step:

1.- qsub -I -l walltime=24:00:00 -l nodes=1:fpga_runtime:stratix10:ppn=2 -d .

2.- cd oneAPI-samples/DirectProgramming/C++SYCL_FPGA/Tutorials/Features/loop_coalesce/build/

3.- make fpga_emu

4.- ./loop_coalesce.fpga_emu
Running on device: Intel(R) FPGA Emulation Device
Running on device: Intel(R) FPGA Emulation Device
PASSED: The results are correct

--------------------------------------------------------------------------------------------------------

Then when I try to compile and run in the FPGA stratix 10 with the next steps...

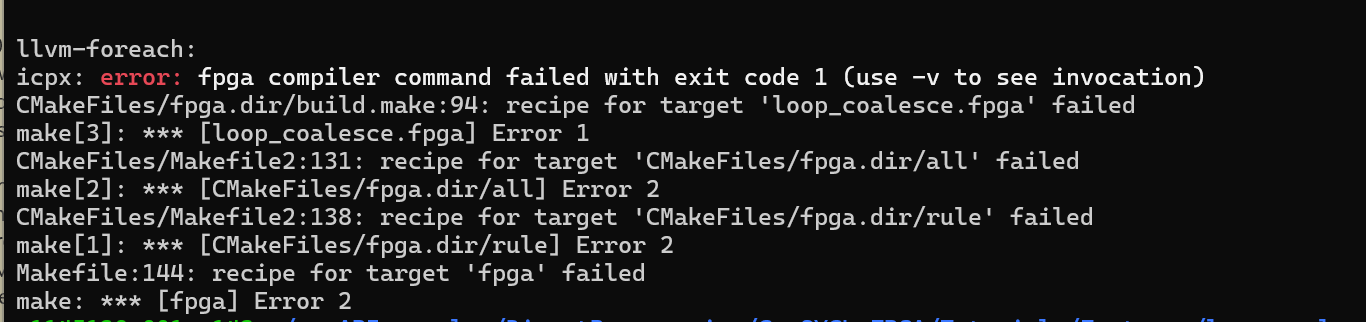

1.1.- make fpga

llvm-foreach:
icpx: error: fpga compiler command failed with exit code 1 (use -v to see invocation)
CMakeFiles/fpga.dir/build.make:94: recipe for target 'loop_coalesce.fpga' failed
make[3]: *** [loop_coalesce.fpga] Error 1
CMakeFiles/Makefile2:131: recipe for target 'CMakeFiles/fpga.dir/all' failed
make[2]: *** [CMakeFiles/fpga.dir/all] Error 2
CMakeFiles/Makefile2:138: recipe for target 'CMakeFiles/fpga.dir/rule' failed
make[1]: *** [CMakeFiles/fpga.dir/rule] Error 2
Makefile:144: recipe for target 'fpga' failed
make: *** [fpga] Error 2

My problem ocurred when I want to used a node to FPGA, Can you help me please???

Thanks...

Hello BoonBeng

Yes, the simulation compilation was completed successfully.

https://github.com/oneapi-src/oneAPI-samples/tree/master/DirectProgramming/C%2B%2BSYCL_FPGA/Tutorials/Features/loop_coalesce

This is the URL of referense.

Thanks. Regards.-
