DDR2 SDRAM on Stratix III (DE3)

Hello,

i have a DE3 board in which i want to includ the SDRAM. I created a Nios-uController and the DDR2 controller in the Megawizaard-plugin-manager. But how do i connect the IP-core with the Nios-cpu so i can use it?

Is there a tutorial how to do this?

thanks i n advance

5 Replies

  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    15 years ago

    I'd use the SOPC builder, where you can create both modules and then connect them to eachothers with Avalon bus.

  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    15 years ago

    Ok, i tried it in SOPC Builder now.

    I insert a

    -CPU

    -Onchipmem

    -JtagUart

    -Memmorycontroller

    -IOs for buttons and leds

    I now can compile the SOPC.

    the DDR2 settigns i made like they are in the DDR2 example.

    But when i Insert the NIOS-System in a Blockdiagramm it hat different amounts of ports then the one in the example has.

    these are the Pins i get when i use the DE§-SsystemBuilder to generate the ddr2 Pins:


Button
Button
Button
Button
CLK_OUT
EXT_CLK
JVC_CLK
JVC_CS
JVC_DATAIN
JVC_DATAOUT
LEDB
LEDB
LEDB
LEDB
LEDB
LEDB
LEDB
LEDB
LEDG
LEDG
LEDG
LEDG
LEDG
LEDG
LEDG
LEDG
LEDR
LEDR
LEDR
LEDR
LEDR
LEDR
LEDR
LEDR
OSC1_50
OSC2_50
OSC_BA
OSC_BB
OSC_BC
OSC_BD
OTG_A
OTG_A
OTG_A
OTG_A
OTG_A
OTG_A
OTG_A
OTG_A
OTG_A
OTG_A
OTG_A
OTG_A
OTG_A
OTG_A
OTG_A
OTG_A
OTG_A
OTG_CS_n
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_D
OTG_DC_DACK
OTG_DC_DREQ
OTG_DC_IRQ
OTG_HC_DACK
OTG_HC_DREQ
OTG_HC_IRQ
OTG_OE_n
OTG_RESET_n
OTG_WE_n
mem_SA
mem_SA
mem_SCL
mem_SDA
mem_addr
mem_addr
mem_addr
mem_addr
mem_addr
mem_addr
mem_addr
mem_addr
mem_addr
mem_addr
mem_addr
mem_addr
mem_addr
mem_addr
mem_addr
mem_addr
mem_ba
mem_ba
mem_ba
mem_cas_n
mem_cke
mem_cke
mem_clk
mem_clk
mem_clk_n
mem_clk_n
mem_cs_n
mem_cs_n
mem_dm
mem_dm
mem_dm
mem_dm
mem_dm
mem_dm
mem_dm
mem_dm
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dq
mem_dqs
mem_dqs
mem_dqs
mem_dqs
mem_dqs
mem_dqs
mem_dqs
mem_dqs
mem_dqsn
mem_dqsn
mem_dqsn
mem_dqsn
mem_dqsn
mem_dqsn
mem_dqsn
mem_dqsn
mem_odt
mem_odt
mem_ras_n
mem_we_n

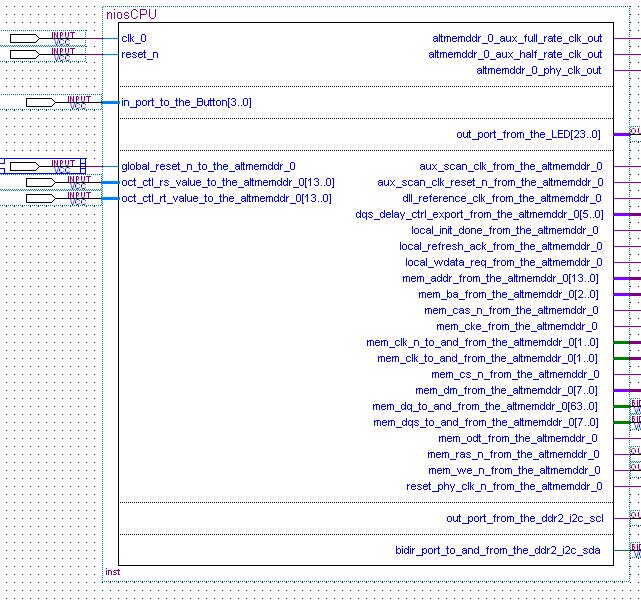

    but my Nios-System looks like this:

    http://robotik.dyyyh.de/fpga/nios.JPG

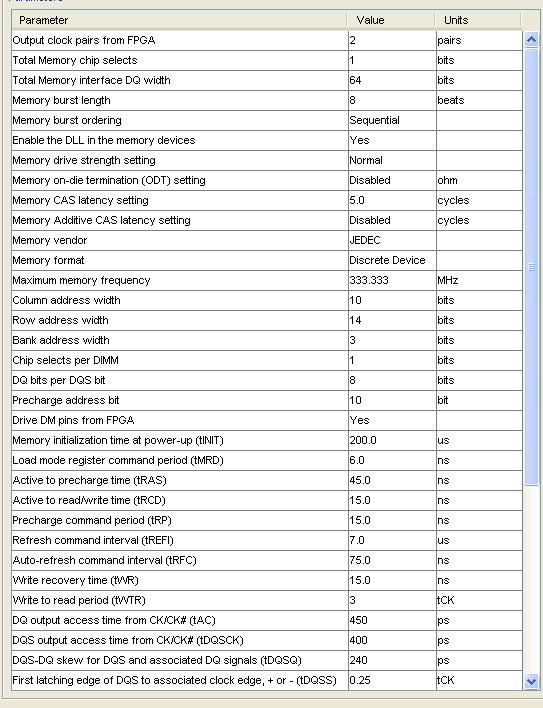

    in the ddr2 settings i made these settings: (i took these setting from the example-projekt which doesnt run :/

    http://robotik.dyyyh.de/fpga/ddr2.JPG

    i dont know which pins i have to connect now..

    The ram is a 1GB DDR2 SODIMM 667 from Transcend 509454-2608(which was included in whith the de3 board, but no datatsheet)

    could someone please help me, or is there a beginner tutorial for ddr2 on Stratix DE3 ??
  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    15 years ago

    The CD contains a DDR2 example in the DE3_demonstrations folder. Here are the connections to/from the NIOS given in verilog:

    .clk(OSC1_50),

    .reset_n(system_reset_n),

    .in_port_to_the_pio_button(Button),

    .out_port_from_the_pio_led({LEDR, LEDG, LEDB}),

    .global_reset_n_to_the_altmemddr(system_reset_n),

    .local_init_done_from_the_altmemddr(),

    .local_refresh_ack_from_the_altmemddr(),

    .local_wdata_req_from_the_altmemddr(),

    .mem_addr_from_the_altmemddr(mem_addr[12:0]),

    .mem_ba_from_the_altmemddr(mem_ba[1:0]),

    .mem_cas_n_from_the_altmemddr(mem_cas_n),

    .mem_cke_from_the_altmemddr(mem_cke[0]),

    .mem_clk_n_to_and_from_the_altmemddr(mem_clk_n),

    .mem_clk_to_and_from_the_altmemddr(mem_clk),

    .mem_cs_n_from_the_altmemddr(mem_cs_n[0]),

    .mem_dm_from_the_altmemddr(mem_dm),

    .mem_dq_to_and_from_the_altmemddr(mem_dq),

    .mem_dqs_to_and_from_the_altmemddr(mem_dqs),

    .mem_dqsn_to_and_from_the_altmemddr(mem_dqsn),

    .mem_odt_from_the_altmemddr(mem_odt[0]),

    .mem_ras_n_from_the_altmemddr(mem_ras_n),

    .mem_we_n_from_the_altmemddr(mem_we_n),

    .oct_ctl_rs_value_to_the_altmemddr(),

    .oct_ctl_rt_value_to_the_altmemddr(),

    .reset_phy_clk_n_from_the_altmemddr(),

    .out_port_from_the_ddr2_i2c_scl(mem_SCL),

    .bidir_port_to_and_from_the_ddr2_i2c_sda(mem_SDA)
  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    15 years ago

    I have the same problem witk DDR2 1GB added with board DE3.

    Do someone know how to set memory.
  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor
    15 years ago

    .global_reset_n_to_the_altmemddr(system_reset_n),

    .local_init_done_from_the_altmemddr(),

    .local_refresh_ack_from_the_altmemddr(),

    .local_wdata_req_from_the_altmemddr(),

    .mem_addr_from_the_altmemddr(mem_addr),

    .mem_ba_from_the_altmemddr(mem_ba),

    .mem_cas_n_from_the_altmemddr(mem_cas_n),

    .mem_cke_from_the_altmemddr(mem_cke),

    .mem_clk_n_to_and_from_the_altmemddr(mem_clk_n),

    .mem_clk_to_and_from_the_altmemddr(mem_clk),

    .mem_cs_n_from_the_altmemddr(mem_cs_n),

    .mem_dm_from_the_altmemddr(mem_dm),

    .mem_dq_to_and_from_the_altmemddr(mem_dq),

    .mem_dqs_to_and_from_the_altmemddr(mem_dqs),

    .mem_dqsn_to_and_from_the_altmemddr(mem_dqsn),

    .mem_odt_from_the_altmemddr(mem_odt),

    .mem_ras_n_from_the_altmemddr(mem_ras_n),

    .mem_we_n_from_the_altmemddr(mem_we_n),

    .oct_ctl_rs_value_to_the_altmemddr(),

    .oct_ctl_rt_value_to_the_altmemddr(),

    .reset_phy_clk_n_from_the_altmemddr(),

    see this post: http://www.alteraforum.com/forum/showthread.php?t=23412
