Arria 10 AS x4 Mode

Dear, Sir

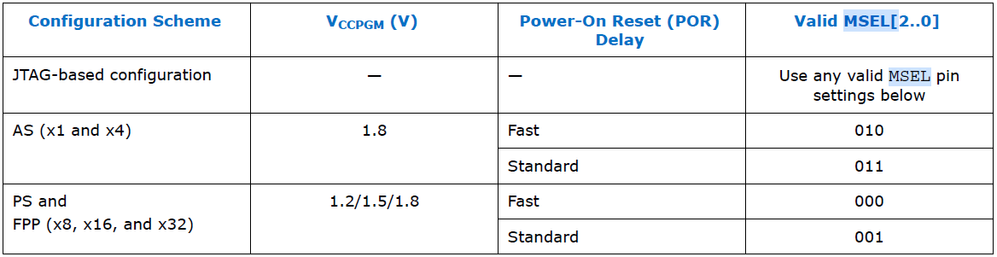

We know that AS x4 mode and x1 mode can be configured by MSEL pin.

x4 and x1 AS mode share the same MSEL pin.

Question is: how does FPGA know it should boot with x1 bit width or x4 bit width ?

4 Replies

  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    Hello,
    please avoid cross-posting of the same question in multiple forums.

    x4 AS mode is set in the configuration stream, specified in Quartus Device and Pin Options. Configuration read starts always in x1 mode. If x4 mode setting is found in the image, the configuration logic switches to x4.

    Regrads

    Frank

  • NazrulNaim_Intel's avatar
    NazrulNaim_Intel
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi,

    Thank you for reaching out. Allow me some time to look into your issue. I shall come back to you with findings.

    Thank you for your patience.

    Best Regards,

    Nazrul Naim


  • NazrulNaim_Intel's avatar
    NazrulNaim_Intel
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hello,


    As per 'FvM' have replied. The reply can be accepted as answer. 'Configuration read starts always in x1 mode. If x4 mode setting is found in the image, the configuration logic switches to x4.'


    Hope that answers your question.


    Regards,

    Nazrul Naim
