10CL080YF780I7G BSDL FILE

Hi, We are currently using your 10CL080YF780I7G in our design. in the BSDL file, pin F4 is defined as a linkage bit, which prevents us from toggling it through boundary scan. However, in our desig...
Configuration
FakhrulA_altera's avatar
FakhrulA_altera
Icon for Regular Contributor rankRegular Contributor
1 hour ago

Hello,


Thank you for reporting this issue and sharing the details.

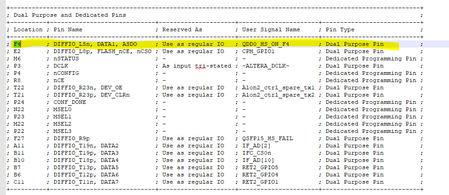

We understand that Quartus allows pin F4 to be used as an output, but the BSDL file defines it as linkage. Because of this, the pin cannot be controlled through boundary scan.


We will check with our internal team to confirm whether this is a device limitation or an issue with the BSDL file. We will also ask them to review pin E2 for 10CL040YF484I7G and 10CL016YF484I7G.


For now, please do not change the BSDL file manually. Could you please share the BSDL filename or download date, and the Quartus Prime version you are using?



Regards,
Fakhrul
