New ContributorHello, where can I find the BSDL file for the 256 pin version of the 10CL010Y? I can find the one for 10CL010 but this is incorrect for the silicon I am using and tries to test some GND pins.
Thanks
Regular ContributorMay I know what is the full device part number?
New ContributorSure its 10CL010YU256I7G
Super ContributorThere's only one 10CL010 device in 256-pin package, the BSDL file is here Intel Cyclone 10 LP Boundary Scan Description Language BSDL Files |...
New Contributoryes, but this appears to be incorrect for the 10CL010YU256I7G
Super ContributorWhich BSDL pins do you see in conflict with actual pin mapping?
New ContributorThere are multiple ones, for instance J11 in the BSDL file is entered as...
--BSC group 87 for I/O pin J11
"261 (BC_1, IOJ11, input, X)," &
"262 (BC_1, *, control, 1)," &
"263 (BC_1, IOJ11, output3, X, 262, 1, Z)," &

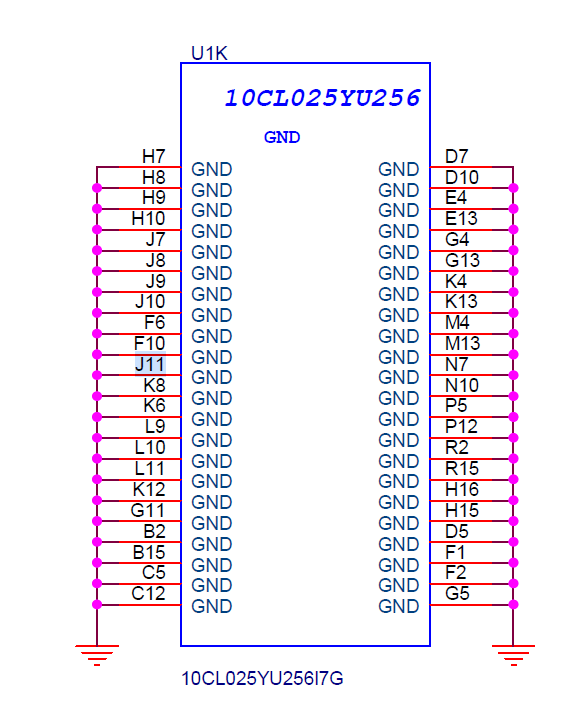

But on the Intel ref design schematic (doc 150-0321321-A1) it's shown as being GND
I know this is for the 10CL025Y version but they are meant to be pin compatible?
Super ContributorThe 256 pin devices are migration-compatible, not pin-identical. Comparing 10CL010 and 10CL025 pinout would have clarified.
J11 is one of the pins that has to be connected to ground in migration compatible design although it's IO in 10CL010.
