Need help in NIOS Code:How to stop counter when the FIFO is almost full ?

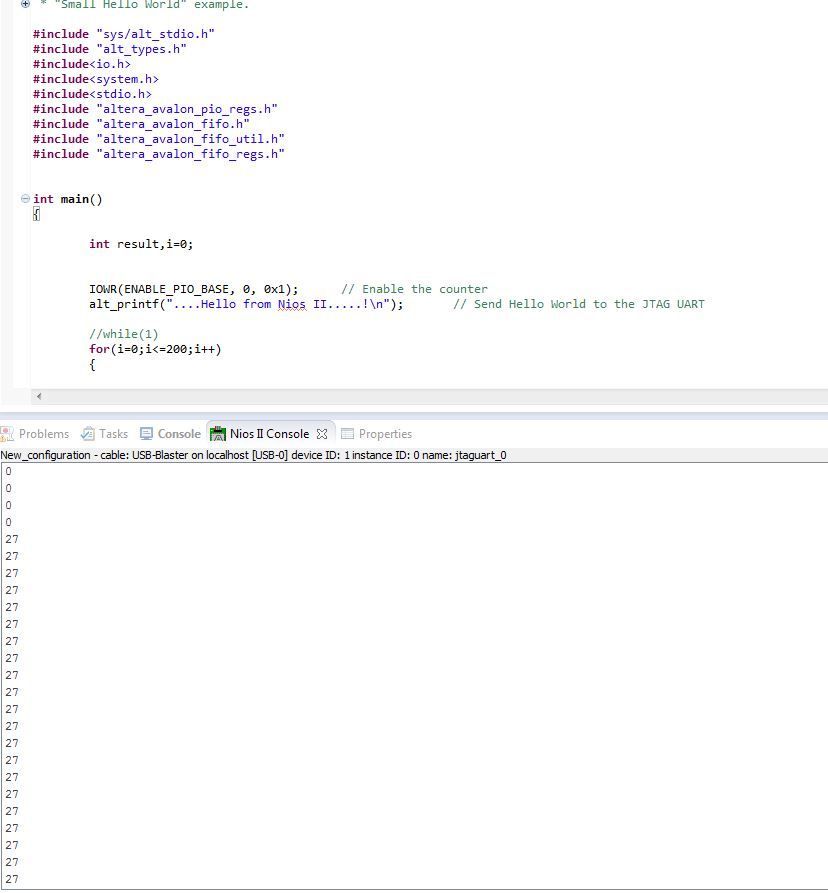

I would like to have some advice to write the c code in NIOS. The counter must sends bits continuously to FIFO but the counter must stops when the FIFO is almost full. When the FIFO returns almost_empty the counter must restarts.

I have pasted FIFO files. Thanks in advance.

HEADER FILE
#ifndef __ALTERA_AVALON_FIFO_REGS_H__
#define __ALTERA_AVALON_FIFO_REGS_H__

#include <io.h>

#define ALTERA_AVALON_FIFO_OTHER_INFO_REG                    1
#define ALTERA_AVALON_FIFO_DATA_REG                          0

#define ALTERA_AVALON_FIFO_LEVEL_REG                         0
#define ALTERA_AVALON_FIFO_STATUS_REG                        1
#define ALTERA_AVALON_FIFO_EVENT_REG                         2
#define ALTERA_AVALON_FIFO_IENABLE_REG                       3
#define ALTERA_AVALON_FIFO_ALMOSTFULL_REG                    4
#define ALTERA_AVALON_FIFO_ALMOSTEMPTY_REG                   5

// Read slave
#define IORD_ALTERA_AVALON_FIFO_DATA(base)                   \
        IORD(base, ALTERA_AVALON_FIFO_DATA_REG)

#define IORD_ALTERA_AVALON_FIFO_OTHER_INFO(base)             \
        IORD(base, ALTERA_AVALON_FIFO_OTHER_INFO_REG)

// Write slave
#define IOWR_ALTERA_AVALON_FIFO_DATA(base, data)             \
        IOWR(base, ALTERA_AVALON_FIFO_DATA_REG, data)

#define IOWR_ALTERA_AVALON_FIFO_OTHER_INFO(base, data)       \
        IOWR(base, ALTERA_AVALON_FIFO_OTHER_INFO_REG, data)

// Control slave
#define IORD_ALTERA_AVALON_FIFO_LEVEL(base)                  \
        IORD(base, ALTERA_AVALON_FIFO_LEVEL_REG)

#define IORD_ALTERA_AVALON_FIFO_STATUS(base)                 \
        IORD(base, ALTERA_AVALON_FIFO_STATUS_REG)

#define IORD_ALTERA_AVALON_FIFO_EVENT(base)                  \
        IORD(base, ALTERA_AVALON_FIFO_EVENT_REG)

#define IORD_ALTERA_AVALON_FIFO_IENABLE(base)                \
        IORD(base, ALTERA_AVALON_FIFO_IENABLE_REG)

#define IORD_ALTERA_AVALON_FIFO_ALMOSTFULL(base)             \
        IORD(base, ALTERA_AVALON_FIFO_ALMOSTFULL_REG)

#define IORD_ALTERA_AVALON_FIFO_ALMOSTEMPTY(base)            \
        IORD(base, ALTERA_AVALON_FIFO_ALMOSTEMPTY_REG)

#define IOWR_ALTERA_AVALON_FIFO_EVENT(base, data)            \
        IOWR(base, ALTERA_AVALON_FIFO_EVENT_REG, data)

#define IOWR_ALTERA_AVALON_FIFO_IENABLE(base, data)          \
        IOWR(base, ALTERA_AVALON_FIFO_IENABLE_REG, data)

#define IOWR_ALTERA_AVALON_FIFO_ALMOSTFULL(base, data)       \
        IOWR(base, ALTERA_AVALON_FIFO_ALMOSTFULL_REG, data)

#define IOWR_ALTERA_AVALON_FIFO_ALMOSTEMPTY(base, data)      \
        IOWR(base, ALTERA_AVALON_FIFO_ALMOSTEMPTY_REG, data)

#define ALTERA_AVALON_FIFO_EVENT_F_MSK    (0x01)
#define ALTERA_AVALON_FIFO_EVENT_E_MSK    (0x02)
#define ALTERA_AVALON_FIFO_EVENT_AF_MSK   (0x04)
#define ALTERA_AVALON_FIFO_EVENT_AE_MSK   (0x08)
#define ALTERA_AVALON_FIFO_EVENT_OVF_MSK  (0x10)
#define ALTERA_AVALON_FIFO_EVENT_UDF_MSK  (0x20)
#define ALTERA_AVALON_FIFO_EVENT_ALL  (0x3F)

#define ALTERA_AVALON_FIFO_STATUS_F_MSK    (0x01)
#define ALTERA_AVALON_FIFO_STATUS_E_MSK    (0x02)
#define ALTERA_AVALON_FIFO_STATUS_AF_MSK   (0x04)
#define ALTERA_AVALON_FIFO_STATUS_AE_MSK   (0x08)
#define ALTERA_AVALON_FIFO_STATUS_OVF_MSK  (0x10)
#define ALTERA_AVALON_FIFO_STATUS_UDF_MSK  (0x20)
#define ALTERA_AVALON_FIFO_STATUS_ALL  (0x3F)

#define ALTERA_AVALON_FIFO_IENABLE_F_MSK    (0x01)
#define ALTERA_AVALON_FIFO_IENABLE_E_MSK    (0x02)
#define ALTERA_AVALON_FIFO_IENABLE_AF_MSK   (0x04)
#define ALTERA_AVALON_FIFO_IENABLE_AE_MSK   (0x08)
#define ALTERA_AVALON_FIFO_IENABLE_OVF_MSK  (0x10)
#define ALTERA_AVALON_FIFO_IENABLE_UDF_MSK  (0x20)
#define ALTERA_AVALON_FIFO_IENABLE_ALL  (0x3F)

#endif /* __ALTERA_AVALON_FIFO_REGS_H__ */
#define ALT_MODULE_CLASS_fifo_0_in_csr altera_avalon_fifo
#define FIFO_0_IN_CSR_AVALONMM_AVALONMM_DATA_WIDTH 32
#define FIFO_0_IN_CSR_AVALONMM_AVALONST_DATA_WIDTH 32
#define FIFO_0_IN_CSR_BASE 0x11000
#define FIFO_0_IN_CSR_BITS_PER_SYMBOL 16
#define FIFO_0_IN_CSR_CHANNEL_WIDTH 8
#define FIFO_0_IN_CSR_ERROR_WIDTH 8
#define FIFO_0_IN_CSR_FIFO_DEPTH 4096
#define FIFO_0_IN_CSR_IRQ 1
#define FIFO_0_IN_CSR_IRQ_INTERRUPT_CONTROLLER_ID 0
#define FIFO_0_IN_CSR_NAME "/dev/fifo_0_in_csr"
#define FIFO_0_IN_CSR_SINGLE_CLOCK_MODE 1
#define FIFO_0_IN_CSR_SPAN 32
#define FIFO_0_IN_CSR_SYMBOLS_PER_BEAT 2
#define FIFO_0_IN_CSR_TYPE "altera_avalon_fifo"
#define FIFO_0_IN_CSR_USE_AVALONMM_READ_SLAVE 1
#define FIFO_0_IN_CSR_USE_AVALONMM_WRITE_SLAVE 1
#define FIFO_0_IN_CSR_USE_AVALONST_SINK 0
#define FIFO_0_IN_CSR_USE_AVALONST_SOURCE 0
#define FIFO_0_IN_CSR_USE_BACKPRESSURE 1
#define FIFO_0_IN_CSR_USE_IRQ 1
#define FIFO_0_IN_CSR_USE_PACKET 1
#define FIFO_0_IN_CSR_USE_READ_CONTROL 0
#define FIFO_0_IN_CSR_USE_REGISTER 0
#define FIFO_0_IN_CSR_USE_WRITE_CONTROL 1


/*
 * fifo_0_out configuration
 *
 */

#define ALT_MODULE_CLASS_fifo_0_out altera_avalon_fifo
#define FIFO_0_OUT_AVALONMM_AVALONMM_DATA_WIDTH 32
#define FIFO_0_OUT_AVALONMM_AVALONST_DATA_WIDTH 32
#define FIFO_0_OUT_BASE 0x11050
#define FIFO_0_OUT_BITS_PER_SYMBOL 16
#define FIFO_0_OUT_CHANNEL_WIDTH 8
#define FIFO_0_OUT_ERROR_WIDTH 8
#define FIFO_0_OUT_FIFO_DEPTH 4096
#define FIFO_0_OUT_IRQ -1
#define FIFO_0_OUT_IRQ_INTERRUPT_CONTROLLER_ID -1
#define FIFO_0_OUT_NAME "/dev/fifo_0_out"
#define FIFO_0_OUT_SINGLE_CLOCK_MODE 1
#define FIFO_0_OUT_SPAN 4
#define FIFO_0_OUT_SYMBOLS_PER_BEAT 2
#define FIFO_0_OUT_TYPE "altera_avalon_fifo"
#define FIFO_0_OUT_USE_AVALONMM_READ_SLAVE 1
#define FIFO_0_OUT_USE_AVALONMM_WRITE_SLAVE 1
#define FIFO_0_OUT_USE_AVALONST_SINK 0
#define FIFO_0_OUT_USE_AVALONST_SOURCE 0
#define FIFO_0_OUT_USE_BACKPRESSURE 1
#define FIFO_0_OUT_USE_IRQ 1
#define FIFO_0_OUT_USE_PACKET 1
#define FIFO_0_OUT_USE_READ_CONTROL 0
#define FIFO_0_OUT_USE_REGISTER 0
#define FIFO_0_OUT_USE_WRITE_CONTROL 1
#ifndef __ALT_FIFO_UTIL_H__
#define __ALT_FIFO_UTIL_H__

#ifdef __cplusplus
extern "C"
{
#endif /* __cplusplus */

#include "altera_avalon_fifo_regs.h"

#define ALTERA_AVALON_FIFO_TYPE (volatile alt_u32*)

int altera_avalon_fifo_init(alt_u32 address, alt_u32 ienable,
  alt_u32 emptymark, alt_u32 fullmark);

int altera_avalon_fifo_read_status(alt_u32 address, alt_u32 mask);
int altera_avalon_fifo_read_ienable(alt_u32 address, alt_u32 mask);
int altera_avalon_fifo_read_almostfull(alt_u32 address);
int altera_avalon_fifo_read_almostempty(alt_u32 address);
int altera_avalon_fifo_read_event(alt_u32 address, alt_u32 mask);
int altera_avalon_fifo_read_level(alt_u32 address);

int altera_avalon_fifo_clear_event(alt_u32 address, alt_u32 mask);
int altera_avalon_fifo_write_ienable(alt_u32 address, alt_u32 mask);
int altera_avalon_fifo_write_almostfull(alt_u32 address, alt_u32 data);
int altera_avalon_fifo_write_almostempty(alt_u32 address, alt_u32 data);

int altera_avalon_fifo_write_fifo(alt_u32 write_address, alt_u32 ctrl_address,
    alt_u32 data);
int altera_avalon_fifo_write_other_info(alt_u32 write_address, alt_u32 ctrl_address,
    alt_u32 data);

int altera_avalon_read_fifo(alt_u32 read_address, alt_u32 ctrl_address, int *data);
int altera_avalon_fifo_read_fifo(alt_u32 read_address, alt_u32 ctrl_address);
int altera_avalon_fifo_read_other_info(alt_u32 read_address);
int altera_avalon_fifo_read_backpressure (alt_u32 read_address);

//Return Codes
#define ALTERA_AVALON_FIFO_OK 0
#define ALTERA_AVALON_FIFO_EVENT_CLEAR_ERROR -1
#define ALTERA_AVALON_FIFO_IENABLE_WRITE_ERROR -2
#define ALTERA_AVALON_FIFO_THRESHOLD_WRITE_ERROR    -3
#define ALTERA_AVALON_FIFO_FULL -4

#ifdef __cplusplus
}
#endif /* __cplusplus */

#endif /* __ALT_FIFO_UTIL_H__ */
