New ContributorImpedance of R-Tile Transmitter

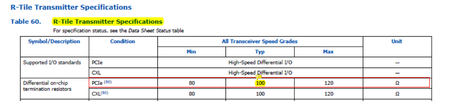

芯片型号为AGIB027R29A1E2VC，R-Tile用作PCIE Gen5的接口，对应的数据信号的发送阻抗是否支持85Ω？在芯片的Datasheet上介绍，其内部的端接电阻的Type值为100Ω。 与PCIE金手指插槽互联，在插槽端的阻抗是85Ω。
Farabi_Altera
Regular Contributor
Regular ContributorHello,
You may use the internal termination resistors with variable values to match your trace impedance of 85 Ohm. You may also refer to Agilex 7 devkit which have the PCIe gold fingers design for your reference. link : https://www.intel.com/content/www/us/en/products/details/fpga/development-kits/agilex/agf027-and-agf023.html
regards,
Farabi
