New ContributorHow can I open schematic window in modelsim 1.6?

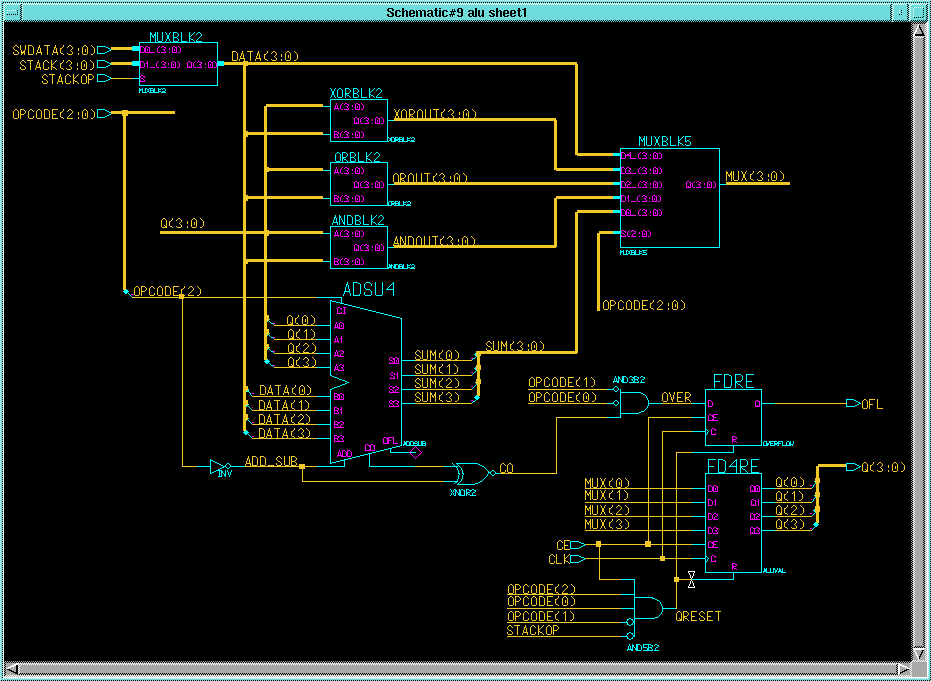

Hi! How can I open schematic window in modelsim 1.6? There is no menu view->schematic like in pictures
Forum Discussion
1 Reply
- RichardT_altera
Super Contributor
As far as I know, ModelSim - Intel FPGA Edition Software does not have the schematic window feature.
You can know more details about ModelSim - Intel FPGA Edition Software through the link below:
https://www.intel.com/content/www/us/en/software/programmable/quartus-prime/model-sim.html
