DK-DEV-AGM039FES: Memory Preset custom file is not available for HBM2e

Hi,
I downloaded the installer package agilex_agmf039r47a1e2vr0_v23.4b79_v1.0.zip for DK-DEV-AGM039FES and looking at the example design bts_hbm2e_bottom_hydra30_seed28.

I found an instruction in the note file (agilex_agmf039r47a1e2vr0_v23.4b79_v1.0/examples/Notes.txt). That is:
1. For bts_hbm2e_bottom_hydra30_seed28 and bts_hbm2e_top_hydra30_seed28, before compile, please open ed_synth.qsys then click 'ed_synth_hbm_fp_0' ip, then click the 'Parameters' -> 'Memory Device Preset Selection' -> 'Memory Preset custom file path for FSP0' to change the qprs file path to your local path.

However,

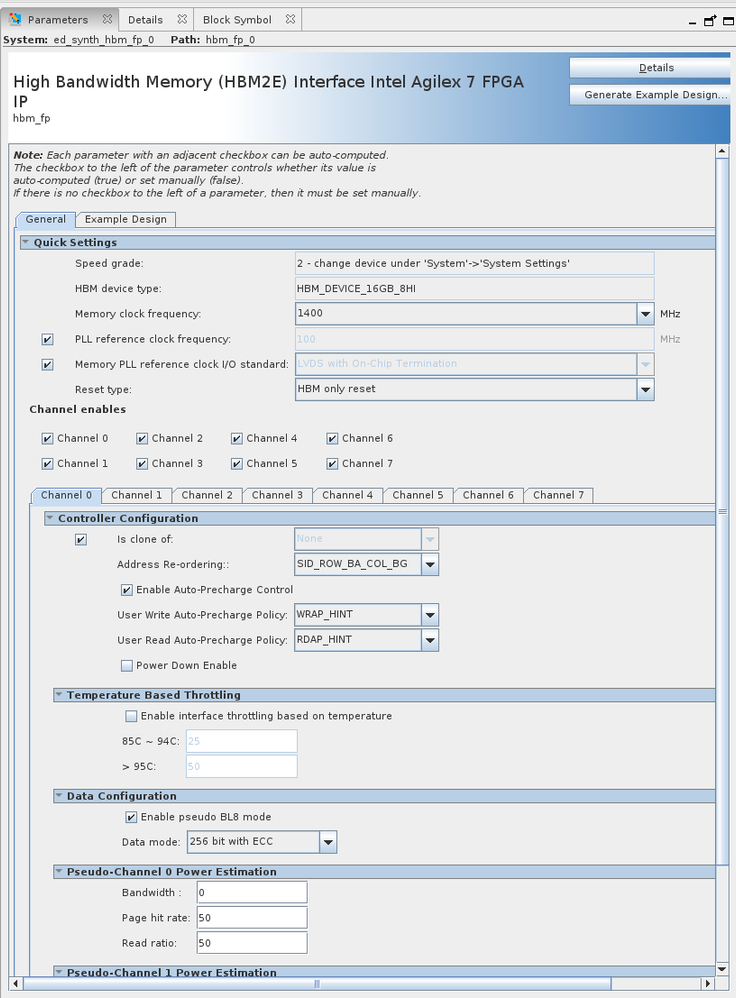

1) I could not find 'Memory Device Preset Selection' settings in the ed_synth_hbm_fp_0 IP. (see attached figure)
also,
2) I could not find any qprs file in the bts_hbm2e_bottom_hydra30_seed28 directory.

Any ideas to set the custom file?

I succeeded in compiling the example design. So, probably, the setting may not be needed.

Thank you,

  • Hi,


    There is no memory preset setting for HBM2e IP.

    You may ignore those notes.


    Currently the memory preset setting is available for DDR4, DDR5 and LPDDR5 for Agilex M devices.


    Regards,

    Adzim


2 Replies

  • AdzimZM_Altera's avatar
    AdzimZM_Altera
    Icon for Regular Contributor rankRegular Contributor

    Hi,


    There is no memory preset setting for HBM2e IP.

    You may ignore those notes.


    Currently the memory preset setting is available for DDR4, DDR5 and LPDDR5 for Agilex M devices.


    Regards,

    Adzim


    • yas38's avatar
      yas38
      Icon for New Contributor rankNew Contributor

      Hi Adzim,

      That is good to know. I could safely ignore the note.

      Thank you!
