clock duty of the output of altlvds tx

Hi everyone,

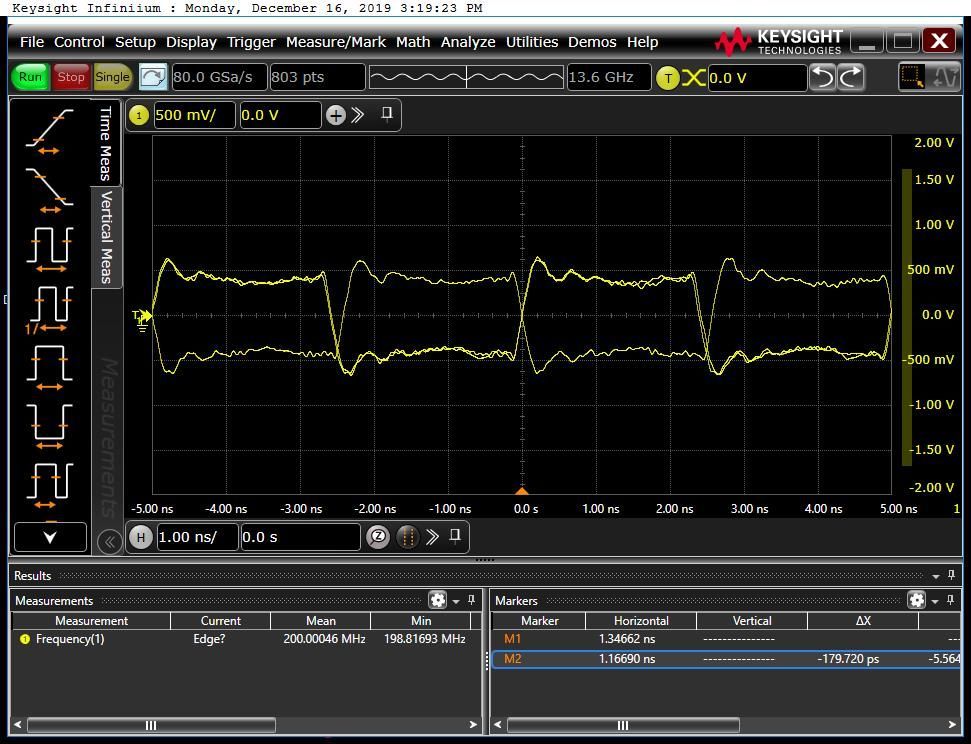

I want to know one thing that when I want to use altlvds tx to transimit 0->1->0 to make clock, I got the clock , its duty is not 50% no matter what the frequency, I don't know the matter, can anyone help me? The waveform of the clock is like below fig.

B.S.

Lambert

1 Reply

  • Rahul_S_Intel1's avatar
    Rahul_S_Intel1
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago

    Hi ,

    Can you check the losses in the board and try to see the simulation , and compare the board level simulation ( IBIS ) with actual result
