May I know which Quartus version that you are using?
New ContributorHi,
I am using Quartus 17.1 version. And for the above query which I posted, I read the manuals and did some changes in our I/O muxing. I configured Dedicated I/O bank UART as the debug UART and now console is showing output.But in the message DDR calibration is getting failed.
The uart console is showing following Error:
U-Boot 2014.10 (Sep 17 2019 - 15:11:16)
CPU : Altera SOCFPGA Arria 10 Platform
BOARD : Altera SOCFPGA Arria 10 Dev Kit
I2C: ready
DRAM: WARNING: Caches not enabled
SF: Read data capture delay calibrated to 1 (0 - 2)
SF: Detected N25Q1024A with page size 256 Bytes, erase size 4 KiB, total 128 MiB
FPGA: Early Release Succeeded.
SF: Detected N25Q1024A with page size 256 Bytes, erase size 4 KiB, total 128 MiBemif_reset interrupt acknowledged
emif_reset interrupt acknowledged
emif_reset interrupt acknowledged
Error: Could Not Calibrate SDRAM
DDRCAL: Failed
INFO : Skip relocation as SDRAM is non secure memory
Reserving 2048 Bytes for IRQ stack at: ffe3a6e8
DRAM : 0 Bytes
data abort
pc : [<ffe001cc>] lr : [<ffe02491>]
sp : ffe3fff0 ip : 00000016 fp : 00000001
r10: ffd02078 r9 : ffe3aee8 r8 : ffe00000
r7 : ffe1d3c4 r6 : 00000000 r5 : 00000000 r4 : ffeff000
r3 : ffe3afaf r2 : ffe40000 r1 : ffe3d000 r0 : ffe3aee8
Flags: nzcv IRQs on FIQs on Mode SVC_32
Resetting CPU ...
resetting ...
Could you please help with the error?
Thanks,
Priya
Regular ContributorHi,
I am unsure why the SDRAM is not calibrated properly, may I know which manual you are following to change these settings?
Please follow these steps to boot the Arria 10 SoC board via QSPI here, which also shows the expected output of the uboot:
https://rocketboards.org/foswiki/Documentation/A10GsrdQspiBootLTS
New ContributorHello ,
I am following the same manual for QSPI boot , provided by rocketboard.

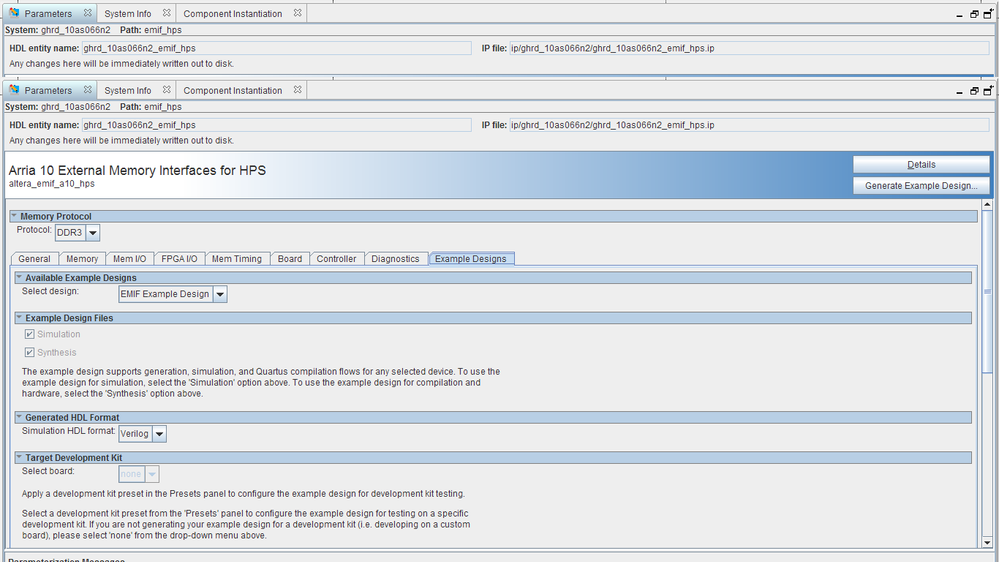

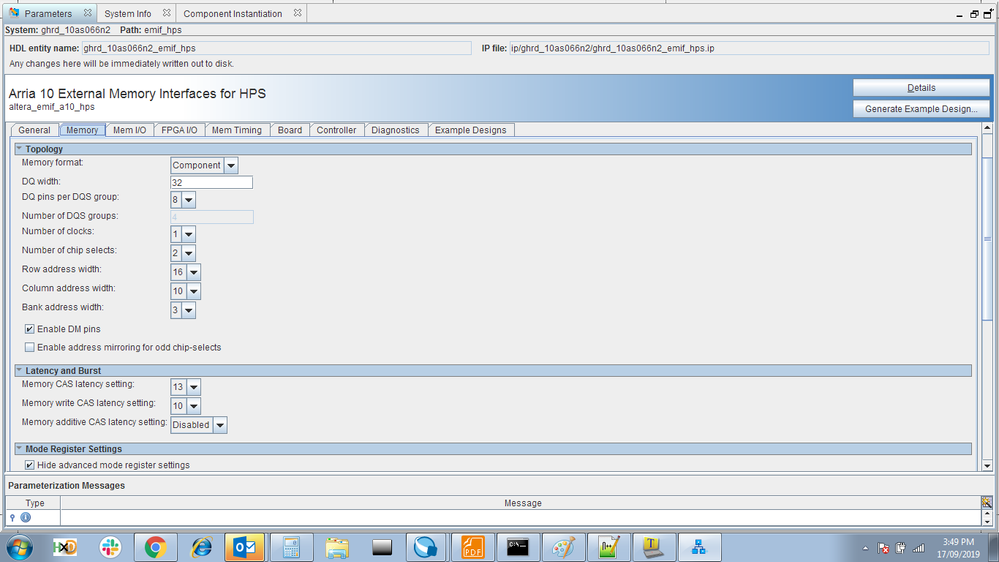

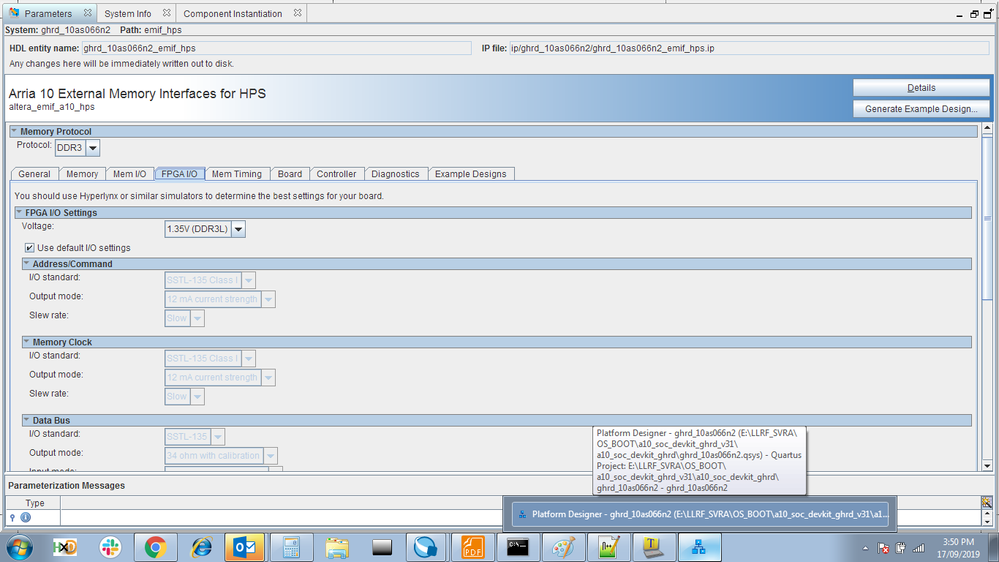

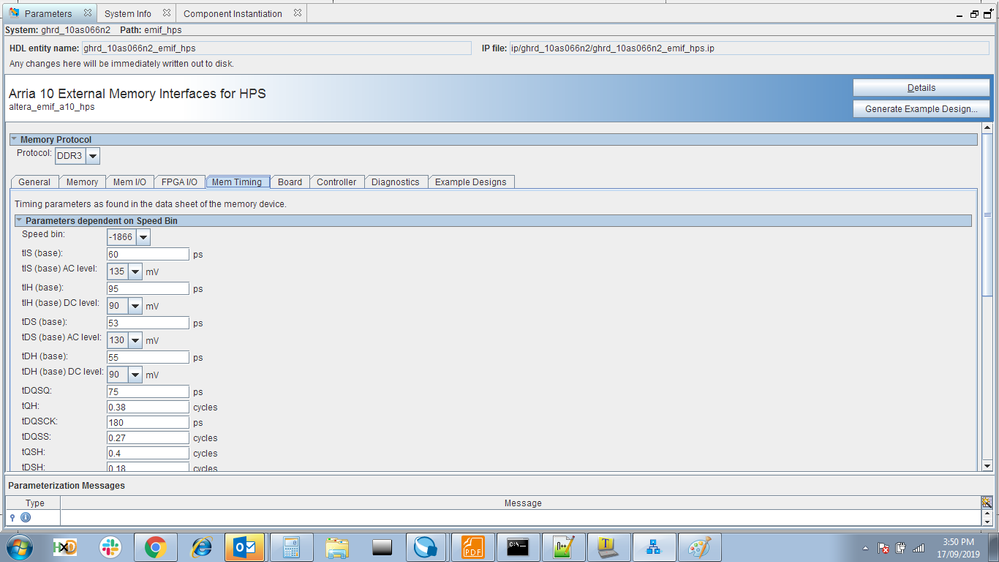

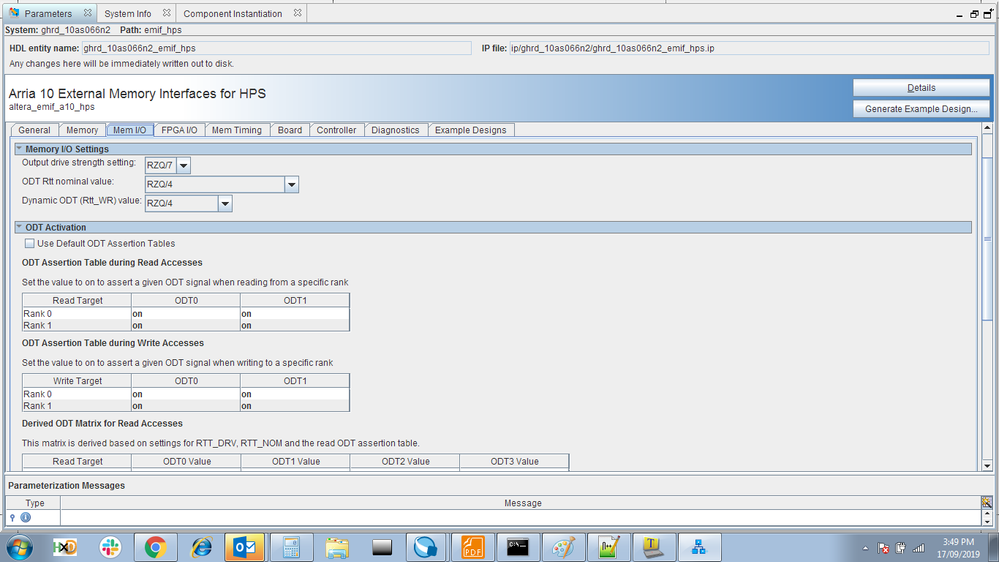

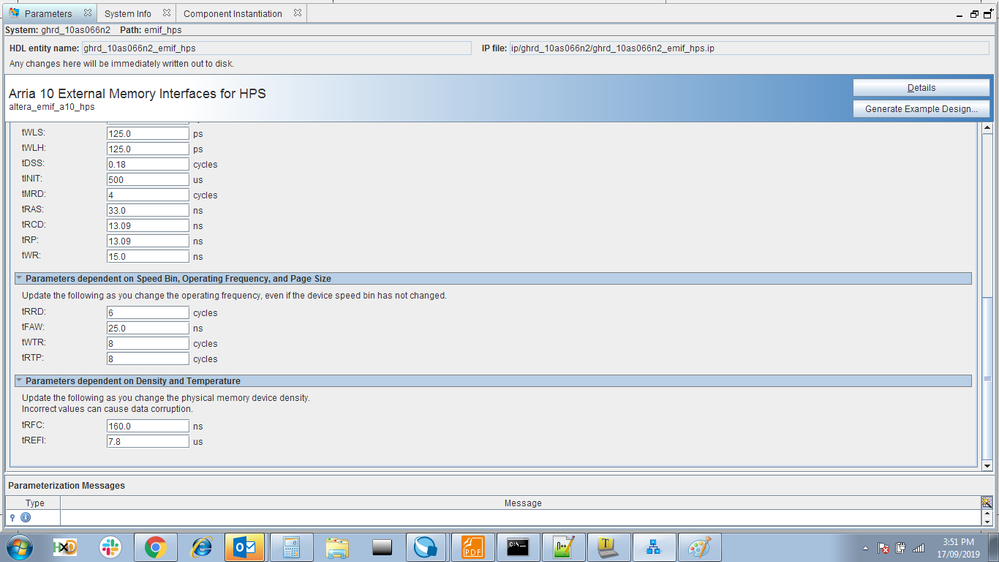

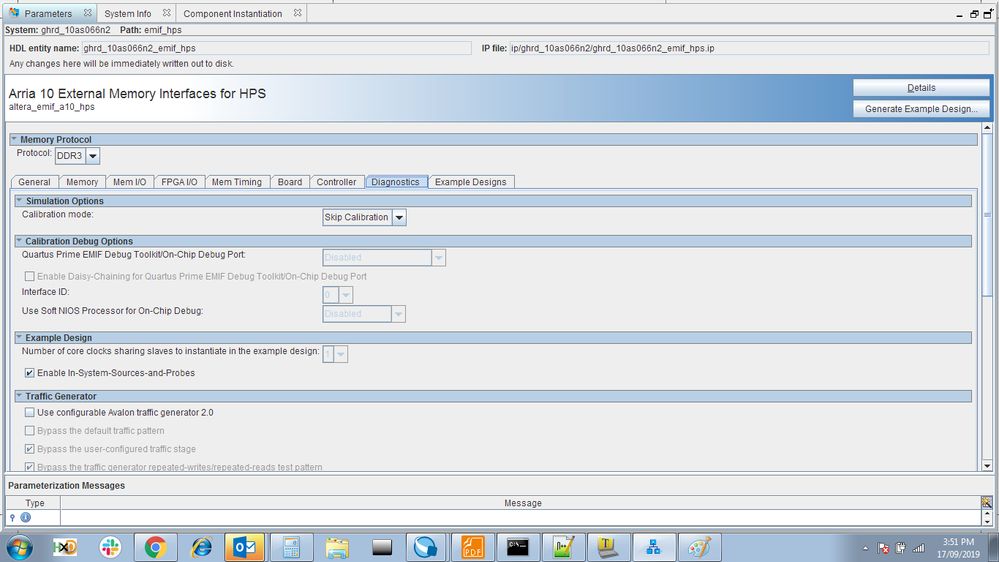

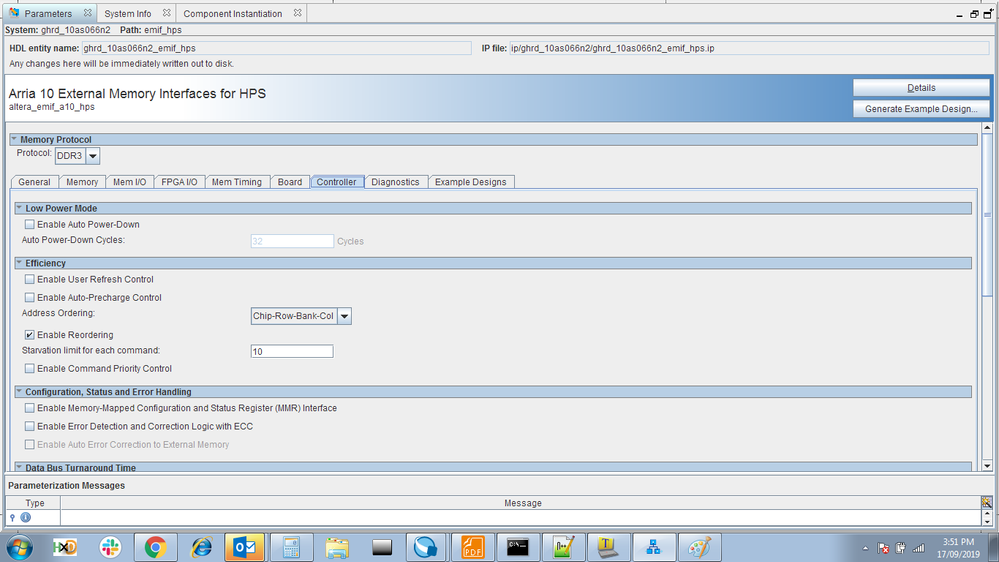

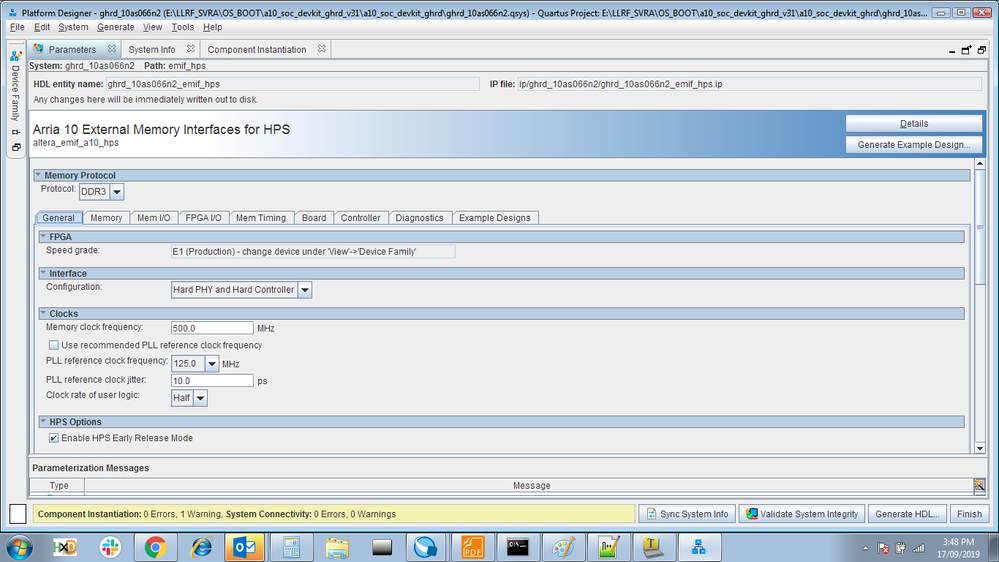

In the GHRD , DDR4 is calibrated at HPS side, and in our custom board, we are using DDR3 at HPS side for calibration. In the Quatus Tool (17.1 version) , we replaced DDR4 with DDR3(MT41K512M16HA-107) at emif_hps interface attached below:
Please help with above query.
Thanks,
Priya
Regular ContributorHi Priya,
I would like to know if the DDR Timing Paramaters settings made in Quartus in your previous post have fixed this issue.
