Arria 10 SoC Development Kit: IO standard used for CLK_HPSEMI_P/N

Hi,

In Arria 10 development kit, CLK_HPSEMI_P/N is provided from Si5338B which is powered by 1.8V. It is provided to 2K bank which is powered by 1.2V(See images below). The supported I/O standards of Si5338B as per datasheet is LVPECL, LVDS(1.8V,2.5V,3.3V), HCSL and CML. What is the IO standard that will be used in Intel Arria 10 to make the signal logically compatible?

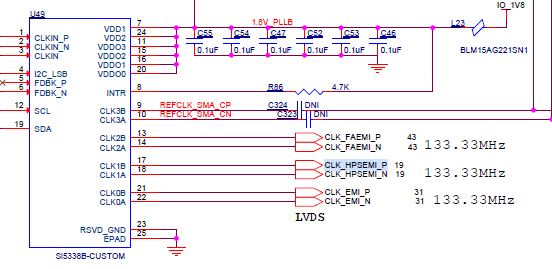

1)From Si5338B

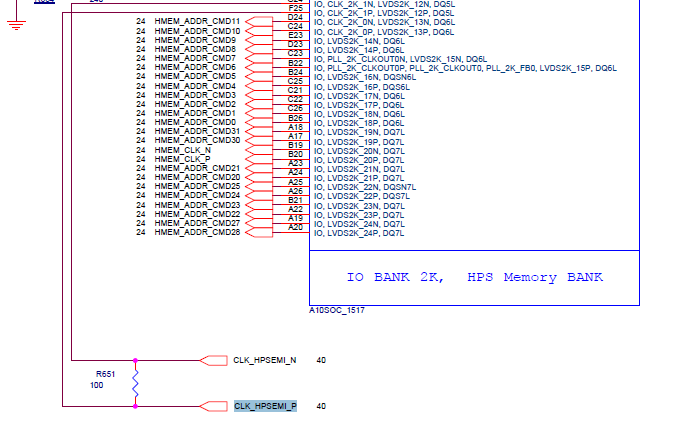

To FPGA:

Thanks

Viswa

4 Replies

    • AminT_Intel's avatar
      AminT_Intel
      Icon for Regular Contributor rankRegular Contributor
      4 years ago

      We do not receive any response from you to the previous question/reply/answer that I have provided. This thread will be transitioned to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.

    • sriviswa's avatar
      sriviswa
      Icon for New Contributor rankNew Contributor
      4 years ago

      Hi,

      Thanks for the reply.

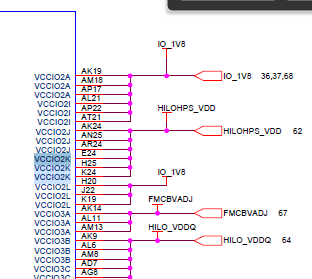

      In the Development kit, the 2K bank is powered by the voltage needed for DDR version. If we use DDR4, then it will be powered by 1.2V. From the below image, HILOPHPS_VDD is powering the 2K bank. Also 2K bank is used for interfacing DDR. I have attached the development kit with this question.

      Page no 62: HILOHPS_VDD is generated(it powers 2K bank)

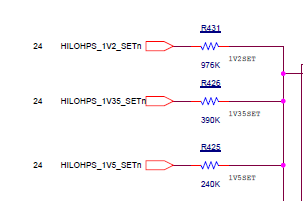

      These will set the HILOHPS voltage to either 1.2V,1.35V or 1.5V

      In the development kit, there is a voltage mismatch between Clock generator Si5338B and Intel Arria 10 FPGA. Hence these two can't be logically compatible. What IO standard can then be used to make it logically compatible?

      Thanks

      Viswa

      • AminT_Intel's avatar
        AminT_Intel
        Icon for Regular Contributor rankRegular Contributor
        4 years ago

        Hello Viswa,

        The voltage need to be the same to make it compatible. Thus, if you use 1.2V,1.35V or 1.5V on the other device then your Arria 10 need to use the same voltage as I/O standard followed by requirement based on the guideline.

        Thank you.
