Agilex 5 HSIO Bank Clocks

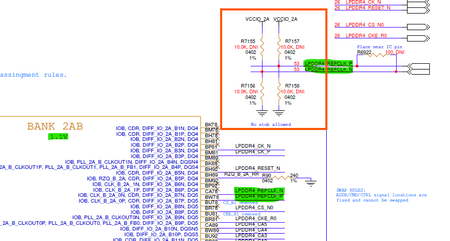

Good day, How can a 1.8V clock be connected to the HSIO banks? The Intel Agilex 5 Premium development kit seems to connect a few 1.8V LVDS clocks to HSIO banks powered at 1.1V or 1.2V (VCCIO_PIO). T...
Board Debug
AqidAyman_Altera's avatar
AqidAyman_Altera
Icon for Regular Contributor rankRegular Contributor
1 year ago

Hello Nicole,


From Si5332 clock gen datasheet, LVDS spec as below


Vcm = 0.8V

VPP_SE = 0.375V

VPP_SE --> Signal swing at HIGH -> 0.8 + (0.375/2) = 0.9875V.


That should be still within limit of HSIO pin.
