Which part of design example eth_e2e_e10 based on platform designer

Hello Sir?Madam

​

I am running the eth_e2e_e10 design example now.

I have a IP upgrading issue now .

When I open the Quartus pro GUI in linux, and open the dcd.qpf project , system reminder to upgrade several IP core, I can click button Launch IP upgrade Tools, and seems several IP cores be upgrade successfully except address_decide and sc_fifo, seems that processing must be done through platform designer, which fails to show up correctly.

May I know which part of design based on platform designer?

Because I can not lautch platform designer gui correctly, any steps I can take to solve this issue?

I guess the issue might be caught by JAVA, so I print java version here for reference.

thanks

Jim

[root@fig01 a10_gx_pac_ias_1_2_pv]# uname -a

Linux fig01 3.10.0-957.10.1.el7.x86_64 #1 SMP Mon Mar 18 15:06:45 UTC 2019 x86_64 x86_64 x86_64 GNU/Linux

[root@fig01 a10_gx_pac_ias_1_2_pv]# java -version

openjdk version "1.8.0_201"

OpenJDK Runtime Environment (build 1.8.0_201-b09)

OpenJDK 64-Bit Server VM (build 25.201-b09, mixed mode)

15 Replies

Show More
  • User1582192733150209's avatar
    User1582192733150209
    Icon for Occasional Contributor rankOccasional Contributor
    5 years ago

    Hi MeiYanL,

    thanks for your suggestion.

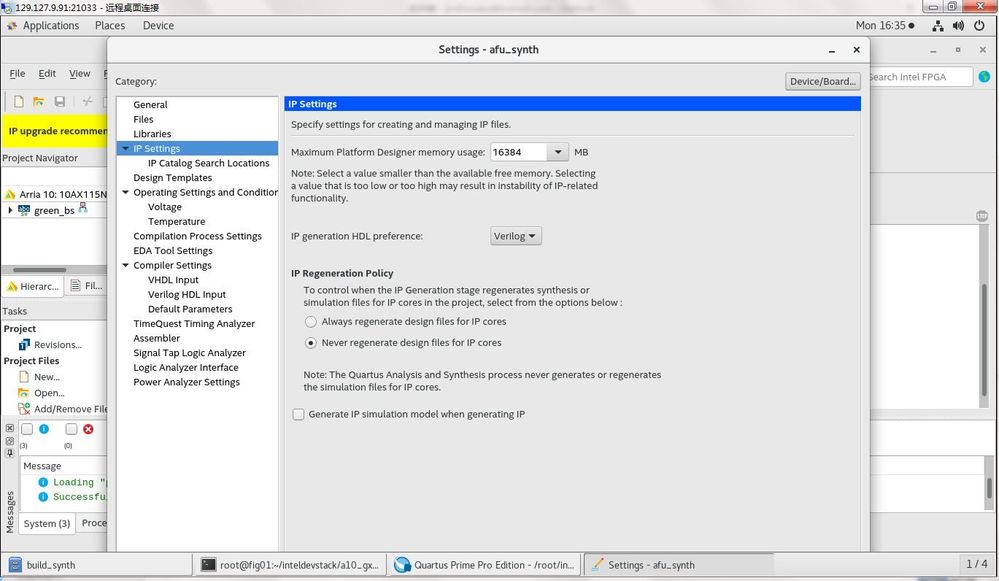

    I have tried to maximum the memory usage, but can't click ok button since it is not visible and the setting windows is not able to zoo in or zoo out.

  • MEIYAN_L_Intel's avatar
    MEIYAN_L_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    5 years ago

    Hi,

    You may need to try the method as below:

    1. Resize the monitor with different scale and layout as step below:

    -Right-click an empty spot on the desktop.

    -Click Personalize.

    -Click Display Settings.

    -Note the current setting of the "Change size of..." and "Resolution".

    -Choose the size and resolution to 1920x1080.

    -If the screen looks OK, click "Yes" to keep these display settings.

    2. Resize Quartus Prime software front setting as steps below:

    -open Quartus Prime software

    -click Tools>Options>General>Fonts

    Thanks

  • User1582192733150209's avatar
    User1582192733150209
    Icon for Occasional Contributor rankOccasional Contributor
    5 years ago

    Hi MeiYanL,

    thanks for your feedback.

    My graphic card on clinet computer(working from home) supports resolution up to 1440*900 .

    with that settings seems not big enough to fit part of Quartus window.

    Can I get you compiled project ?

    Best regard

    Jim

  • MEIYAN_L_Intel's avatar
    MEIYAN_L_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    5 years ago

    Hi,

    After update the IP files, I had compile the project file. But there is some error on my side.

    I will need some time to investigate for it.

    Thanks
