PCIe x16 does not recognize Altera Cyclone V in Centos 7

Hello everyone.

I am trying to configure a Cyclone V on Centos 7 through the PCI Express 16 port and the FPGA does not recognize me. The FPGA port is 4x. I currently have another PCI Express 16 port busy with a graphics card and it does. I have tried to change the FPGA in the port of the graphics card and it continues without recognizing it, but it does recognize me in the other port the graphics card, so I deduce that it is a hardware problem at the level of the motherboard ... I have checked the switch configurations in the FPGA and the configuration corresponds to that recommended for the PCI Expres 4x: SW5 x1 = off, x4 = on. JP8 & JP10 in 1 and 2 and JP1 in 7 and 8.

To determine that the FPGA port does not recognize me, I have made the query: "sudo dmidecode -t 9". I have also configured in the BIOS the port where I have the FPGA for "Gen1" since it indicates that the port is a "PCIe Gen1 x4", but still, the BIOS tells me that there is nothing in that slot ...

I have followed the installation documentation rigorously, but the problem is that it does any PCI Express detect the FPGA...

Information about the motherboard:

Getting SMBIOS data from sysfs.
SMBIOS 2.7 present.

Handle 0x0002, DMI type 2, 15 bytes
Base Board Information
	Manufacturer: ASUSTeK COMPUTER INC.
	Product Name: P8H77-M
	Version: Rev X.0x
	Serial Number: 120901894802459
	Asset Tag: To be filled by O.E.M.
	Features:
		Board is a hosting board
		Board is replaceable
	Location In Chassis: To be filled by O.E.M.
	Chassis Handle: 0x0003
	Type: Motherboard
	Contained Object Handles: 0

I put the images with all the information of the bash console.

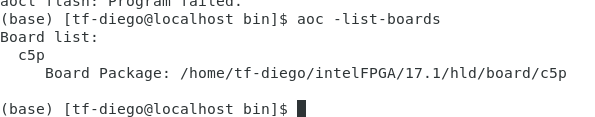

"aoc -list-boards" command:

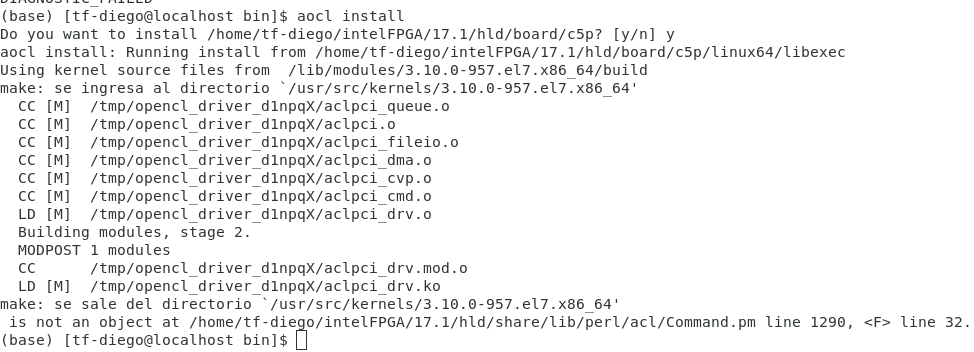

"aocl install" command:

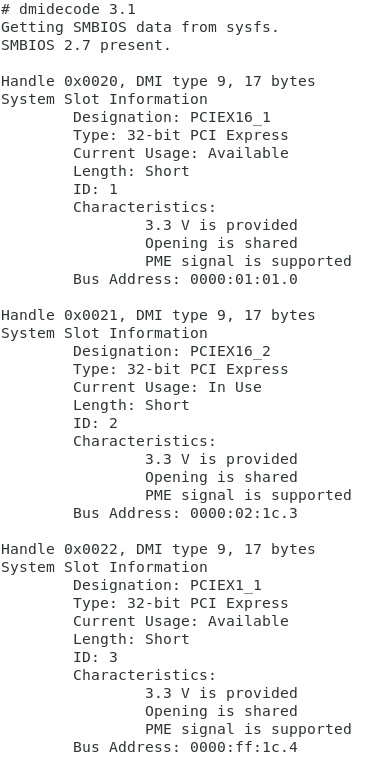

"sudo dmidecode -t 9" bash command:

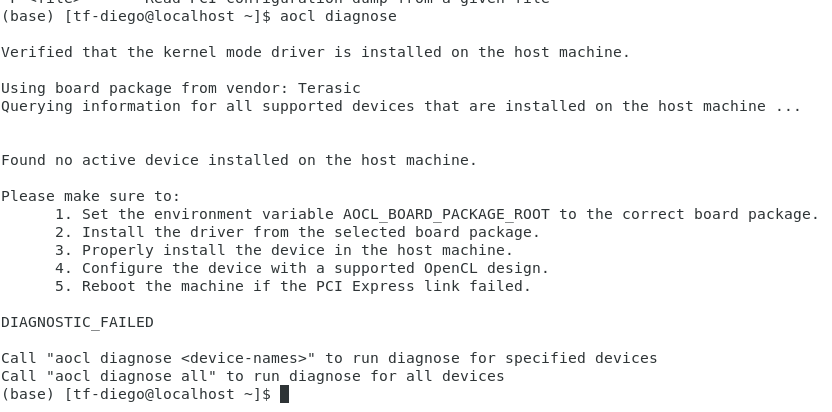

and finally, "aocl diagnose" command:

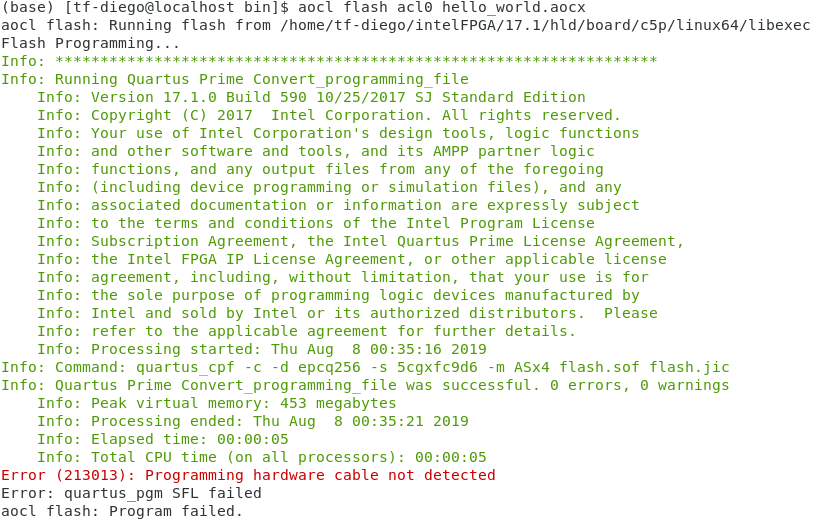

When try to compile "hello_world" program, the output is:

In Windows the device does not recognize me either, although I have not tried to install or configure anything, just start on windows with the FPGA on.

Is it possible that it is a factory failure?

Regards thank you very much ! ;)

P.D: Sorry for the images, next time will put code directly, I'm a newer here!

3 Replies

  • HRZ's avatar
    HRZ
    Icon for Frequent Contributor rankFrequent Contributor
    7 years ago

    Interesting, I had never seen a PCI-E-based Cyclone V board before. I guess you are using the Terasic OpenVINO Starter Kit, right?

    Anyway, Have you followed Terasic's instructions for getting OpenCL to work with your board? Specifically, you first need to program the board through JTAG with an OpenCL image to enable the PCI-E core on the FPGA and then reboot your machine for the board to be detected via PCI-E. It won't be detected out of the box.
