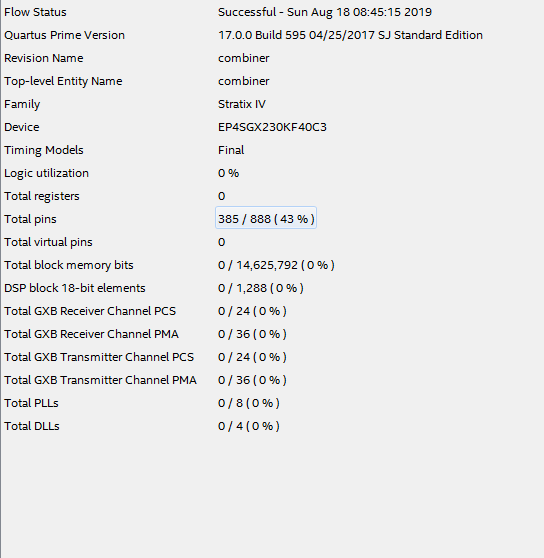

Greetings, After compiling the top level module , The compilation report shows no hardware percentage consumption.

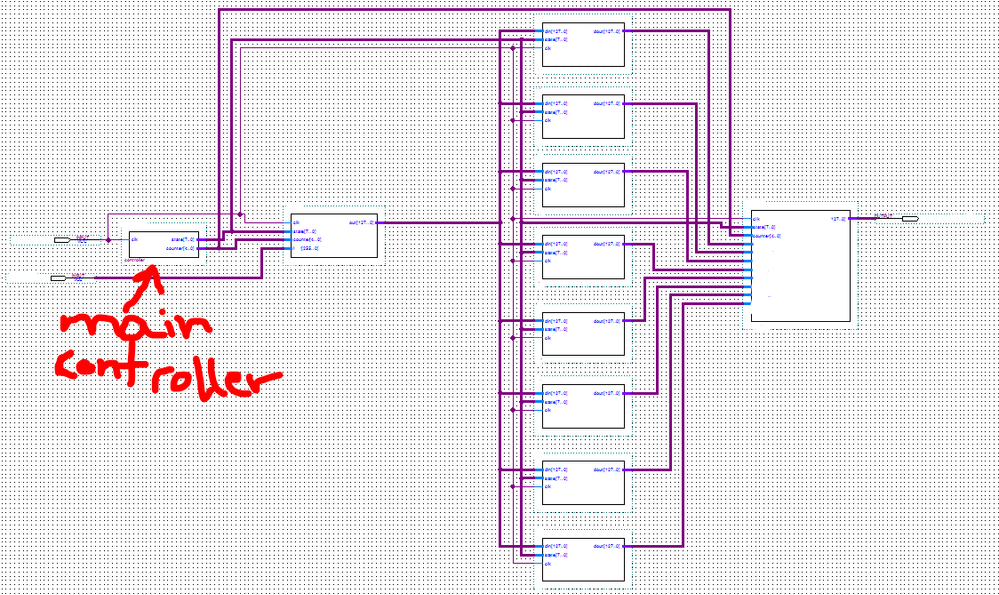

A BDF ( schematic is provided ) with some editing due to the sensitivity of the design, in addition to the report.

Also after compilation the report is not showing the registers used in this hierarchical design. this is the second time am facing this problem.

Thanks in advance

5 Replies

  • MEIYAN_L_Intel's avatar
    MEIYAN_L_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago
    Hi, May i have your design file? So that i can duplicate the problem. Thanks
  • Zeid's avatar
    Zeid
    Icon for New Contributor rankNew Contributor
    6 years ago

    Hi,

    I cant provide the design file because it is very sensitive and classified work.

    but, is there anything in mind for such a problem ?

    Is there another way for helping instead the option of sending the design file ?

    Much appreciation.

  • MEIYAN_L_Intel's avatar
    MEIYAN_L_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago
    Hi, Can you try to upgrade the Quartus Prime Standard to the latest version 18.1? If the problem still exist, can you provide the screenshot of Tools>Netlist Viewer>RTL viewer. Thanks
  • Zeid's avatar
    Zeid
    Icon for New Contributor rankNew Contributor
    6 years ago

    Hi,

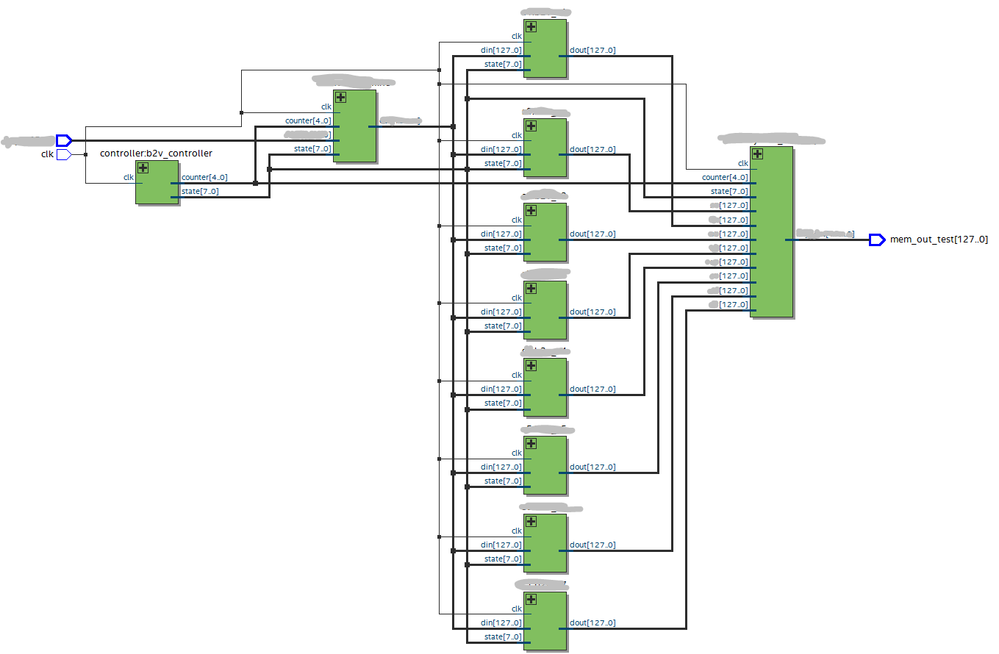

    Here is the screenshot for the RTL Viewer

    Thanks

  • MEIYAN_L_Intel's avatar
    MEIYAN_L_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago

    Hi,

    From the RTL Viewer,

    Can you try to upgrade to Quartus Prime Standard version 18.1?

    If the problem is not fixed, can you try to give me a simple test design file?

    So that, I can duplicate the error as well.

    Thanks
