Why does the generation of one of the Example Designs for the GTS Dynamic Reconfiguration Controller IP fail on a Windows* machine using Quartus® Prime Pro Edition software version 25.3.1?

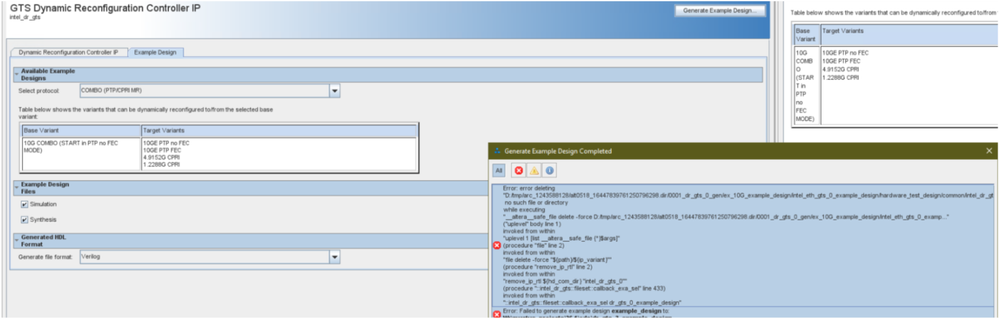

The Example Design COMBO (PTP/CPRI MR) was first released in Quartus® Prime Pro Edition software version 25.3.1, as noted in Table 3 of the GTS Dynamic Reconfiguration Controller IP User Guide. Users may encounter problems generating this example design on a Windows machine, which can result in an error as shown below and cause the example design generation to fail.



Resolution (custom)

There is no workaround to generate the GTS Dynamic Reconfiguration Controller IP [COMBO (PTP/CPRI MR)] example design using the Windows* version of Quartus Prime Pro Edition software. The only option is to use the Linux* version of Quartus Prime Pro Edition software to generate this example design.

This problem is scheduled to be fixed in a future release of the Quartus Prime Pro Edition software.
