Intel FPGA monitor_host connection issue

Hi! I am a DE1_SoC user. I am using Quartus prime lite 16.1, and I am working on an Intel FPGA monitor program tutorial. In the project creation stage, an error message appears stating that the cab...
  • Blair's avatar
    Blair
    4 years ago

    Hi,

    You shouldn't have to manually specify javaw.exe every time. I assume that you are using Windows. Are you running the monitor program from the Windows shortcut that was created by the installer. If yes, what is the "Target" of that shortcut (ie. what is the shortcut trying to run). It should be something like: 'C:\intelFPGA\16.1\quartus\bin64\jre64\bin\javaw.exe -Dsun.java2d.noddraw=true -jar C:\intelFPGA\16.1\University_Program\Monitor_Program\bin\Altera_Monitor_Program.jar'

    Kind regards,

    Blair

jpk's avatar
jpk
Icon for New Contributor rankNew Contributor
4 years ago

Quartus was 16.1 and only one was installed. The monitor program was originally installed to 16.1, but due to the same problem, I upgraded to 18.1. When installing the monitor program, it was installed as it was because the program automatically set it to "c:\altera" in the item asking for the installation path. Today, while installing 16.1 again, I changed it to "C:\intelFPGA_lite" and installed it, but the phenomenon is the same. How do I change the QUARTUS_ROOTDIR setting? Please gave me the detail guide.

Regards.

  • jpk's avatar
    jpk
    Icon for New Contributor rankNew Contributor
    4 years ago

    Hi!

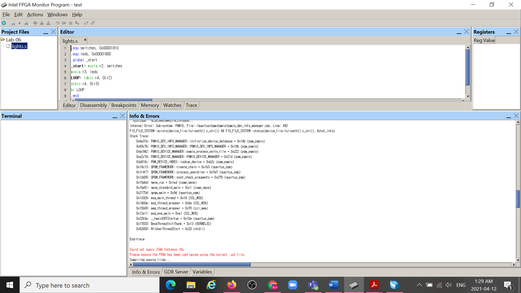

    Thanks to your great support, I could go further more. But Unfortunately, I have another issue to download the code into device. I leave the process message as below.

    I can't understand this error message "Could not query JTAG Instance IDs.
    Please ensure the FPGA has been configured using the correct .sof file."

    Can you guide me regarding this.

    your guiding has been great help so far.

    ----------------------------------------------------------------------------------------------

    C:/intelFPGA_lite/quartus/bin64/quartus_pgm -c "DE-SoC [USB-1]" --auto
    1) DE-SoC [USB-1]
    4BA00477 SOCVHPS
    02D120DD 5CSE(BA5|MA5)/5CSTFD5D5/..
    Internal Error: Sub-system: PGMIO, File: /quartus/pgm/pgmio/pgmio_dev_info_manager.cpp, Line: 492
    FIO_FILE_SYSTEM::exists(device_file.fullpath().c_str()) && FIO_FILE_SYSTEM::status(device_file.fullpath().c_str(), &stat_info)
    Stack Trace:
    0x6e31b: PGMIO_DEV_INFO_MANAGER::initialize_device_database + 0x14b (pgm_pgmio)
    0x69c7b: PGMIO_DEV_INFO_MANAGER::PGMIO_DEV_INFO_MANAGER + 0x18b (pgm_pgmio)
    0xbc942: PGMIO_DEVICE_MANAGER::pgmio_process_parts_file + 0x222 (pgm_pgmio)
    0xa2c7d: PGMIO_DEVICE_MANAGER::PGMIO_DEVICE_MANAGER + 0x21d (pgm_pgmio)
    0xb816c: PGM_DEVICE_INDEX::lookup_device + 0xb2c (pgm_pgmio)
    0x18c13: QPGM_FRAMEWORK::create_chain + 0x1b3 (quartus_pgm)
    0x1f4f7: QPGM_FRAMEWORK::process_operation + 0x7e7 (quartus_pgm)
    0x1dd30: QPGM_FRAMEWORK::post_check_arguments + 0x270 (quartus_pgm)
    0x15ebd: qexe_run + 0x1ad (comp_qexe)
    0x16e51: qexe_standard_main + 0xc1 (comp_qexe)
    0x2173d: qpgm_main + 0x9d (quartus_pgm)
    0x13328: msg_main_thread + 0x18 (CCL_MSG)
    0x14b0e: msg_thread_wrapper + 0x6e (CCL_MSG)
    0x15b00: mem_thread_wrapper + 0x70 (ccl_mem)
    0x12a11: msg_exe_main + 0xa1 (CCL_MSG)
    0x22b3a: __tmainCRTStartup + 0x10e (quartus_pgm)
    0x17033: BaseThreadInitThunk + 0x13 (KERNEL32)
    0x52650: RtlUserThreadStart + 0x20 (ntdll)

    End-trace

    Could not query JTAG Instance IDs.
    Please ensure the FPGA has been configured using the correct .sof file.

    • jpk's avatar
      jpk
      Icon for New Contributor rankNew Contributor
      4 years ago

      I just solved my problem.

      I was path problem when I install the Quartus program.

      It shouldn't set as "C:\intelFPGA_lite\16.1". Install process shouldn't suggest create the "16.1" folder.

      It should be just "C:\intelFPGA_lite".

      Anyway, really thank you for your help.
