Problem with Linux & Windows Application for PCIe DMA transfer on Arria 10 Ref: PCI Express AVMM DMA Reference Design

Hello,

May I know which reference design are you referring to?

and which SoC device is this?

I cannot open the link above.

Thanks

Hello,

Thank you for your response.

I'm referring to "Reference Design: Gen3x8 AVMM DMA - Arria 10". I want to run the software application on Linux for DMA transfer.

For your reference, I have attached the file here!

Hello,

I found a way around the problem I was facing but I'm stuck with another one now. Hoping to get some help!

By giving the commands: ( After programming the fpga and restarting the system )

$sudo make,

$sudo ./ install

and

$sudo ./ run

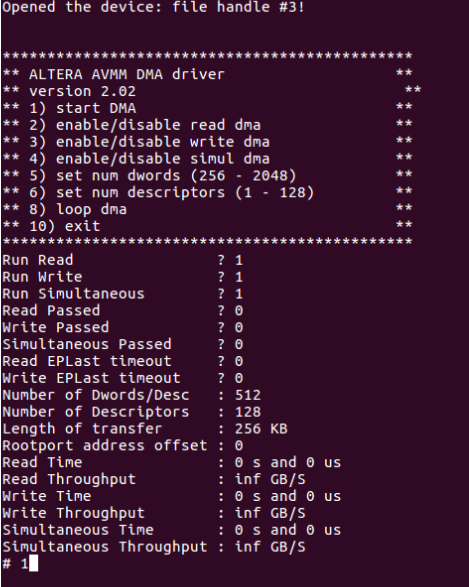

I am able to run the application on linux. But if I try to start the DMA transfer by giving '1', the system crashes and doesn't respond anymore.

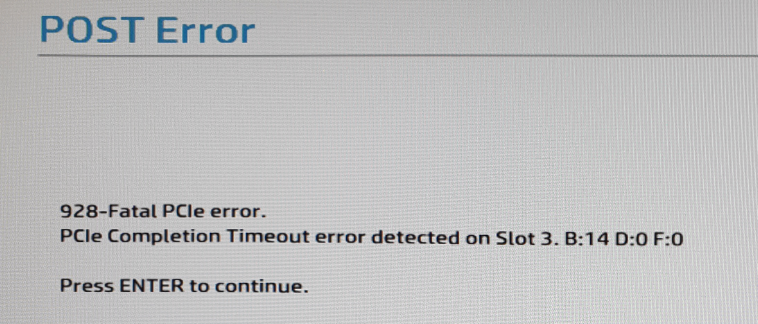

Also tried working with Windows on this problem, I am able to launch the GUI but once I 'start' the DMA transfer for read and write for 100 iterations (default), the system restarts and gives a "928 Fatal PCIe Error ".

Would really appreciate if some help is provided regarding the problem I'm facing.

Thanks!

Hi,

I will be following this issue with you. What I aim is to make sure there is no missing step while creating your project. Please confirm first and let me know. Did you watch the following videos that will help you to review the steps?

https://www.youtube.com/watch?v=CGs2Q3028ss

https://www.youtube.com/watch?v=lWcjItN4byU

Regards,

Hi,

Great to hear that the design is working after following the provided resources. Can you please share what error you see if you have? more info will help us to understand the new issue.

Regards,

Hi,

The design is working fine without any problems. I am having problems in running the DMA transfer (read and write) to the board and back.

Could you please share some steps how we can debug this issue. I tried understanding the Linux code and making some changes but nothing works.

As soon as I "Start DMA" by entering '1' and 'Enter' the application and the Linux OS stops responding.

Similarly in Windows when I click on start I get a PCie error shown in the figures attached above.

Thanks!

Regards,

Hello,

The only debug method that would help us in this case would be the signaltap. By adding the DMA signals to be traced in SignalTap, we might get a glimpse on the root cause of this issue.

I suspect its either the DMA is hanging somewhere or the PCIe is not functioning properly. With Signaltap we can segregate the root cause.

Thanks
