Why does functional simulation generate Zs?

I have a very simple project, which sends a fixed packet over serial.

I share the files in this github repository

https://github.com/fabiodl/verilogutils/

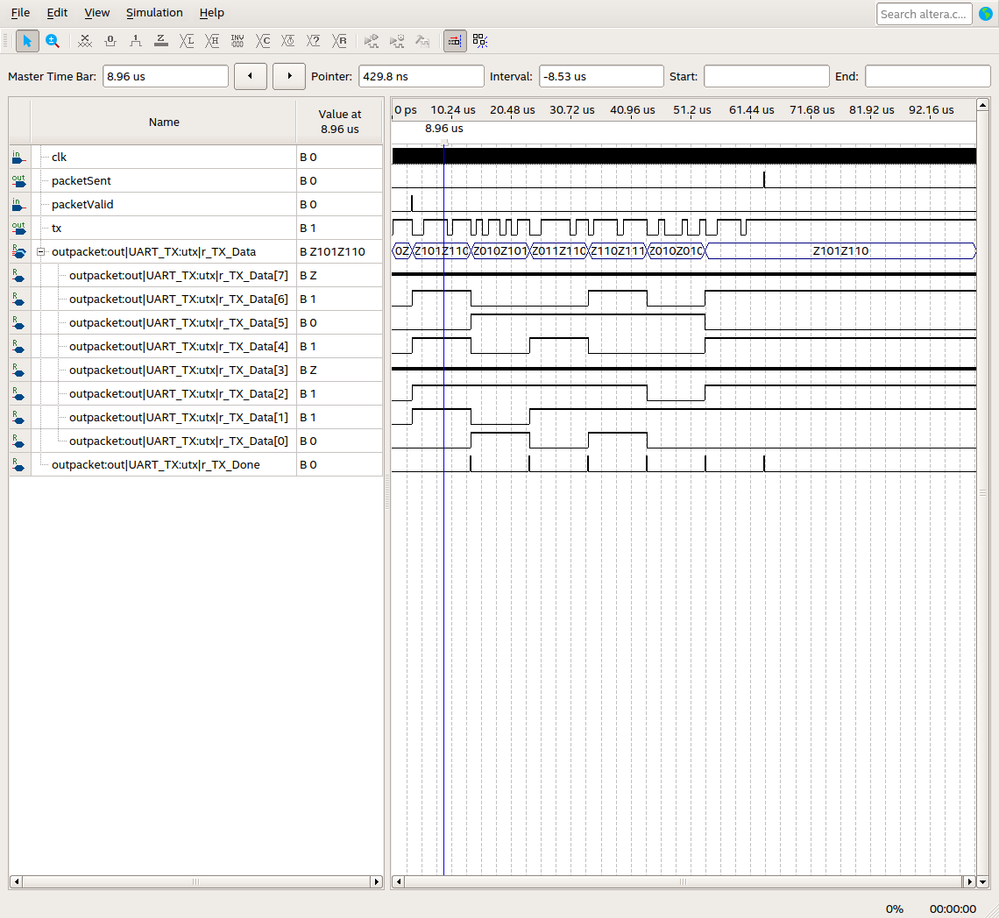

If I run a functional simulation (Waveform.vwf in the repository) I get some 'Z' in the value of an internal register, see the attached picture.

Nowhere in the code I set anything high impedance. Where is that Z originating from?

1 Reply

  • JOHI's avatar
    JOHI
    Icon for Contributor rankContributor

    Hello,

    Please check if your variables are initialised correctly.

    (e.g. when declared)

    Best Regards,

    Johi.
