set_input_delay constraints direction

Good day!
Tell me, in which direction should the delays be considered relative to the clock front?

create_clock -name {llc} -period 75MHz { llc }

set_input_delay -clock [get_clocks {llc}]             -max  4.10 [get_ports {rx_data[*]}]
set_input_delay -clock [get_clocks {llc}]             -min  0.15 [get_ports {rx_data[*]}]
set_input_delay -clock [get_clocks {llc}] -clock_fall -max  3.34 [get_ports {rx_data[*]}] -add_delay
set_input_delay -clock [get_clocks {llc}] -clock_fall -min -0.89 [get_ports {rx_data[*]}] -add_delay

Or

create_clock -name {llc} -period 75MHz { llc }

set_input_delay -clock [get_clocks {llc}]             -max -4.10 [get_ports {rx_data[*]}]
set_input_delay -clock [get_clocks {llc}]             -min -0.15 [get_ports {rx_data[*]}]
set_input_delay -clock [get_clocks {llc}] -clock_fall -max -3.34 [get_ports {rx_data[*]}] -add_delay
set_input_delay -clock [get_clocks {llc}] -clock_fall -min  0.89 [get_ports {rx_data[*]}] -add_delay

Or

create_clock -name {llc} -period 75MHz { llc }

set_input_delay -clock [get_clocks {llc}]             -max  4.10 [get_ports {rx_data[*]}]
set_input_delay -clock [get_clocks {llc}]             -min -0.15 [get_ports {rx_data[*]}]
set_input_delay -clock [get_clocks {llc}] -clock_fall -max  3.34 [get_ports {rx_data[*]}] -add_delay
set_input_delay -clock [get_clocks {llc}] -clock_fall -min  0.89 [get_ports {rx_data[*]}] -add_delay

and so on

Thanks

12 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    4 years ago

    What kind of interface is this? I'm guessing DDR. Center-aligned or edge-aligned clock? Same edge or opposite edge data transfer? And what are the numbers in your waveform supposed to represent? Exact timing or an example from an external device or something?

    • EBoln's avatar
      EBoln
      Icon for Occasional Contributor rankOccasional Contributor
      4 years ago

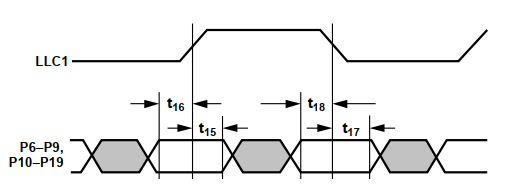

      Yes, edge-aligned DDR, dual edge data transfer. Data from DS

      -0.15 Positive clock edge to end of valid data
      4.1 Positive clock edge to start of valid data
      0.89 Negative clock edge to end of valid data
      3.34 Negative clock edge to start of valid data

      Converting to waveform from top message

      • sstrell's avatar
        sstrell
        Icon for Super Contributor rankSuper Contributor
        4 years ago

        That helps a bit. First of all, with the clock arriving edge-aligned, you need an internal 90 degree phase shift to center-align the incoming clock with the data, usually performed with a PLL. If you already have that in your design, add derive_pll_clocks to your .sdc to create the generated clock constraint needed.

        From there, I think the correct formulas to use would be (for edge-aligned DDR):

        (setup latch - setup launch) - Tsu = 0 - Tsu

        Th - (hold launch - hold latch) = Th - (clock period/2)

        So the values for -max would be -4.1 and -3.34 and for -min would be (0.15 - (13.33ns/2)) and (0.89 - (13.33ns/2)), so -6.515 and -5.775. I think I got the math right. It's all negative, so it looks weird, but it's because of the edge alignment and the fact that there's the internal phase shift to then center align the clock with the data.

        You'll also need a number of false path timing exceptions to prevent incorrect analysis. Assuming same edge transfer, they would look like this (you need to specify your virtual clock as well):

        set_false_path -setup -rise_from [get_clocks vir_clk_in] -fall_to [get_clocks llc]

        set_false_path -setup -fall_from [get_clocks vir_clk_in] -rise_to [get_clocks llc]

        set_false_path -hold -rise_from [get_clocks vir_clk_in] -rise_to [get_clocks llc]

        set_false_path -hold -fall_from [get_clocks vir_clk_in] -fall_to [get_clocks llc]

    • EBoln's avatar
      EBoln
      Icon for Occasional Contributor rankOccasional Contributor
      4 years ago

      Sorry for the long absence. In general, my main question was in what direction is the positive timing relative to the front?

      Taking the initial timing diagram as an example, how do you define it correctly?
