Remote Programming don't work - Unable to connect to Quartus Programmer JTAG-Server

Hello Support-Team,

I want program my FPGA over a JTAG-Server. I try everything I found in the Forum to make it run, but I still get "unable to connected".

  1. On both PCs (Remote / Local) I installed the Full Version: Quartus Prime Standard Edition 21.1.0 Build 832
    Forum:     https://community.intel.com/t5/Intel-Quartus-Prime-Software/Unable-to-connect-to-Quartus-II-Programmer-JTAG-Server/m-p/103248/thread-id/20978
  2. For Enabling the Remote-Client and do other settings I running both Full Versions with admin rights

Forum: https://www.intel.de/content/www/de/de/support/programmable/articles/000075019.html?wapkw=jtagserver.exe

  1. I checked the programming on the Remote-PC over the USB-BLASTER - work fine
  2. I check the connection (ping) from local to remote PC - OK
  3. I verified the SERVER an Client over CMD-Shell with admin-rights

What can I do to make it work?

Where can I find a log file with more information about the connection problems?!

PS: I tried to add pictures - but after that the Post Button is no longer active?!

4 Replies

  • YuanLi_S_Intel's avatar
    YuanLi_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Can you share me how do you setup the JTAG server on both remote pc and local pc?


  • Alex70's avatar
    Alex70
    Icon for New Contributor rankNew Contributor
    3 years ago

    Hello YuanLi,

    I do the following ...

    Server (Remote-PC):

    1. Start the Full Version with Admin-Rights (GUI)
    2. Open the Programmer (Tools~Prgrammer)
    3. Programmer~HardwareSetup : [Hardware Settings] => Currently selected hardware = USB-Blaster [USB-0]
    4. Programmer~HardwareSetup : [JTAG Settings] => JTAG Servers = Local / OK

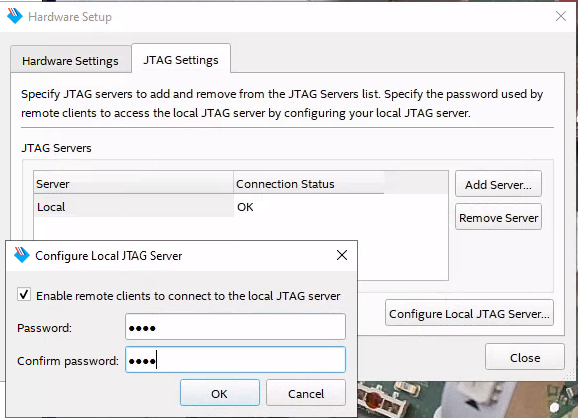

      => Button: Configure Local JTAG Server = Enable + Password
    5. Button: OK + CLOSE

    Client (Local-PC):

    1. Start the Full Version with Admin-Rights (GUI)
    2. Open Recent-Projekt => Compile Results are still available
    3. Open the Programmer (Tools~Prgrammer) and select/add the *.sof file
    4. Programmer~HardwareSetup : : [JTAG Settings] => JTAG Servers
      => Button: Add Server => Enter Server name + password

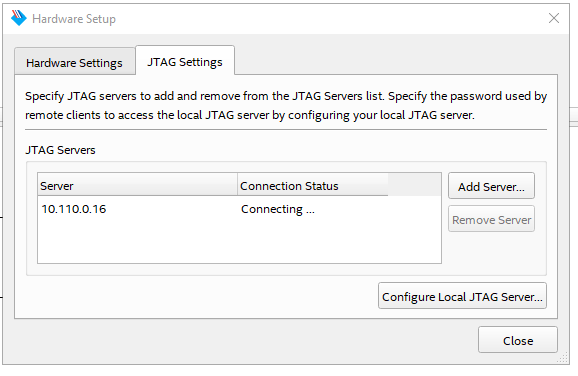

    5. Connecting Status don't finished

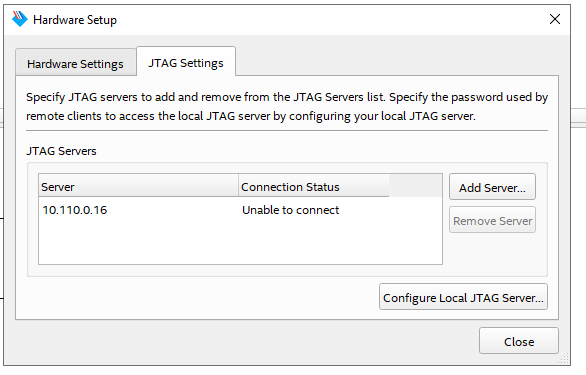

    6. After Close and re-opening the Window I get "Unable to connect"

    I try also the connection by using the command-shell programms jtagconfig.exe amd jtagserver.exe

    best regards
    Alex

  • YuanLi_S_Intel's avatar
    YuanLi_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Looks like the flow to setup is correct but the connection is not up. Can you check your firewall restriction? Probably can try allow a program by "Add a Program dialog box, browse to <Quartus II installation directory>/bin/jtagserver.exe".


    • Alex70's avatar
      Alex70
      Icon for New Contributor rankNew Contributor
      3 years ago

      OK, it was the Firewall-Setup. There was an incomplete setting. I add now both directions. Now it works fine.

      Thanks and best regards
