Quartus Logic Gate

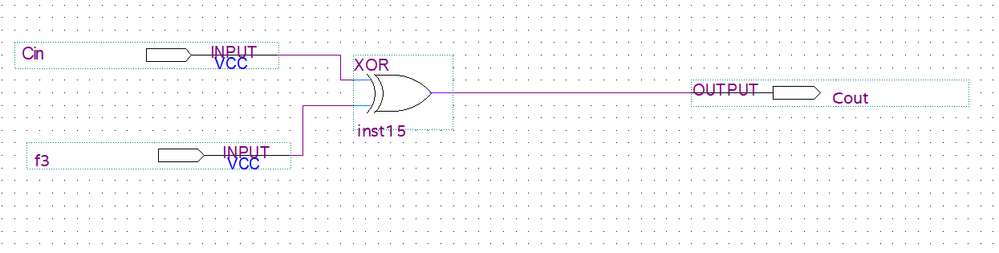

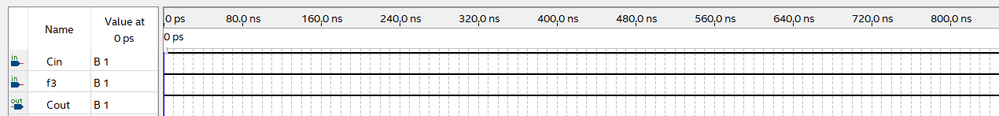

Hello, I have been trying to set up a XOR gate in a project, but after giving the gate two 1 inputs, it returns a 1. Could anyone help me figure this out?

1 Reply

  • SyafieqS's avatar
    SyafieqS
    Icon for Super Contributor rankSuper Contributor
    5 years ago

    Hi Abeal,


    Could you attach your design file in .qar here for me to take a look at it. Also, mind to provide steps on how you getting the behavior?


    Thanks,

    Regards
