Power Analyzer Operating Conditions Used wrong VCCPGM

I'm not sure if this is the right place to report errors of Quartus. If not please move it to proper place:

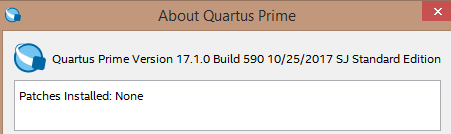

I found a minor bug in Quartus Prime 17.1.

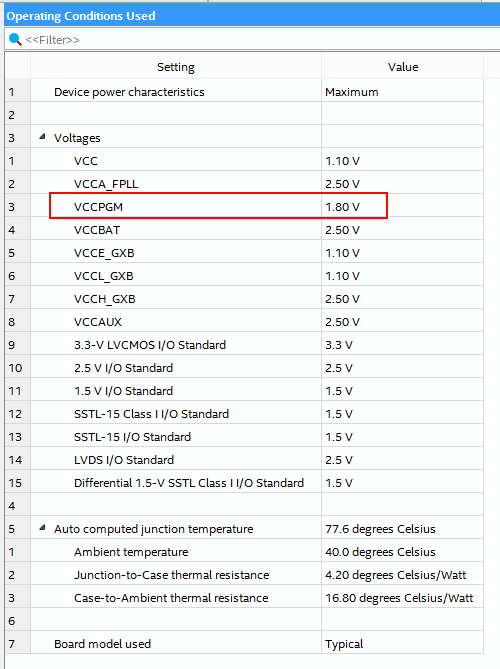

The Power Analyzer Operating Conditions used report shows a wrong VCCPGM.

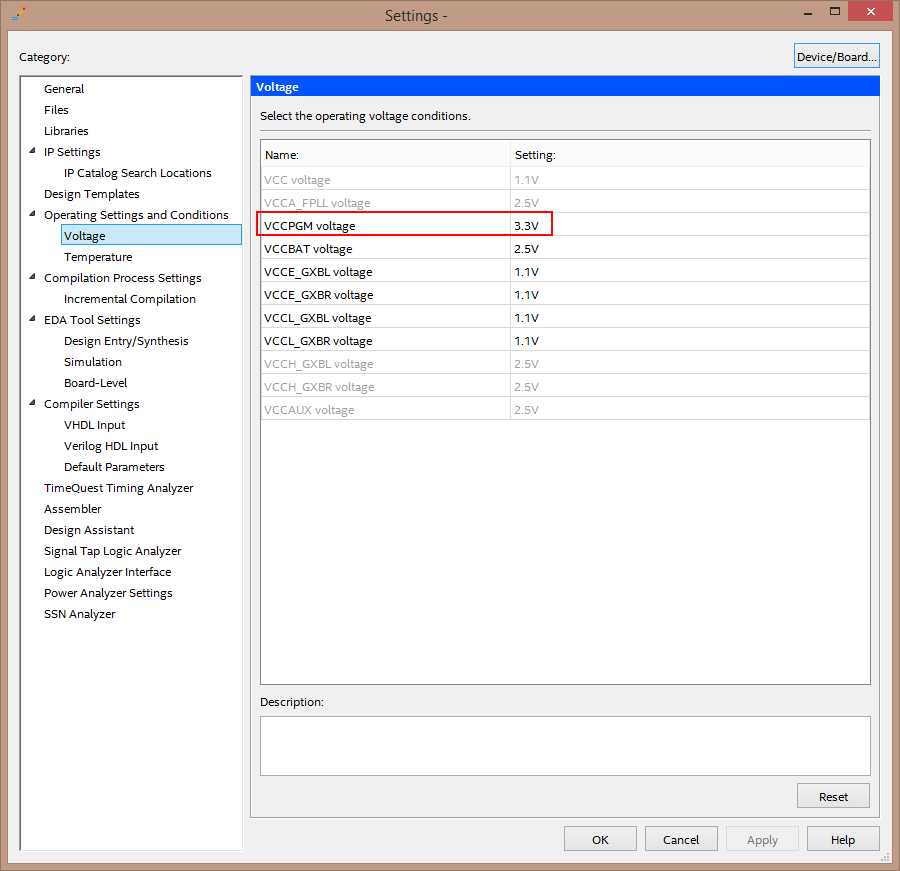

Configured in Settings is the following:

8 Replies

  • EGrub's avatar
    EGrub
    Icon for Occasional Contributor rankOccasional Contributor
    7 years ago

    Hm I don't know why the images are not shown in post. In editor they were shown :(

  • SreekumarR_G_Intel's avatar
    SreekumarR_G_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    7 years ago
    Hello Erich, Thank you for the questions and I apologize for delay in response Can you kindly let me know the device part number you referring too ? When I select the "5CSXFC6D6F31I7ES" Cyclone V family in quartus prime. I could see VCCPGM option such as (1.8V,2.5V,3.0V and 3.3V) as mentioned in the datasheet of Cyclone V family. Note : i am trying to find a way to attach the screen shot of drop down box in VCCPGM. Thank you , Regards, Sree
  • EGrub's avatar
    EGrub
    Icon for Occasional Contributor rankOccasional Contributor
    7 years ago

    Hi Sree!

    Thank you for your reply! sorry for my late reply, but I did not get an email notification that you wrote a reply! Please Intel improve the forum here a lot!! It is not suitable for such a big company!!

    Ok back to your question. I have the issue with the parts: 5CEBA5F23C7 and 5CEFA4F23C6

    It happens in Quartus 15.1 as well.

    I'll compile at the moment an Arria V project to see results there.

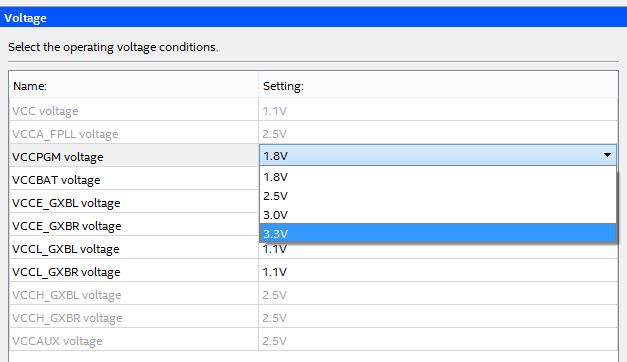

    By the way my drop down menu looks like:

    Regards,

    Erich

  • EGrub's avatar
    EGrub
    Icon for Occasional Contributor rankOccasional Contributor
    7 years ago

    Again it did not show the image, again please improve the forum!!!

    Regards,

    Erich

    • SreekumarR_G_Intel's avatar
      SreekumarR_G_Intel
      Icon for Frequent Contributor rankFrequent Contributor
      7 years ago

      Hello Erich,

      Sorry about the forum , But would it possible to change the VCCPGM in the tool according to your design ?

      from the drop down box i think yes .

      Thank you ,

      regards,

      Sree

  • EGrub's avatar
    EGrub
    Icon for Occasional Contributor rankOccasional Contributor
    7 years ago

    Hi Sree!

    As I wrote in my first Message, I set it under "Operating Settings and Conditions" -> "Voltage" to 3.3V but in Power Analyzer Report it is always 1.8V

    Regards,

    Erich

  • EGrub's avatar
    EGrub
    Icon for Occasional Contributor rankOccasional Contributor
    7 years ago

    By the way same issue for an 5AGXMB1G6F31C6.

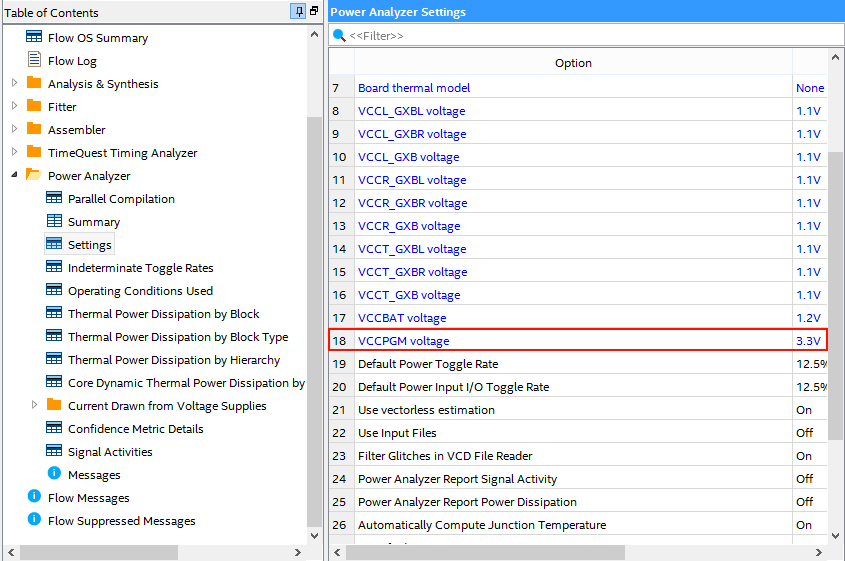

    Look here the setting from the Power Analyzer report:

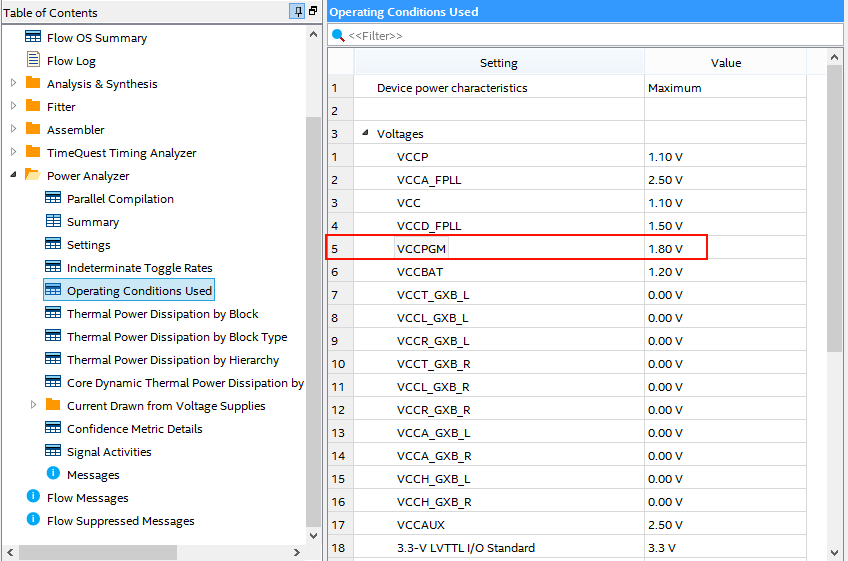

    And here the reported Operating Conditions Used:

    Clearly a bug!

    Regards,

    Erich

  • SreekumarR_G_Intel's avatar
    SreekumarR_G_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    7 years ago
    Sure Erich, Thank you much for the input, Let me talk to software team and come back.. Thank you, regards, Sree
