On chip ADC hangs up in 10M50DAF256I76

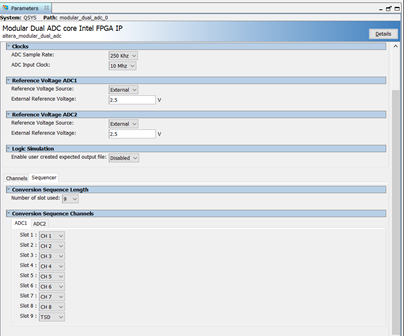

We are using the part 10M50DAF256I76 in one of our designs. In this design we are using the available on chip modular dual ADC. The interface for the ADC is generated inside QSYS with the following ...
sstrell's avatar
sstrell
Icon for Super Contributor rankSuper Contributor
4 years ago

Are you saying it's stuck when you're in continuous ADC conversion mode? What mode are you using or are you just setting the run bit (overriding the mode option)?

  • sagarsonavaneBH's avatar
    sagarsonavaneBH
    Icon for New Contributor rankNew Contributor
    4 years ago
    We are using single cycle conversion mode. We setting bit 0 and bit 1 of ADC command register to 1.
    • sstrell's avatar
      sstrell
      Icon for Super Contributor rankSuper Contributor
      4 years ago

      If you're setting bit 0 to 1 (the run bit), as stated in that table, that overrides the single cycle mode. If you want single cycle, the register should be set to 0x2 (run bit set to 0).
