I got a question about timing analysis, for the input delay of source synchronous interface

Hi all, I got a question about timing analysis, for the input delay of source synchronous interface, there are two ways in the manual , one is using external parameter, one is using FPGA requirement...
sstrell's avatar
sstrell
Icon for Super Contributor rankSuper Contributor
6 years ago

The calculated values between the two methods should not be so wildly different. What information do you have and what are your calculations?

#iwork4intel

LEric4's avatar
LEric4
Icon for New Contributor rankNew Contributor
6 years ago

hi sstrell ,thanks for your reply. In my design, take the input max delay as example,

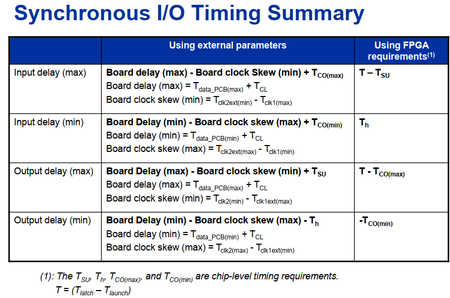

by using the external parameters, input max delay = Board delay -Board clock Skew + Tco = 1ns,

by using FPGA requirement, input max delay = T -Tsu = 15.626 -2.5 = 13.125ns, CLK_Freq=64M, Tsu=2.5ns.

So by using different way, the results were very different, Is my calculation way not correct?
