How to pick off a single bit from LPM Counter in schematic block?

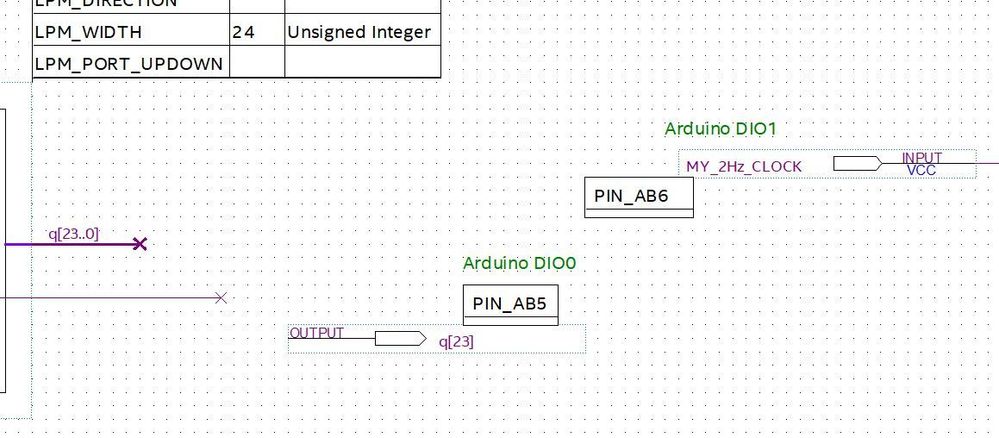

I'm really new to Quartus Prime and the DE10-Lite so I appreciate your basic help. I'm using the LPM Counter to divide down to about a 2 Hz clock and then sending that to an output pin, through a jumper wire plugged into the DE10-Lite board, and back to an input. See logic in my attached image. Is there an easy way to avoid the external jumper and directly connect my divided-down clock signal to other logic in the schematic block? Thanks in advance!
3 Replies
- JKobl1
New Contributor

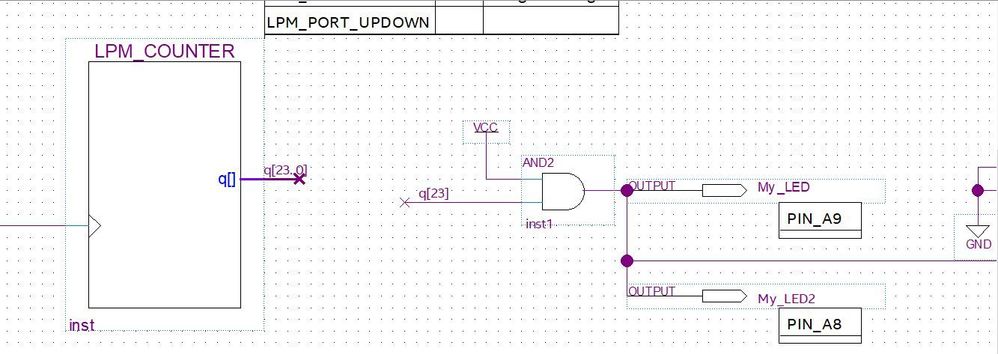

Well, that was incredibly easy to solve! I just named the bus q[23] as shown in this new figure and it works great with no jumper.
