New ContributorWhen I run "get_service_paths master" and "get_service_paths jtag_debug" in the Quartus system console but it yields an empty string. When I open the Quartus Prime Programmer and hit "auto detect", my two JTAG ID's show up. Is there something that needs to be done for my jtag paths to show up in the system console?
Without the project design files, there's not much you can do.
Super ContributorThat system is empty. To use the master service type, you have to connect the host (master) interface to other components in the system. You're just exporting that interface. What's it connected to?
Also, of course, you have to regenerate the system, recompile your Quartus project, and re-program the device.
New ContributorSo to be clear, we received a board with the Altera chip on it which should have already been configured with the host (master) interface configured. After looking through the batch files we were given they only seem to establish the jtag connection but not upload any configurations to the chip. The fact that we aren't seeing the master service after the board is powered and the jtag connection is established means that we need to open the original project used to compile the fpga in the first place and diagnose what the problem is. Is there anyway to do that without the original project? Thanks for your help so far, this has been immensely useful.
Regular ContributorWhat does: get_service_types return?
New ContributorI ran "get_service_types", then ran "get_service_paths" for each of the service types I found. Here's the results. I bolded the commands that yielded results and underlined the ones that didn't. Let me know if I can provide more information.
%get_service_types
alt_xcvr_custom
alt_xcvr_reconfig_aeq
alt_xcvr_reconfig_dfe
alt_xcvr_reconfig_eye_viewer
alt_xcvr_reconfig_mifwriter
bytestream dashboard
data_pattern_checker
data_pattern_generator
design
device
hard_prbs_checker
hard_prbs_generator
hssiconfig
io_bus issp
jtag_debug
loopback
marker
master
monitor
packet
plugin
processor
slave
sld
trace
trace_db
transceiver_channel_rx
transceiver_channel_tx
transceiver_debug_link
transceiver_reconfig_analog
% get_service_paths alt_xcvr_custom
% get_service_paths alt_xcvr_reconfig_aeq
% get_service_paths alt_xcvr_reconfig_dfe
% get_service_paths alt_xcvr_reconfig_eye_viewer
% get_service_paths alt_xcvr_reconfig_mifwriter
% get_service_paths bytestream
% get_service_paths dashboard
% get_service_paths data_pattern_checker
% get_service_paths data_pattern_generator
% get_service_paths design
% get_service_paths device
/devices/10M04D(A|C)@1#USB-0
% get_service_paths hard_prbs_checker
% get_service_paths hard_prbs_generator
% get_service_paths hssiconfig
% get_service_paths io_bus
% get_service_paths issp
% get_service_paths jtag_debug
% get_service_paths loopback
/devices/10M04D(A|C)@1#USB-0/(link)/JTAG
% get_service_paths marker
/devices/10M04D(A|C)@1#USB-0
% get_service_paths master
% get_service_paths monitor
/design_instances/monitor
% get_service_paths packet
% get_service_paths plugin
/plugins/com.altera.systemconsole.busanalyzer.internal.BusAnalyzerPluginProvider
/plugins/com.altera.systemconsole.dashboard.internal.DashboardPluginProvider
/plugins/com.altera.systemconsole.designs.internal.DesignsPluginProvider
/plugins/com.altera.systemconsole.driver.internal.DriverPluginProvider
/plugins/com.altera.systemconsole.gdbserver.GdbServerPluginProvider
/plugins/com.altera.systemconsole.gui.desktop.DesktopPlugin
/plugins/com.altera.systemconsole.internal.plugin.jtag.JtagPluginProvider
/plugins/com.altera.systemconsole.internal.plugin.jtag.aji.AJIConnectionProvider
/plugins/com.altera.systemconsole.internal.plugin.memory.MemoryPluginProvider
/plugins/com.altera.systemconsole.issp.internal.ISSPPluginProvider
/plugins/com.altera.systemconsole.monitor.internal.MonitorPluginProvider
/plugins/com.altera.systemconsole.plugin.pli.PliDeviceProvider
/plugins/com.altera.systemconsole.scripting.UserScriptSupport
/plugins/com.altera.systemconsole.scripting.ui.ConsolePlugin
/plugins/com.altera.systemconsole.sldhubchannel.SldHubPluginProvider
/plugins/com.altera.systemconsole.tcpchannel.TCPChannelPluginProvider
/plugins/com.altera.systemconsole.toolkit.ToolkitPluginProvider
/plugins/com.altera.systemconsole.trace.drivers.TraceDriversPlugin
/plugins/com.altera.systemconsole.trace.gui.basic.TraceViewMenuPluginProvider
/plugins/com.altera.systemconsole.trace.manager.internal.TraceManagerPluginProvider
/plugins/com.altera.systemconsole.transceivers.internal.TransceiverPluginProvider
/plugins/com.altera.systemconsole.usb.USBConnectionProvider
% get_service_paths processor
% get_service_paths slave
% get_service_paths sld
% get_service_paths trace
% get_service_paths trace_db
% get_service_paths transceiver_channel_rx
% get_service_paths transceiver_channel_tx
% get_service_paths transceiver_debug_link
% get_service_paths transceiver_reconfig_analog
Super ContributorDoes your Platform Designer system design include the JTAG to Avalon bridge or some other bridging component (like a Nios processor)? Without that, you can't use those services.
New ContributorThat is an excellent question and my gut tells me no. We received the code from the development team with a batch file to download the fpga configuration to the altera chip. I'll look around to see if the project file is in there so I can add a bridge component to the design. Hopefully that'll fix the problem.

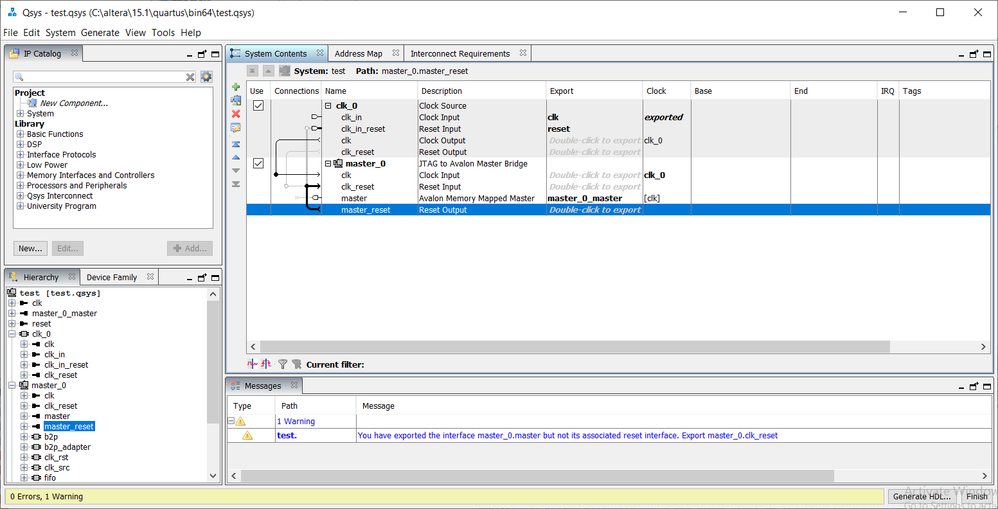

New ContributorI went into Qsys and added a JTAG to Avalon Master Bridge and saved the test.qsys file with my other quartus files, but when I went to
test "get_service_paths master" I still get nothing. Should I have my .qsys file saved somewhere else? Is there something else I'm missing?
Super ContributorDoes the answer from sstrell helps in your case?
It seems that your Platform Designer system is empty/incomplete as mentioned.
p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 9/10 survey.
New ContributorThis points me in the correct direction, but I'd like to confirm a path forward towards a solution before I mark anything as a solution yet.
Super ContributorWithout the project design files, there's not much you can do.
New ContributorThought so! Thanks for confirming that!
Super ContributorAs this thread has reached a closure, I will now transition this thread to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.
