Failed to generate sof with error: Unlicensed IP: "Nios II Processor(6AF7 00A2)"

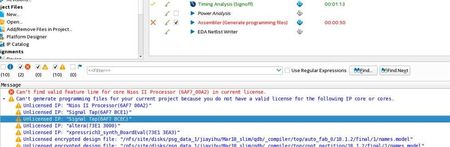

I failed to generate sof with Nios + PLDA rich3. But I can generate sof which only include Nios or PLDA. I use Quartus version 18.1.2, Error shows:
Ahmed_H_Intel1's avatar
Ahmed_H_Intel1
Icon for Frequent Contributor rankFrequent Contributor
6 years ago
Hi Jiayi Hu, That's a license issue. Please choose NIOS II/e to avoid this. Go to Qsys> NIOS II properties and chose the e core instead of the f core . Regards,
  • Jiayi_H_Intel's avatar
    Jiayi_H_Intel
    Icon for Occasional Contributor rankOccasional Contributor
    6 years ago

    I do have Nios license. And when running assembler, quartus will require twice with 1 successful and 1 unsuccessful.

    +---------------------------------------------------------------------------+

    ; Assembler Encrypted IP Cores Summary ;

    +------------------+-----------------------------------------+--------------+

    ; Vendor ; IP Core Name ; License Type ;

    +------------------+-----------------------------------------+--------------+

    ; Altera ; Nios II Processor (6AF7 00A2) ; Unlicensed ;

    ; Altera ; Nios II Processor (6AF7 00A2) ; Licensed ;

    ; Altera ; 16550 UART (6AF7 010C) ; Licensed ;

    ; Altera ; Signal Tap (6AF7 BCE1) ; Unlicensed ;

    ; Altera ; Signal Tap (6AF7 BCE1) ; Licensed ;

    ; Altera ; Signal Tap (6AF7 BCEC) ; Licensed ;

    ; PLD Applications ; altera (73E1 3000) ; Unlicensed ;

    ; PLD Applications ; xpressrich3_synth_BoardEval (73E1 3EA3) ; Unlicensed ;

    +------------------+-----------------------------------------+--------------+
