Error while creating a Memory Initialization file in Quartus

Hi there,

I created a text file and named it as .mif MIF file in the format as shown below

DEPTH = 256;
WIDTH = 16;
ADDRESS_RADIX = HEX;
DATA_RADIX = HEX;
CONTENT
BEGIN
0 : 400, 400, 1F4, 14D, 0FA, 0C8, 0A6, 08E, 07D, 06F, 064, 05A, 053, 04C, 047, 042, 03E, 03A, 037, 034, 032, 02F, 02D, 02B, 029, 028, 026, 025, 023, 022, 021, 020, 01F, 01E, 01D, 01C, 01B, 01B, 01A, 019, 019, 018, 017, 017, 016, 016, 015, 15, 014, 014, 014, 013, 013, 012, 012, 012, 011, 011, 011, 010, 010, 010, 010 00F, 00F, 00F, 00F, 00E, 00E, 00E, 00E, 00E, 00D, 00D, 00D, 00D, 00D, 00C, 00C, 00C, 00C, 00C, 00C, 00C, 00B, 00B, 00B, 00B, 00B, 00B, 00B, 00A, 00A, 00A, 00A, 00A, 00A, 00A, 00A, 00A, 00A, 009, 009, 009, 009, 009, 009, 009, 009, 009, 009, 009, 008, 008, 008, 008, 008, 008, 008, 008, 008, 008, 008, 008, 008, 008, 007, 007, 007, 007, 007, 007, 007, 007, 007, 007, 007, 007, 007, 007, 007, 007, 007, 006, 006, 006, 006, 006, 006, 006, 006, 006, 006, 006, 006, 006, 006, 006, 006, 006, 006, 006, 006, 006, 006, 006, 006, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 005, 004, 004, 004 ;

END ;

But am getting a error as Error (113000): Memory Initialization File or Hexadecimal (Intel-Format) File "radmem.mif" contains illegal syntax at line 9, Could anyone please help me out on how to resolve this issue what is the error it is showing

Thanks in advance

  • YEan's avatar
    YEan
    4 years ago

    Yup, you can use the format given online. However, the format you used was wrong, you should not include comma in the content. I'm able to add this .mif file after I had removed all of the comma.

5 Replies

  • YEan's avatar
    YEan
    Icon for Contributor rankContributor
    4 years ago

    Hi,

    You have stored too many data in an address. Here is an example:

    DEPTH = 32; -- The size of memory in words
WIDTH = 8; -- The size of data in bits
ADDRESS_RADIX = HEX; -- The radix for address values
DATA_RADIX = BIN; -- The radix for data values
CONTENT -- start of (address : data pairs)
BEGIN
00 : 00000000; -- memory address : data
01 : 00000001;
02 : 00000010;
    .
    .
    .
    END;

    Thanks and regards,

    Ean

  • Mathiazhagan's avatar
    Mathiazhagan
    Icon for Occasional Contributor rankOccasional Contributor
    4 years ago

    Hi Ean,

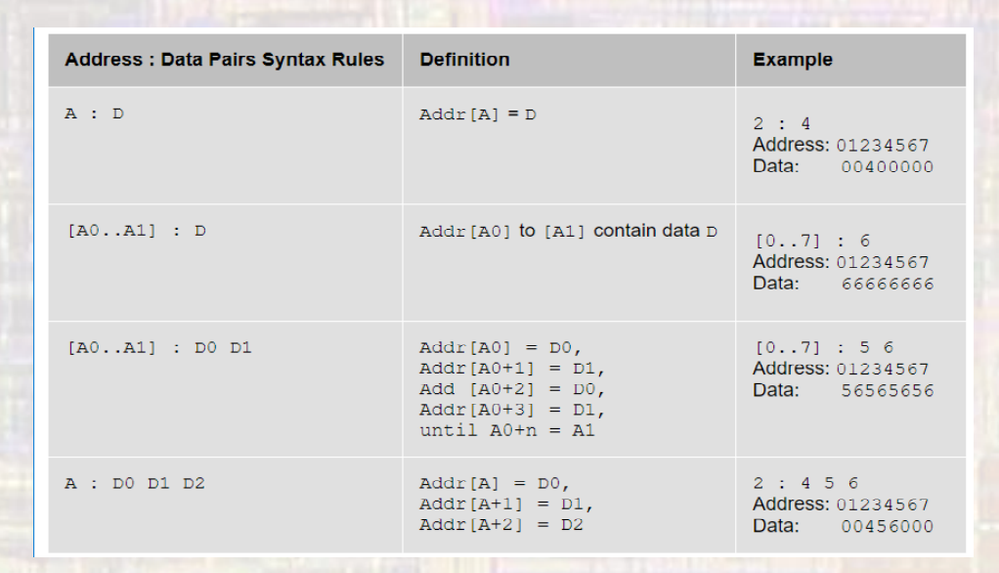

    Thanks for replying for all my queries, I would like to bring your kind notice that i was able to create the .MIF file for the same program mentioned above with 45 datas but i could not create a .mif file for the above mentioned code with more data's. Moreover i went through the addressing of the .MIF file i created the file in that format but could not create, herewith i attach the snap shot of the addressing that is given in online.

    • YEan's avatar
      YEan
      Icon for Contributor rankContributor
      4 years ago

      Yup, you can use the format given online. However, the format you used was wrong, you should not include comma in the content. I'm able to add this .mif file after I had removed all of the comma.
