Dual Compressed Image not showing on configuration mode drop down list for MAX10

Quartus Prime Version 18.1.0 Build 625 09/12/2018 SJ Lite Edition Another user reported this same issue, thread is locked:

JohnT_Altera
6 years ago
Hi, You are selecting the compact variant device which does not support dual compress image. Please change the device by following the device guideline in https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/hb/max-10/m10_overview.pdf Figure 1.

Icon for Super Contributor rank

Super Contributor

6 years ago

Which MAX 10 device are you targeting? The smallest ones don't support this.

#iwork4intel

Icon for Contributor rank

Contributor

6 years ago

Hi SStrell, I am targeting 04, 08, 16, 25, 50.

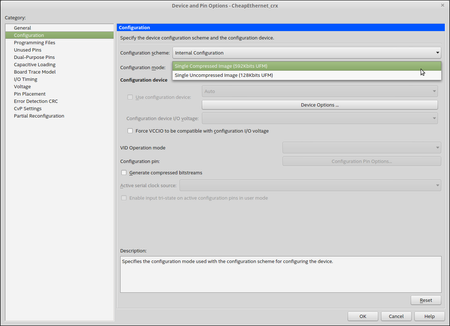

128K 592 shown image was 04.

04 to 50 must have dual configuration, changing to large devices just modify the size but don't show as dual configuration.

I am not using 02 I know is a single image by design.

Also 02 has different pinout from 04-25 and also annoying 40 50 have different pinout so cannot migrate between full family.

screenshot for sc50 dual boot and Altera flash Ipcore loaded.

Attached full project, has both single image and PLL configuration issue.
